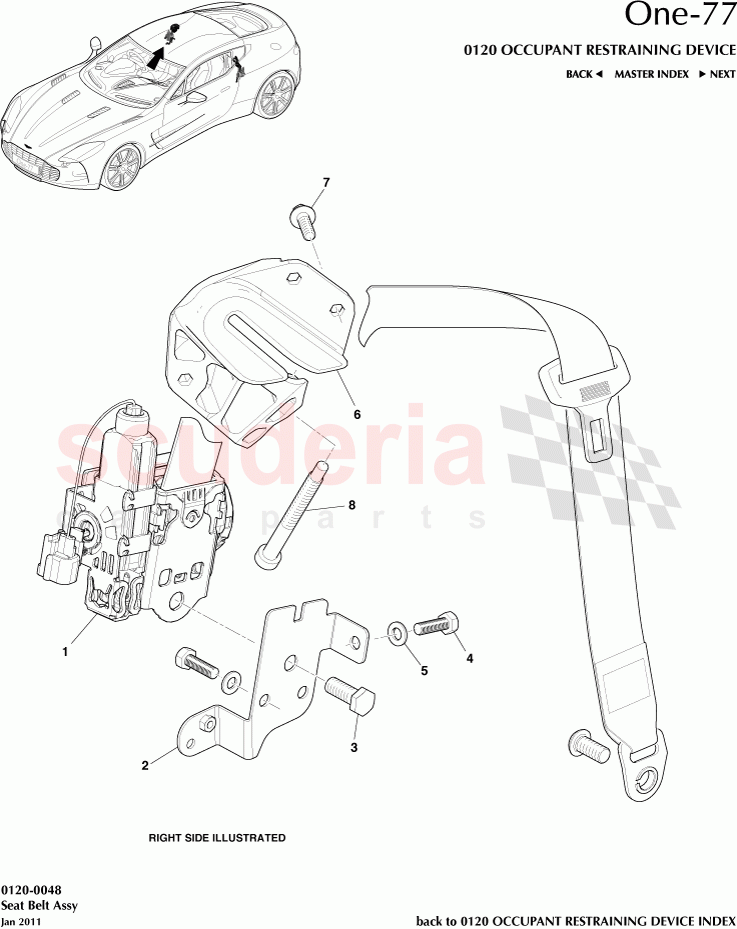

Seat Belt Assembly of Aston Martin Aston Martin One-77

Aston Martin One-77 - Seat Belt Assembly

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

사진	부품 번호	설명	가격 (개당)	재고
	6G33611B71BBW	SEATBELT & RETRACTOR AST FRT DRIVER RHD (FLINT)	$1,087.57	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	12023091205AE	Bracket, Seat Belt Retractor RH	$141.87	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	문의하기	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	$1.28	IN

사진	부품 번호	설명	가격 (개당)	재고
	12023091015AD	D-Ring, Seatbelt RH	$2,135.75	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	$0.73	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	703120	Screw M8-1.25-90 Hex Skt Hd Shoulder	$23.95	IN

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
-	6G33611B70BCW	Seatbelt Retractor assy, LHD, Driver's	6G33611B70BCW Seatbelt Retractor assy, LHD, Driver's Flint	$1,120.19	1	TO
-	6G33611B69BCW	SEATBELT & RETRACTOR AST FRT PASSENGER RHD (FLINT)	6G33611B69BCW SEATBELT & RETRACTOR AST FRT PASSENGER RHD (FLINT) Flint	$1,123.44	1	TO
-	6G33611B68BBW	SEATBELT & RETRACTOR AST FRT PASSENGER LHD (FLINT) IN	6G33611B68BBW SEATBELT & RETRACTOR AST FRT PASSENGER LHD (FLINT) Flint IN	$1,120.19	1	IN
-	6G33611B71ABW	SEAT BELT ASSY DRIVER RHD (WARM CHARCOAL)	6G33611B71ABW SEAT BELT ASSY DRIVER RHD (WARM CHARCOAL) Warm Charcoal	$1,120.19	1	TO
-	6G33611B70ACW	FRONT SEATBELT ASSY DRIVER LHD (WARM CHARCOAL)	6G33611B70ACW FRONT SEATBELT ASSY DRIVER LHD (WARM CHARCOAL) Warm Charcoal	$1,120.19	1	TO
-	6G33611B69ACW	FRONT SEATBELT ASSY PASSENGER RHD (WARM CHARCOAL)	6G33611B69ACW FRONT SEATBELT ASSY PASSENGER RHD (WARM CHARCOAL) Warm Charcoal	$1,120.19	1	TO
-	6G33611B68ABW	FRONT SEATBELT ASSY PASSENGER LHD (WARM CHARCOAL)	6G33611B68ABW FRONT SEATBELT ASSY PASSENGER LHD (WARM CHARCOAL) Warm Charcoal	$1,120.19	1	TO
-	AY93611B71CAW	Seatbelt Retractor assy, RHD, Driver's	AY93611B71CAW Seatbelt Retractor assy, RHD, Driver's Silver	$1,120.19	1	TO
-	AY93611B70CAW	Seatbelt Retractor assy, LHD, Driver's	AY93611B70CAW Seatbelt Retractor assy, LHD, Driver's Silver	$1,120.19	1	TO
-	AY93611B69CAW	Seatbelt Retractor assy, RHD, Passenger's	AY93611B69CAW Seatbelt Retractor assy, RHD, Passenger's Silver	$1,120.19	1	TO
-	AY93611B68CAW	Seatbelt Retractor assy, LHD, Passenger's	AY93611B68CAW Seatbelt Retractor assy, LHD, Passenger's Silver	$1,120.19	1	TO
-	AY93611B71DAW	Seatbelt Retractor assy, RHD, Driver's	AY93611B71DAW Seatbelt Retractor assy, RHD, Driver's Blue	$1,120.19	1	TO
-	AY93611B70DAW	Seatbelt Retractor assy, LHD, Driver's	AY93611B70DAW Seatbelt Retractor assy, LHD, Driver's Blue	$1,120.19	1	TO
-	AY93611B69DAW	Seatbelt Retractor assy, RHD, Passenger's	AY93611B69DAW Seatbelt Retractor assy, RHD, Passenger's Blue	$1,120.19	1	TO
-	AY93611B68DAW	Seatbelt Retractor assy, LHD, Passenger's	AY93611B68DAW Seatbelt Retractor assy, LHD, Passenger's Blue	$1,120.19	1	TO
-	AY93611B71EAW	Seatbelt Retractor assy, RHD, Driver's	AY93611B71EAW Seatbelt Retractor assy, RHD, Driver's Red	$1,120.19	1	TO
-	AY93611B70EAW	Seatbelt Retractor assy, LHD, Driver's	AY93611B70EAW Seatbelt Retractor assy, LHD, Driver's Red	$1,120.19	1	TO
-	AY93611B69EAW	Seatbelt Retractor assy, RHD, Passenger's	AY93611B69EAW Seatbelt Retractor assy, RHD, Passenger's Red	$1,120.19	1	TO
-	AY93611B68EAW	Seatbelt Retractor assy, LHD, Passenger's	AY93611B68EAW Seatbelt Retractor assy, LHD, Passenger's Red	$1,120.19	1	TO
-	12023091204AD	Bracket, Seat Belt Retractor LH	12023091204AD Bracket, Seat Belt Retractor LH	$150.33	1	TO
-	12023091014AD	D-Ring, Seatbelt LH	12023091014AD D-Ring, Seatbelt LH	$2,135.75	1	TO
1	6G33611B71BBW	SEATBELT & RETRACTOR AST FRT DRIVER RHD (FLINT)	6G33611B71BBW SEATBELT & RETRACTOR AST FRT DRIVER RHD (FLINT) Flint	$1,087.57	1	TO
2	12023091205AE	Bracket, Seat Belt Retractor RH	12023091205AE Bracket, Seat Belt Retractor RH	$141.87	1	TO
3	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right	-	1	PE	문의하기
4	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE IN	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE IN	$1.28	6	IN
6	12023091015AD	D-Ring, Seatbelt RH	12023091015AD D-Ring, Seatbelt RH	$2,135.75	1	TO
7	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	703187 SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE D-Ring	$0.73	6	TO
8	703120	Screw M8-1.25-90 Hex Skt Hd Shoulder IN	703120 Screw M8-1.25-90 Hex Skt Hd Shoulder IN	$23.95	2	IN
