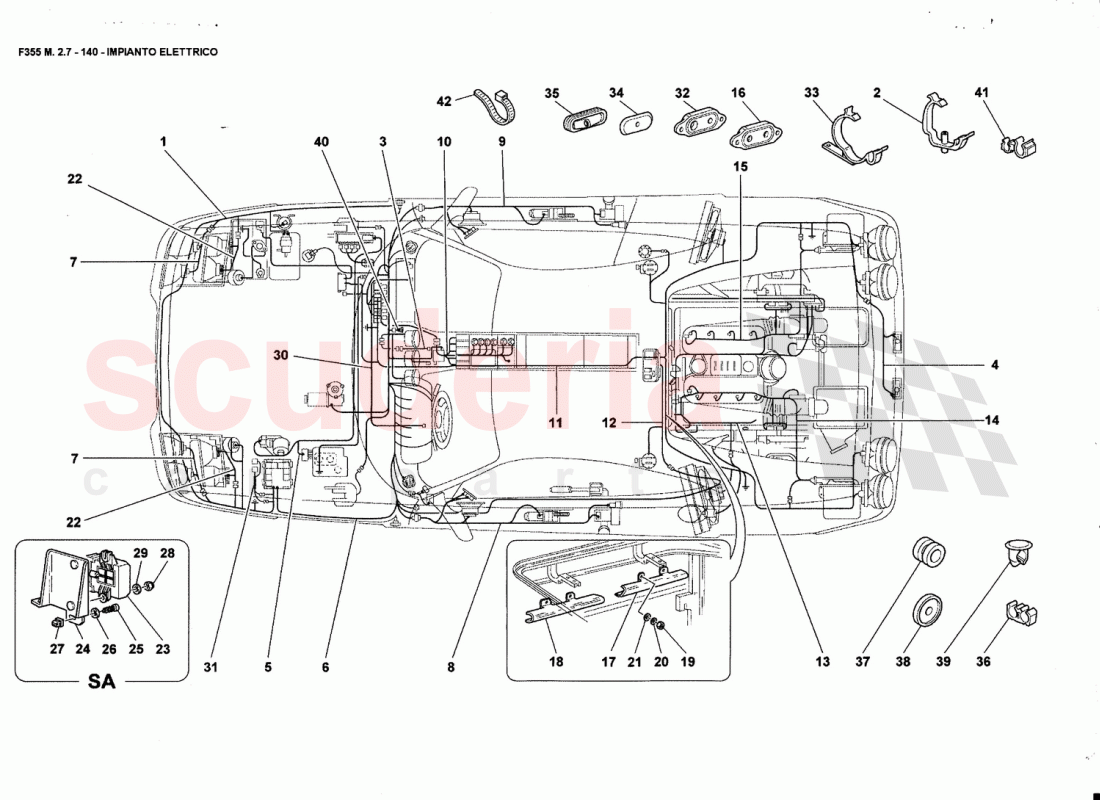

ELECTRICAL SYSTEM of Ferrari Ferrari 355 (2.7 Motronic)

Ferrari 355 (2.7 Motronic) - ELECTRICAL SYSTEM

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

사진	부품 번호	설명	가격 (개당)	재고
	152181	FRONT CABLES	$1,039.48	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	60991000	CLAMP	$1.00	IN

사진	부품 번호	설명	가격 (개당)	재고
	153142	CAR RADIO CABLES	$260.73	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153479	CABLES FOR NUMBER PLATE LIGHTS	$325.45	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	158042	CABLES FOR ANTISKID DEVICES CONNECTION	$3,489.51	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	162611	DASHBOARD CONNECTION CABLES	$1,540.17	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	160835	FRONT LIGHTS CONNECTING CABLES	$143.74	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	152185	DRIVER SIDE DOOR CONNECTING CABLES	$2,179.96	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	152186	PASSENGER SIDE DOOR CONNECTING CABLES	$243.29	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	152184	CABLES FOR TUNNEL-CONSOLE CONNECTION	$3,123.30	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	164553	REAR CABLES	$1,740.79	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	161477	ROOF LIGHT AND REAR WINDOW DEFROSTER CONNECTING CABLES	$34.09	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	152187	CONNECTION CABLES FOR MOTOR UTILITIES	$845.51	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	154758	GASKET	$13.58	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	160570	R.H. CABLES PROTECTION	$47.25	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	160571	L.H. CABLES PROTECTION	$46.62	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	134041	NUT	$1.44	IN

사진	부품 번호	설명	가격 (개당)	재고
	11197774	WASHER	$0.11	IN

사진	부품 번호	설명	가격 (개당)	재고
	10519424	WASHER	$0.07	IN

사진	부품 번호	설명	가격 (개당)	재고
	138914	FRONT HEADLIGHT CONNECTION CABLES	$67.61	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	146611	TACHOMETRIC SENSOR WITH BUZZER	$178.33	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	164366	SENSOR FIXING PLATE	$27.31	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	168133	Screw	$1.65	IN

사진	부품 번호	설명	가격 (개당)	재고
	12642807	WASHER	$0.29	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	14202782	BLOCK -Valid for SA-	$0.05	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	14039614	NUT	$0.35	IN

사진	부품 번호	설명	가격 (개당)	재고
	10519424	WASHER	$0.07	IN

사진	부품 번호	설명	가격 (개당)	재고
	163071	DIURNAL LIGHTS CONNECTING CABLES	$31.87	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	158277	GASKET	$14.71	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	160888	FASTENER CLIP	$4.36	IN

사진	부품 번호	설명	가격 (개당)	재고
	157793	GASKET	$6.38	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	138910	CABLE BUSHING	$4.18	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	145812	CLIP	$1.31	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	10396180	CABLE GROMMET	$3.16	IN

사진	부품 번호	설명	가격 (개당)	재고
	157606	CABLE BUSHING	$4.65	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	139628	CLIP	$0.09	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	154306	ANTI THEFT PREARRANGEMENT CONNECTING CABLES	문의하기	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	159569	CLIP	$0.96	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	10815787	RING CLAMP	$0.24	IN

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	-	165623	REAR CABLES	165623 REAR CABLES Valid for J Spider with / double fuel pump	$1,044.53	1	TO
	-	166529	REAR CABLES	166529 REAR CABLES Valid for J Spider with / single fuel pump	$2,305.81	1	TO
	-	164875	REAR CABLES	164875 REAR CABLES Valid for J with double fuel / pump / Not for Spider / Valid after stock exhaustion of 159786	$1,396.27	1	TO
	-	166522	REAR CABLES	166522 REAR CABLES Valid for J with single fuel / pump / Not for Spider	$1,396.27	1	TO
	-	166523	REAR CABLES	166523 REAR CABLES Valid for SA with single fuel / pump / Not for Spider	$1,861.69	1	TO
	-	159786	REAR CABLES	159786 REAR CABLES Valid for J with double fuel / pump / Valid till stock exhaustion	$1,380.76	1	TO
	-	166526	REAR CABLES	166526 REAR CABLES Valid for AUS with single fuel / pump / Not for Spider	$1,861.69	1	TO
	-	168050	REAR CABLES	168050 REAR CABLES Valid for Spider AUS	$1,995.32	1	TO
	-	164893	REAR CABLES	164893 REAR CABLES Valid for SA with double fuel / pump / Not for Spider	-	1	PE	문의하기
	-	164546	REAR CABLES	164546 REAR CABLES Valid for USA Spider and CDN Spider / with double fuel pump	$2,094.42	1	TO
	-	166527	REAR CABLES	166527 REAR CABLES Valid for USA Spider and CDN Spider / with single fuel pump	$2,279.50	1	TO
	-	164846	REAR CABLES	164846 REAR CABLES Valid for AUS with double fuel / pump / Not for Spider	$1,784.14	1	TO
	-	164894	REAR CABLES	164894 REAR CABLES Valid for USA and CDN with / double fuel pump / Not for Spider	$1,411.78	1	TO
	-	166524	REAR CABLES	166524 REAR CABLES Valid for USA and CDN with / singlefuel pump / Not for Spider	$3,197.79	1	TO
	-	163785	REAR CABLES	163785 REAR CABLES Valid for Spider with double / fuel pump / Not for USA, CDN, AUS, SA and J	$2,249.58	1	TO
	-	166528	REAR CABLES	166528 REAR CABLES Valid for Spider with single fuel / pump / Not for USA, CDN, AUS, SA and J	$2,249.52	1	TO
	-	166525	REAR CABLES	166525 REAR CABLES Valid for cars with single fuel pump / Not for Spider / Not for USA, CDN, AUS, SA and J	$3,197.79	1	TO
	164553		REAR CABLES	from $1,740.79
- REAR CABLES $1,740.79 1 TO 11 REAR CABLES $1,740.79 1 TO
	-	164847	CABLES FOR TUNNEL-CONSOLE CONNECTION	164847 CABLES FOR TUNNEL-CONSOLE CONNECTION CONNECTION / Valid for AUS	$303.13	1	TO
	-	159787	CABLES FOR TUNNEL-CONSOLE CONNECTION	159787 CABLES FOR TUNNEL-CONSOLE CONNECTION CONNECTION / Valid for J	$1,440.99	1	TO
	-	159652	CABLES FOR TUNNEL-CONSOLE CONNECTION	159652 CABLES FOR TUNNEL-CONSOLE CONNECTION CONNECTION / Valid for USA	$4,569.60	1	TO
	-	162930	CABLES FOR TUNNEL-CONSOLE CONNECTION	162930 CABLES FOR TUNNEL-CONSOLE CONNECTION CONNECTION / Valid for CDN	$347.76	1	TO
	-	163787	PASSENGER SIDE DOOR CONNECTING CABLES	163787 PASSENGER SIDE DOOR CONNECTING CABLES CONNECTING CABLES / Valid for Spider	$252.33	1	TO
	-	161643	FRONT LIGHTS CONNECTING CABLES	161643 FRONT LIGHTS CONNECTING CABLES Valid for USA and CDN / /	$171.68	2	TO
	-	163786	DRIVER SIDE DOOR CONNECTING CABLES	163786 DRIVER SIDE DOOR CONNECTING CABLES CONNECTING CABLES / Valid for Spider	$278.95	1	TO
	-	165622	DASHBOARD CONNECTION CABLES	165622 DASHBOARD CONNECTION CABLES Valid for J Spider	$1,532.12	1	TO
	-	164545	DASHBOARD CONNECTION CABLES	164545 DASHBOARD CONNECTION CABLES Valid for USA Spider	$4,663.40	1	TO
	-	165666	DASHBOARD CONNECTION CABLES	165666 DASHBOARD CONNECTION CABLES Valid for CDN Spider	$2,932.77	1	TO
	-	165716	DASHBOARD CONNECTION CABLES	165716 DASHBOARD CONNECTION CABLES Valid for GB Spider and ZA Spider / DASHBOARD CONNECTION CABLES / Valid for AUS Spider	$1,591.88	1	TO
	-	165008	DASHBOARD CONNECTION CABLES	165008 DASHBOARD CONNECTION CABLES Valid for J with AIR-BAG / Not for Spider	$8,187.40	1	TO
	-	163784	DASHBOARD CONNECTION CABLES	163784 DASHBOARD CONNECTION CABLES Valid for Spider / Not for USA, CDN, GB, ZA, / AUS and J	$5,421.00	1	TO
	-	162929	DASHBOARD CONNECTION CABLES	162929 DASHBOARD CONNECTION CABLES Valid for CDN / Not for Spider	$2,404.69	1	TO
	-	167559	DASHBOARD CONNECTION CABLES	167559 DASHBOARD CONNECTION CABLES Valid for GB and ZA with AIR-BAG / Not for Spider	-	1	PE	문의하기
	-	168014	DASHBOARD CONNECTION CABLES	168014 DASHBOARD CONNECTION CABLES Valid for AUS with AIR-BAG / Not for Spider	$3,050.98	1	TO
	-	165949	DASHBOARD CONNECTION CABLES	165949 DASHBOARD CONNECTION CABLES Valid for AIR-BAG cars / Not for USA, CDN, GB, ZA, AUS and J / Not for Spider	$2,679.49	1	TO
	-	159650	DASHBOARD CONNECTION CABLES	159650 DASHBOARD CONNECTION CABLES Valid for USA / Not for Spider	$2,599.50	1	TO
	-	160891	DASHBOARD CONNECTION CABLES	160891 DASHBOARD CONNECTION CABLES Valid for GB and ZA without AIR-BAG / Not for Spider	$2,637.41	1	TO
	-	164845	DASHBOARD CONNECTION CABLES	164845 DASHBOARD CONNECTION CABLES Valid for AUS without AIR-BAG / Not for Spider	$2,715.02	1	TO
	-	159785	DASHBOARD CONNECTION CABLES	159785 DASHBOARD CONNECTION CABLES Valid for J without AIR-BAG / Not for Spider	$2,354.15	1	TO
	-	160892	CABLES FOR ANTISKID DEVICES CONNECTION	160892 CABLES FOR ANTISKID DEVICES CONNECTION CONNECTION / Valid for GD	$1,003.19	1	TO
	-	159784	FRONT CABLES	159784 FRONT CABLES Valid for USA and J	$1,090.69	1	TO
	-	162928	FRONT CABLES	162928 FRONT CABLES Valid for CDN	$6,281.69	1	TO
	1	152181	FRONT CABLES	152181 FRONT CABLES Not for USA, CDN and J	$1,039.48	1	TO
	2	60991000	CLAMP IN	60991000 CLAMP IN	$1.00	2	IN
	3	153142	CAR RADIO CABLES	153142 CAR RADIO CABLES CABLES	$260.73	1	TO
	4	153479	CABLES FOR NUMBER PLATE LIGHTS	153479 CABLES FOR NUMBER PLATE LIGHTS	$325.45	1	TO
	5	158042	CABLES FOR ANTISKID DEVICES CONNECTION	158042 CABLES FOR ANTISKID DEVICES CONNECTION CONNECTION / Not for GD	$3,489.51	1	TO
	6	162611	DASHBOARD CONNECTION CABLES	162611 DASHBOARD CONNECTION CABLES Not for AIR-BAG cars / Not for GB, ZA, AUS and J / Not for Spider	$1,540.17	1	TO
	7	160835	FRONT LIGHTS CONNECTING CABLES	160835 FRONT LIGHTS CONNECTING CABLES Not for USA and CDN	$143.74	2	TO
	8	152185	DRIVER SIDE DOOR CONNECTING CABLES	152185 DRIVER SIDE DOOR CONNECTING CABLES CONNECTING CABLES / Not for Spider	$2,179.96	1	TO
	9	152186	PASSENGER SIDE DOOR CONNECTING CABLES	152186 PASSENGER SIDE DOOR CONNECTING CABLES CONNECTING CABLES / Not for Spider	$243.29	1	TO
	10	152184	CABLES FOR TUNNEL-CONSOLE CONNECTION	152184 CABLES FOR TUNNEL-CONSOLE CONNECTION CONNECTION / Not for USA, CDN, AUS and J	$3,123.30	1	TO
	12	161477	ROOF LIGHT AND REAR WINDOW DEFROSTER CONNECTING CABLES	161477 ROOF LIGHT AND REAR WINDOW DEFROSTER CONNECTING CABLES DEFROSTER CONNECTING CABLES / Not for Spider	$34.09	1	TO
	13	152187	CONNECTION CABLES FOR MOTOR UTILITIES	152187 CONNECTION CABLES FOR MOTOR UTILITIES MOTOR UTILITIES	$845.51	1	TO
	16	154758	GASKET	154758 GASKET	$13.58	1	TO
	17	160570	R.H. CABLES PROTECTION	160570 R.H. CABLES PROTECTION	$47.25	1	TO
	18	160571	L.H. CABLES PROTECTION	160571 L.H. CABLES PROTECTION	$46.62	1	TO
	19	134041	NUT IN	134041 NUT IN	$1.44	4	IN
	20	11197774	WASHER IN	11197774 WASHER IN	$0.11 MSRP: ~~0.30~~ (63.3% off)	4	IN
	10519424		WASHER	from $0.07 MSRP: ~~0.25~~ (72% off)
21 WASHER IN $0.07 MSRP: ~~0.25~~ (72% off) 4 IN 29 WASHER IN $0.07 MSRP: ~~0.25~~ (72% off) 2 IN
	22	138914	FRONT HEADLIGHT CONNECTION CABLES	138914 FRONT HEADLIGHT CONNECTION CABLES Valid for USA and CDN	$67.61	2	TO
	23	146611	TACHOMETRIC SENSOR WITH BUZZER	146611 TACHOMETRIC SENSOR WITH BUZZER BUZZER / Valid for SA	$178.33	1	TO
	24	164366	SENSOR FIXING PLATE	164366 SENSOR FIXING PLATE Valid for SA	$27.31	1	TO
	25	168133	Screw IN	168133 Screw Valid for SA IN	$1.65	2	IN
	26	12642807	WASHER	12642807 WASHER Valid for SA	$0.29	2	TO
	27	14202782	BLOCK -Valid for SA-	14202782 BLOCK -Valid for SA- Valid for SA	$0.05 MSRP: ~~0.25~~ (80% off)	2	TO
	28	14039614	NUT IN	14039614 NUT Valid for SA IN	$0.35	2	IN
	31	163071	DIURNAL LIGHTS CONNECTING CABLES	163071 DIURNAL LIGHTS CONNECTING CABLES CABLES / Valid for CDN	$31.87	1	TO
	32	158277	GASKET	158277 GASKET	$14.71	1	TO
	33	160888	FASTENER CLIP IN	160888 FASTENER CLIP IN	$4.36	1	IN
	34	157793	GASKET	157793 GASKET	$6.38	1	TO
	35	138910	CABLE BUSHING	138910 CABLE BUSHING	$4.18	2	TO
	36	145812	CLIP	145812 CLIP	$1.31	4	TO
	37	10396180	CABLE GROMMET IN	10396180 CABLE GROMMET IN	$3.16	2	IN
	38	157606	CABLE BUSHING	157606 CABLE BUSHING	$4.65	2	TO
	39	139628	CLIP	139628 CLIP	$0.09	2	TO
	40	154306	ANTI THEFT PREARRANGEMENT CONNECTING CABLES	154306 ANTI THEFT PREARRANGEMENT CONNECTING CABLES CONNECTING CABLES	-	1	PE	문의하기
	41	159569	CLIP	159569 CLIP	$0.96	2	TO
	42	10815787	RING CLAMP IN	10815787 RING CLAMP IN	$0.24	30	IN
