Dashboard And Tunnel Instruments

Ferrari 430 Spider

부품 찾기
모두 보기

Ferrari 430 Spider - DASHBOARD AND TUNNEL INSTRUMENTS

부품 분해도를 보고 원하는 부품을 찾으세요.:
  • 다이어그램을 드래그하여 위치를 변경할 수 있습니다.
  • 다이어그램을 스크롤하거나 핀치하거나 and buttons
  • 부품 다이어그램에서 핫스팟 1을 클릭하여 표에서 부품을 찾을 수 있습니다.
부품 키
IN
재고 있음
AS
곧 도착
TO
주문하기
PE
문의하세요

사진 부품 번호 설명 가격 (개당) 재고
243291 COMPL. INSTRUMENT PANEL $6,683.97 주문하기
230368 COMPL. INSTRUMENT PANEL $8,522.39 주문하기
212783 COMPL. INSTRUMENT PANEL $6,495.98 주문하기
...and 41 more part variants. See table on right for more details.
사진 부품 번호 설명 가격 (개당) 재고
68823200 BRACKET $2.89 주문하기
사진 부품 번호 설명 가격 (개당) 재고
68662700 FIXING PLATE $373.67 주문하기
68873300 FIXING PLATE $193.75 주문하기
사진 부품 번호 설명 가격 (개당) 재고
177902 INSTRUMENT FUNCTION BUTTON SET $184.31 주문하기
사진 부품 번호 설명 가격 (개당) 재고
167064 ALARM SYSTEM INDICATOR LED $44.03 주문하기
사진 부품 번호 설명 가격 (개당) 재고
180731 FUEL FILLER FLAP RELEASE BUTTON $163.97 주문하기
사진 부품 번호 설명 가격 (개당) 재고
69663900 FAKE TAP $16.29 주문하기
69663900 FAKE TAP $16.29 주문하기
180733 REAR FOG LIGHT CONTROL BUTTON $164.50 IN
사진 부품 번호 설명 가격 (개당) 재고
180665 MIRROR DEFROST BUTTON $169.55 주문하기
사진 부품 번호 설명 가격 (개당) 재고
180730 FRONT LID OPEN BUTTON $150.61 주문하기
사진 부품 번호 설명 가격 (개당) 재고
64692400 SUNLIGHT SENSOR $166.57 주문하기
사진 부품 번호 설명 가격 (개당) 재고
63934200 PASSENGER COMPARTMENT INTERNAL TEMPERATURE SENSOR $130.30 주문하기
사진 부품 번호 설명 가격 (개당) 재고
63994700 SENSOR SUPPORT WASHER $5.95 주문하기
사진 부품 번호 설명 가격 (개당) 재고
63994600 WASHER $5.02 주문하기
사진 부품 번호 설명 가격 (개당) 재고
15915977 SCREW $0.33 주문하기
사진 부품 번호 설명 가격 (개당) 재고
63994500 SENSOR GRILLE $12.67 IN
사진 부품 번호 설명 가격 (개당) 재고
68354900 AC CONTROLS $1,620.18 주문하기
69086900 AC CONTROLS $1,620.18 주문하기
사진 부품 번호 설명 가격 (개당) 재고
67970400 RH Power Window Switch $201.71 주문하기
사진 부품 번호 설명 가격 (개당) 재고
67970500 LH Power Window Switch $201.71 IN
사진 부품 번호 설명 가격 (개당) 재고
229350 EMERGENCY LIGHTS SWITCH $85.16 IN
229350 EMERGENCY LIGHTS SWITCH $85.16 IN
사진 부품 번호 설명 가격 (개당) 재고
208847 PARKING LIGHTS SWITCH $85.47 주문하기
사진 부품 번호 설명 가격 (개당) 재고
191046 EXTERNAL SIDE MIRRORS CONTROL SWITCH $579.11 도착
사진 부품 번호 설명 가격 (개당) 재고
65992200 SWITCH HOLDER LOWER FIXING PLATE $16.34 주문하기
사진 부품 번호 설명 가격 (개당) 재고
212735 GLOVE COMPARTMENT BUTTON $135.43 IN
사진 부품 번호 설명 가격 (개당) 재고
215406 12 V SOCKET $53.61 도착
사진 부품 번호 설명 가격 (개당) 재고
180709 HARD TOP OPEN BUTTON $169.55 IN
사진 부품 번호 설명 가격 (개당) 재고
183707 REAR GLOVE COMPARTMENT BUTTON $169.55 주문하기
사진 부품 번호 설명 가격 (개당) 재고
198834 BUTTONS $413.59 주문하기
사진 부품 번호 설명 가격 (개당) 재고
86552700 FRONT LICENSE PLATE MOUNT $314.74 주문하기
사진 부품 번호 설명 가격 (개당) 재고
214559 PARKING SENSOR DISABLE BUTTON $189.73 주문하기
사진 부품 번호 설명 가격 (개당) 재고
230999 iPod ADAPTER BOX $579.65 주문하기
사진 부품 번호 설명 가격 (개당) 재고
232786 FOAM $7.27 주문하기
사진 부품 번호 설명 가격 (개당) 재고
MC43254 CLAMP 문의하기 주문하기
MC43254 CLAMP 문의하기 주문하기
사진 부품 번호 설명 가격 (개당) 재고
236632 BOSE HI-FI SWITCH $77.54 주문하기
사진 부품 번호 설명 가격 (개당) 재고
11566227 SCREW $1.82 IN
사진 부품 번호 설명 가격 (개당) 재고
14304424 SCREW $0.22 IN
사진 부품 번호 설명 가격 (개당) 재고
12604178 Washer 문의하기 IN
사진 부품 번호 설명 가격 (개당) 재고
12638178 WASHER $0.16 IN

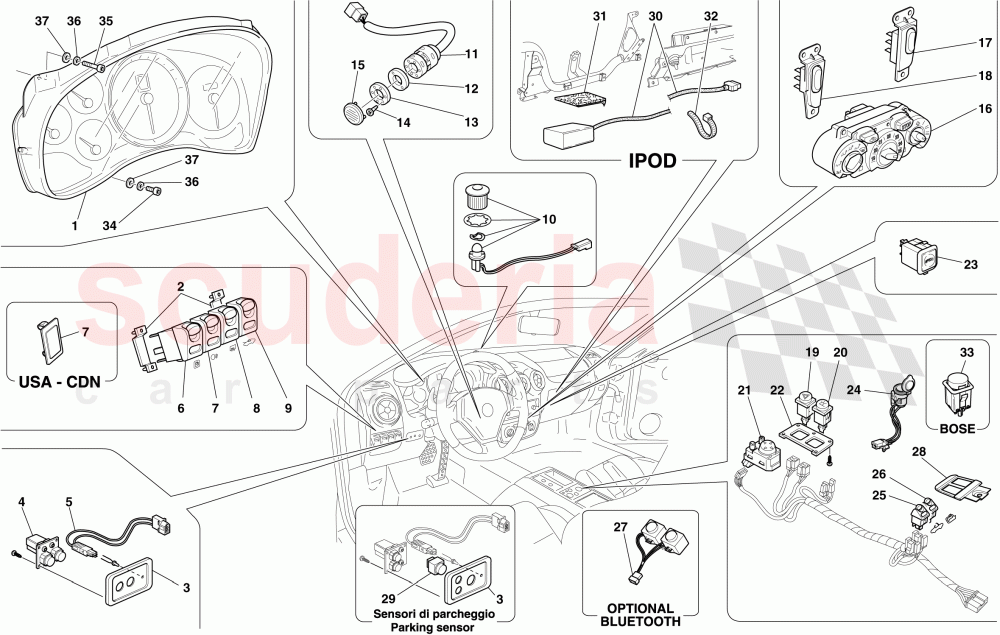

DASHBOARD AND TUNNEL INSTRUMENTS of Ferrari Ferrari 430 Spider 다이어그램 탭하여 확대
# 부품 세부 정보 가격
(각)		 수량
다이어그램		 키 에 추가
장바구니
1 243291
COMPL. INSTRUMENT PANEL
Red dial face; Optional; Carbon; Applicable for vehicles with system in miles; Not applicable for sound kit; Applicable for UK; Applicable from Ass. No. 75817 		$6,683.97 1
TO
1 230368
COMPL. INSTRUMENT PANEL
Red dial face; Optional; Carbon; Applicable for vehicles with system in miles; Not applicable for sound kit; Applicable for UK; Applicable from Ass. No. 66380 up to Ass. No. 75816 		$8,522.39 1
TO
1 212783
COMPL. INSTRUMENT PANEL
Red dial face; Optional; Carbon; Applicable for vehicles with system in miles; Applicable for UK; Applicable up to Ass. No. 61615 		$6,495.98 1
TO

239461

COMPL. INSTRUMENT PANEL

from $5,596.50

1 243286
COMPL. INSTRUMENT PANEL
Red dial face; Standard; Applicable for vehicles with system in miles; Not applicable for sound kit; Applicable for UK; Applicable from Ass. No. 75817 		$7,534.06 1
TO

230366

COMPL. INSTRUMENT PANEL

from $7,300.39

1 212211
COMPL. INSTRUMENT PANEL
Red dial face; Standard; Applicable for vehicles with system in miles; Applicable for UK; Applicable up to Ass. No. 61615 		$8,522.39 1
TO
1 212782
COMPL. INSTRUMENT PANEL
Red dial face; Optional; Carbon; Applicable for vehicles with system in miles; Applicable for USA; Applicable up to Ass. No. 61615 		$5,564.54 1
TO
1 222970
COMPL. INSTRUMENT PANEL
Red dial face; Optional; Carbon; Applicable for vehicles with system in miles; Applicable for USA; Applicable from Ass. No. 61616 up to Ass. No. 73780 		$8,709.05 1
TO

239459

COMPL. INSTRUMENT PANEL

from $9,522.51

1 212210
COMPL. INSTRUMENT PANEL
Red dial face; Standard; Applicable for vehicles with system in miles; Applicable for USA; Applicable up to Ass. No. 61615 		$5,136.91 1
TO
1 243289
COMPL. INSTRUMENT PANEL
Red dial face; Optional; Carbon; Applicable for vehicles with metric system; Not applicable for sound kit; Not for USA, UK; Applicable from Ass. No. 75817 		$6,552.93 1
TO

230364

COMPL. INSTRUMENT PANEL

from $7,300.39

1 212781
COMPL. INSTRUMENT PANEL
Red dial face; Optional; Carbon; Applicable for vehicles with metric system; Not for USA, UK; Applicable up to Ass. No. 61615 		$6,495.98 1
TO
1 243285
COMPL. INSTRUMENT PANEL
Red dial face; Standard; Applicable for vehicles with metric system; Not applicable for sound kit; Not for USA, UK; Applicable from Ass. No. 75817 		$5,284.63 1
TO

230362

COMPL. INSTRUMENT PANEL

from $5,284.63

1 266262
RH HEAD GASKET
Red dial face; Standard; Applicable for vehicles with metric system; Not for USA, UK; Applicable up to Ass. No. 61615
IN 		$144.79 1
IN

243288

COMPL. INSTRUMENT PANEL

from $6,552.93

1 222973
COMPL. INSTRUMENT PANEL
Yellow dial face; Optional; Carbon; Applicable for vehicles with system in miles; Applicable for sound kit; Applicable for UK; Applicable from Ass. No. 61616 		$6,586.74 1
TO
1 243284
COMPL. INSTRUMENT PANEL
Yellow dial face; Standard; Applicable for vehicles with system in miles; Not applicable for sound kit; Applicable for UK; Applicable from Ass. No. 75817 		$4,902.96 1
TO
1 212780
COMPL. INSTRUMENT PANEL
Yellow dial face; Optional; Carbon; Applicable for vehicles with system in miles; Applicable for UK; Applicable up to Ass. No. 61615 		$8,143.13 1
TO

230365

COMPL. INSTRUMENT PANEL

from $7,300.39

239460

COMPL. INSTRUMENT PANEL

from $5,596.50

1 208676
COMPL. INSTRUMENT PANEL
Yellow dial face; Standard; Applicable for vehicles with system in miles; Applicable for UK; Applicable up to Ass. No. 61615 		$5,611.43 1
TO

239458

COMPL. INSTRUMENT PANEL

from $10,379.53

1 243287
COMPL. INSTRUMENT PANEL
Yellow dial face; Optional; Carbon; Applicable for vehicles with metric system; Not applicable for sound kit; Not for USA, UK; Applicable from Ass. No. 75817 		$6,552.93 1
TO
1 208675
COMPL. INSTRUMENT PANEL
Yellow dial face; Standard; Applicable for vehicles with system in miles; Applicable for USA; Applicable up to Ass. No. 61615 		$4,712.56 1
TO

230363

COMPL. INSTRUMENT PANEL

from $6,847.47

1 212778
COMPL. INSTRUMENT PANEL
Yellow dial face; Optional; Carbon; Applicable for vehicles with metric system; Not for USA, UK; Applicable up to Ass. No. 61615 		$8,143.13 1
TO
1 243283
COMPL. INSTRUMENT PANEL
Yellow dial face; Standard; Applicable for vehicles with metric system; Not applicable for sound kit; Not for USA, UK; Applicable from Ass. No. 75817; Applicable after depletion of 230361 		$5,284.63 1
TO

230361

COMPL. INSTRUMENT PANEL

from $5,284.63

1 192538
COMPL. INSTRUMENT PANEL
Yellow dial face; Standard; Applicable for vehicles with metric system; Not for USA, UK; Applicable up to Ass. No. 61615 		$5,344.42 1
TO
2 68823200
BRACKET 		$2.89 2
TO
3 68662700
FIXING PLATE 		$373.67 1
TO
3 68873300
FIXING PLATE
Parking sensors; Optional 		$193.75 1
TO
4 177902
INSTRUMENT FUNCTION BUTTON SET 		$184.31 (13.2% off) 1
TO
5 167064
ALARM SYSTEM INDICATOR LED 		$44.03 (52.2% off) 1
TO
6 180731
FUEL FILLER FLAP RELEASE BUTTON 		$163.97 (5.7% off) 1
TO

69663900

FAKE TAP

from $16.29

7 180733
REAR FOG LIGHT CONTROL BUTTON
Applicable for Korea; Not for USA, CDN
IN 		$164.50 1
IN
8 180665
MIRROR DEFROST BUTTON 		$169.55 1
TO
9 180730
FRONT LID OPEN BUTTON 		$150.61 1
TO
10 64692400
SUNLIGHT SENSOR 		$166.57 1
TO
11 63934200
PASSENGER COMPARTMENT INTERNAL TEMPERATURE SENSOR 		$130.30 1
TO
12 63994700
SENSOR SUPPORT WASHER 		$5.95 1
TO
13 63994600
WASHER 		$5.02 1
TO
14 15915977
SCREW 		$0.33 (45% off) 2
TO
15 63994500
SENSOR GRILLE
IN 		$12.67 1
IN
16 68354900
AC CONTROLS
With Centigrade scale 		$1,620.18 1
TO
16 69086900
AC CONTROLS
With Fahrenheit scale 		$1,620.18 1
TO
17 67970400
RH Power Window Switch 		$201.71 (5.4% off) 1
TO
18 67970500
LH Power Window Switch
IN 		$201.71 (5.4% off) 1
IN

229350

EMERGENCY LIGHTS SWITCH

from $85.16 (10.8% off)

20 208847
PARKING LIGHTS SWITCH 		$85.47 (8.9% off) 1
TO
21 191046
EXTERNAL SIDE MIRRORS CONTROL SWITCH
도착 		$579.11 (43.1% off) 1
AS
22 65992200
SWITCH HOLDER LOWER FIXING PLATE 		$16.34 1
TO

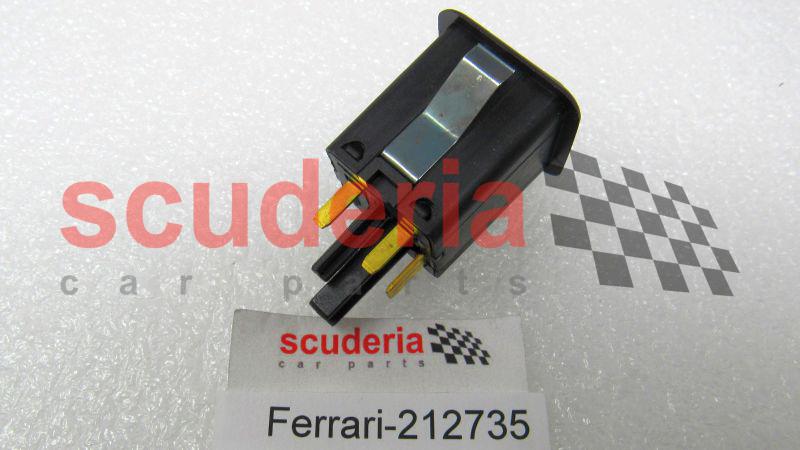

23 212735
GLOVE COMPARTMENT BUTTON
IN 		$135.43 (9.9% off) 1
IN
24 215406
12 V SOCKET
Not for vehicles with Optional Bluetooth
도착 		$53.61 (5.5% off) 1
AS
25 180709
HARD TOP OPEN BUTTON
IN 		$169.55 (5.4% off) 1
IN
26 183707
REAR GLOVE COMPARTMENT BUTTON 		$169.55 (5.4% off) 1
TO
27 198834
BUTTONS
Optional; Bluetooth 		$413.59 1
TO
28 86552700
FRONT LICENSE PLATE MOUNT 		$314.74 1
TO
29 214559
PARKING SENSOR DISABLE BUTTON
Parking sensors; Optional 		$189.73 1
TO
30 230999
iPod ADAPTER BOX
Optional; Version with provision for iPod 		$579.65 1
TO
31 232786
FOAM
Optional; Version with provision for iPod 		$7.27 1
TO

MC43254

CLAMP

 -
33 236632
BOSE HI-FI SWITCH
Applicable for high power Bose Hi-Fi 		$77.54 1
TO
34 11566227
SCREW
IN 		$1.82 2
IN
35 14304424
SCREW
IN 		$0.22 2
IN
36 12604178
Washer
IN 		- 4
IN
문의하기
37 12638178
WASHER
IN 		$0.16 (46.7% off) 4
IN
