INSTRUMENTS of Ferrari Ferrari 456 GT/GTA

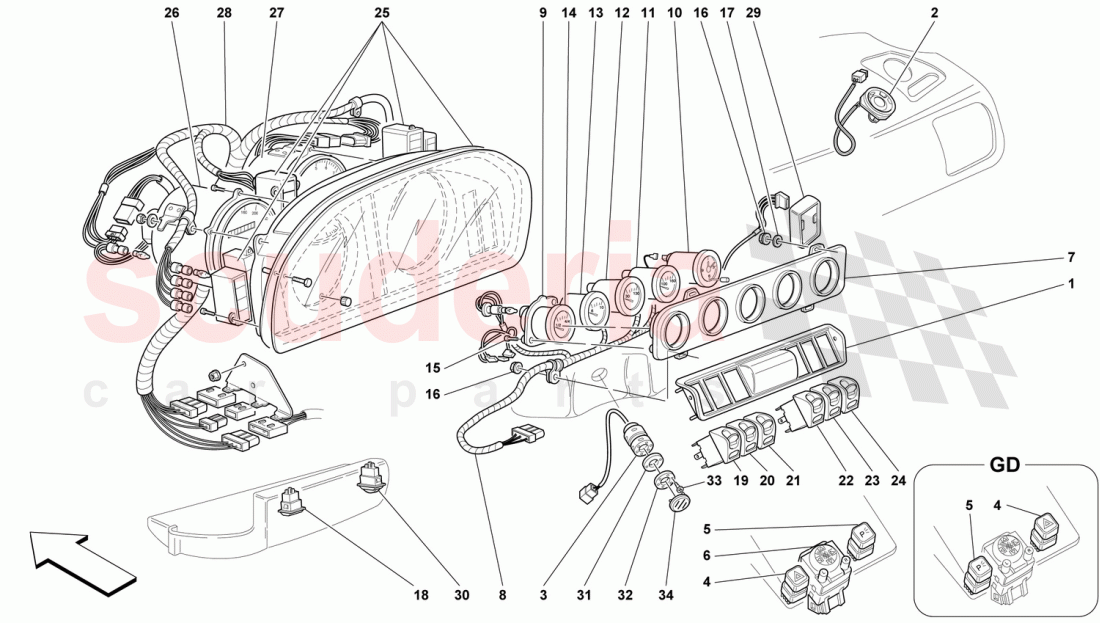

Ferrari 456 GT/GTA - INSTRUMENTS

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

사진	부품 번호	설명	가격 (개당)	재고
	63727400	SWITCH HOLDER PLATE	$18.84	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	157172	LOUD SPEAKER TWEETER	$31.13	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	63934200	PASSENGER COMPARTMENT INTERNAL TEMPERATURE SENSOR	$130.30	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153091	EMERGENCY LIGHTS SWITCH	$119.03	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153092	SWITCH FOR PARKING LIGHT	$74.41	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153114	SWITCH FOR OUTER REARVIEW MIRRORS CONTROL	$449.06	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	63194300	PLATE FOR INSTRUMENTS	$86.23	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	155584	CABLES FOR CENTRAL INSTRUMENTS CONNECTION	$215.95	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	63194400	SUPPORT -Not for GD-	$34.25	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153081	CLOCK	$185.68	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153077	OIL TEMPERATURE INDICATOR	$203.62	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153079	WATER TEMPERATURE INDICATOR	$240.13	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153078	OIL PRESSURE INDICATOR	$155.14	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	159994	FUEL LEVEL INDICATOR	$205.50	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	168133	Screw	$1.65	IN

사진	부품 번호	설명	가격 (개당)	재고
	10721911	NUT	$0.11	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	10519278	WASHER	$0.07	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	155903	ABS ESCLUSION SWITCH	$100.87	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153088	VARIABLE SHOCK ABSORBER CONTROL SWITCH	$182.33	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	171066	OPEN TRUNK HOOD BONNET SWITCH	$244.60	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	165241	SWITCH FOR REAR WINDOW DEFROSTER	$122.30	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	165251	FUEL DOOR CONTROL SWITCH	$122.30	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	165248	SWITCH FOR REAR ROOF LIGHT	$122.30	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	165250	OPEN TRUNK HOOD BONNET SWITCH	$122.30	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153074	INSTRUMENTAL BOARD WITH PILOT LIGHTS	$1,833.28	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153071	ELECTRONIC SPEEDOMETER	$703.59	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153072	ELECTRONIC REVOLUTION COUNTER	$577.67	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	161352	DASH BOARD INSTRUMENTS CONNECTION CABLES	$845.53	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	63488400	FUEL LEVEL INDICATOR CONTROL STATION	$149.84	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	153073	INSTRUMENTS LIGHT ADJUSTING POTENTIOMETER	$49.09	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	63994700	SENSOR SUPPORT WASHER	$5.95	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	63994600	WASHER	$5.02	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	15915977	SCREW	$0.33	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	63994500	SENSOR GRILLE	$12.67	IN

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	-	168552	DASH BOARD INSTRUMENTS CONNECTION CABLES	168552 DASH BOARD INSTRUMENTS CONNECTION CABLES CONNECTION CABLES / Valid from Ass. Nr. 21617 / Not for 456 GTA	-	1	PE	문의하기
	-	166886	DASH BOARD INSTRUMENTS CONNECTION CABLES	166886 DASH BOARD INSTRUMENTS CONNECTION CABLES CONNECTION CABLES / Valid for 456 GTA	$1,225.15	1	TO
	-	171250	ELECTRONIC REVOLUTION COUNTER	171250 ELECTRONIC REVOLUTION COUNTER COUNTER / Valid for MOTRONIC 5.2 / Not for 456 GTA	$582.69	1	TO
	-	168526	ELECTRONIC REVOLUTION COUNTER	168526 ELECTRONIC REVOLUTION COUNTER COUNTER / Valid for 456 GTA	$577.58	1	TO
	-	171243	ELECTRONIC SPEEDOMETER	171243 ELECTRONIC SPEEDOMETER Valid for MOTRONIC 5.2 / Not for USA and GB	$644.61	1	TO
	-	158037	ELECTRONIC SPEEDOMETER	158037 ELECTRONIC SPEEDOMETER Valid for MOTRONIC 2.7 / Valid for USA and GB	$752.51	1	TO
	-	171242	ELECTRONIC SPEEDOMETER	171242 ELECTRONIC SPEEDOMETER Valid for MOTRONIC 5.2 / Valid for USA and GB	$752.44	1	TO
	-	168528	INSTRUMENTAL BOARD WITH PILOT LIGHTS	168528 INSTRUMENTAL BOARD WITH PILOT LIGHTS PILOT LIGHTS / Valid for 456 GTA / Not for USA, CDN and GB	$1,517.77	1	TO
	-	166885	INSTRUMENTAL BOARD WITH PILOT LIGHTS	166885 INSTRUMENTAL BOARD WITH PILOT LIGHTS PILOT LIGHTS / Valid for 456 GTA / Valid for USA, CDN and GB	$1,517.77	1	TO
	-	165397	INSTRUMENTAL BOARD WITH PILOT LIGHTS	165397 INSTRUMENTAL BOARD WITH PILOT LIGHTS PILOT LIGHTS / Valid till Ass. Nr. 21616 / Valid for CDN 456GT and 456GTA	$1,627.67	1	TO
	-	168554	INSTRUMENTAL BOARD WITH PILOT LIGHTS	168554 INSTRUMENTAL BOARD WITH PILOT LIGHTS PILOT LIGHTS / Valid from Ass. Nr. 21617 / Not for 456 GTA / Not for USA and GB	$1,366.93	1	TO
	-	168551	INSTRUMENTAL BOARD WITH PILOT LIGHTS	168551 INSTRUMENTAL BOARD WITH PILOT LIGHTS PILOT LIGHTS / Valid from Ass. Nr. 21617 / Not for 456 GTA / Valid for USA and GB	$1,517.77	1	TO
	171056		VARIABLE SHOCK ABSORBER CONTROL SWITCH	from $153.48
- VARIABLE SHOCK ABSORBER CONTROL SWITCH $153.48 1 TO - VARIABLE SHOCK ABSORBER CONTROL SWITCH $153.48 1 TO
	-	163833	INSTRUMENTAL BOARD WITH PILOT LIGHTS	163833 INSTRUMENTAL BOARD WITH PILOT LIGHTS PILOT LIGHTS / Valid till Ass. Nr. 21616 / Not for 456 GTA / Valid for USA and GB	$26.74	1	TO
	171066		OPEN TRUNK HOOD BONNET SWITCH	from $244.60
- OPEN TRUNK HOOD BONNET SWITCH $244.60 1 TO 20 OPEN TRUNK HOOD BONNET SWITCH $244.60 1 TO
	153088		VARIABLE SHOCK ABSORBER CONTROL SWITCH	from $182.33
- VARIABLE SHOCK ABSORBER CONTROL SWITCH $182.33 1 TO 19 VARIABLE SHOCK ABSORBER CONTROL SWITCH $182.33 1 TO
	165242		REAR FOG LIGHT SWITCH	from $122.30
- REAR FOG LIGHT SWITCH $122.30 1 TO - REAR FOG LIGHT SWITCH $122.30 1 TO
	171055		REAR FOG LIGHT SWITCH	from $105.36
- REAR FOG LIGHT SWITCH $105.36 1 TO - REAR FOG LIGHT SWITCH $105.36 1 TO
	-	165249	FOG LIGHTS CONTROL SWITCH	165249 FOG LIGHTS CONTROL SWITCH Valid for J / Valid till car Ass. Nr. 22917	$122.30	1	TO
	-	171065	FOG LIGHTS CONTROL SWITCH	171065 FOG LIGHTS CONTROL SWITCH Valid for J / Valid from car Ass. Nr. 22918	$125.46	1	TO
	171054		SWITCH FOR REAR WINDOW DEFROSTER	from $119.85
- SWITCH FOR REAR WINDOW DEFROSTER $119.85 1 TO - SWITCH FOR REAR WINDOW DEFROSTER $119.85 1 TO
	171064		SWITCH FOR REAR ROOF LIGHT	from $125.46
- SWITCH FOR REAR ROOF LIGHT $125.46 1 TO - SWITCH FOR REAR ROOF LIGHT $125.46 1 TO
	171067		FUEL DOOR CONTROL SWITCH	from $125.46
- FUEL DOOR CONTROL SWITCH $125.46 1 TO - FUEL DOOR CONTROL SWITCH $125.46 1 TO
	165241		SWITCH FOR REAR WINDOW DEFROSTER	from $122.30 MSRP: ~~135.20~~ (9.5% off)
- SWITCH FOR REAR WINDOW DEFROSTER $122.30 MSRP: ~~135.20~~ (9.5% off) 1 TO 21 SWITCH FOR REAR WINDOW DEFROSTER $122.30 MSRP: ~~135.20~~ (9.5% off) 1 TO
	165251		FUEL DOOR CONTROL SWITCH	from $122.30
- FUEL DOOR CONTROL SWITCH $122.30 1 TO 22 FUEL DOOR CONTROL SWITCH $122.30 1 TO
	165248		SWITCH FOR REAR ROOF LIGHT	from $122.30
- SWITCH FOR REAR ROOF LIGHT $122.30 1 TO 23 SWITCH FOR REAR ROOF LIGHT $122.30 1 TO
	-	165252	EXTERNAL REAR MIRROR DEMISTER SWITCH	165252 EXTERNAL REAR MIRROR DEMISTER SWITCH DEMISTER SWITCH / Valid for USA and CDN / Valid till car Ass. Nr. 22917	$122.30	1	TO
	-	171068	EXTERNAL REAR MIRROR DEMISTER SWITCH	171068 EXTERNAL REAR MIRROR DEMISTER SWITCH DEMISTER SWITCH / Valid for USA and CDN / Valid from car Ass. Nr. 22918	$123.01	1	TO
	165250		OPEN TRUNK HOOD BONNET SWITCH	from $122.30
- OPEN TRUNK HOOD BONNET SWITCH $122.30 1 TO 24 OPEN TRUNK HOOD BONNET SWITCH $122.30 1 TO
	-	161418	FUEL LEVEL INDICATOR	161418 FUEL LEVEL INDICATOR Valid for ZA	$162.90	1	TO
	-	153080	FUEL LEVEL INDICATOR	153080 FUEL LEVEL INDICATOR Valid for SA	$203.62	1	TO
	-	158041	OIL PRESSURE INDICATOR	158041 OIL PRESSURE INDICATOR Valid for GB	$162.90	1	TO
	-	161417	OIL PRESSURE INDICATOR	161417 OIL PRESSURE INDICATOR Valid for AUS and ZA	$162.90	1	TO
	-	161411	FUEL LEVEL INDICATOR	161411 FUEL LEVEL INDICATOR Valid for GB and AUS	$162.90	1	TO
	-	158039	WATER TEMPERATURE INDICATOR	158039 WATER TEMPERATURE INDICATOR INDICATOR -Valid for GB	$320.85	1	TO
	-	161415	WATER TEMPERATURE INDICATOR	161415 WATER TEMPERATURE INDICATOR INDICATOR -Valid for AUS and ZA	$162.95 MSRP: ~~400.00~~ (59.3% off)	1	TO
	-	161414	OIL PRESSURE INDICATOR	161414 OIL PRESSURE INDICATOR Valid for USA	$187.28	1	TO
	-	161413	OIL TEMPERATURE INDICATOR	161413 OIL TEMPERATURE INDICATOR Valid for USA	$207.20	1	TO
	-	158040	OIL TEMPERATURE INDICATOR	158040 OIL TEMPERATURE INDICATOR Valid for GB	$320.85	1	TO
	-	161416	OIL TEMPERATURE INDICATOR	161416 OIL TEMPERATURE INDICATOR Valid for AUS e ZA	$162.95	1	TO
	-	161412	WATER TEMPERATURE INDICATOR	161412 WATER TEMPERATURE INDICATOR INDICATOR -Valid for USA	$162.95 MSRP: ~~169.44~~ (3.8% off)	1	TO
	-	64736500	SUPPORT -Valid for GD-	64736500 SUPPORT -Valid for GD-	$62.43	5	TO
	-	64736200	PLATE FOR INSTRUMENTS	64736200 PLATE FOR INSTRUMENTS Valid for GD	$110.96	1	TO
	1	63727400	SWITCH HOLDER PLATE	63727400 SWITCH HOLDER PLATE	$18.84	1	TO
	2	157172	LOUD SPEAKER TWEETER	157172 LOUD SPEAKER TWEETER	$31.13	2	TO
	3	63934200	PASSENGER COMPARTMENT INTERNAL TEMPERATURE SENSOR	63934200 PASSENGER COMPARTMENT INTERNAL TEMPERATURE SENSOR TEMPERATURE SENSOR	$130.30	1	TO
	4	153091	EMERGENCY LIGHTS SWITCH	153091 EMERGENCY LIGHTS SWITCH	$119.03	1	TO
	5	153092	SWITCH FOR PARKING LIGHT	153092 SWITCH FOR PARKING LIGHT	$74.41	1	TO
	6	153114	SWITCH FOR OUTER REARVIEW MIRRORS CONTROL	153114 SWITCH FOR OUTER REARVIEW MIRRORS CONTROL MIRRORS CONTROL	$449.06 MSRP: ~~555.93~~ (19.2% off)	1	TO
	7	63194300	PLATE FOR INSTRUMENTS	63194300 PLATE FOR INSTRUMENTS Not for GD	$86.23	1	TO
	8	155584	CABLES FOR CENTRAL INSTRUMENTS CONNECTION	155584 CABLES FOR CENTRAL INSTRUMENTS CONNECTION INSTRUMENTS CONNECTION	$215.95	1	TO
	9	63194400	SUPPORT -Not for GD-	63194400 SUPPORT -Not for GD-	$34.25	5	TO
	10	153081	CLOCK	153081 CLOCK	$185.68 MSRP: ~~365.00~~ (49.1% off)	1	TO
	11	153077	OIL TEMPERATURE INDICATOR	153077 OIL TEMPERATURE INDICATOR Not for USA and GD	$203.62	1	TO
	12	153079	WATER TEMPERATURE INDICATOR	153079 WATER TEMPERATURE INDICATOR INDICATOR -Not for USA and GD	$240.13	1	TO
	13	153078	OIL PRESSURE INDICATOR	153078 OIL PRESSURE INDICATOR Not for USA and GD	$155.14	1	TO
	14	159994	FUEL LEVEL INDICATOR	159994 FUEL LEVEL INDICATOR Not for GD and SA	$205.50 MSRP: ~~209.45~~ (1.9% off)	1	TO
	15	168133	Screw IN	168133 Screw IN	$1.65	10	IN
	16	10721911	NUT	10721911 NUT	$0.11	4	TO
	17	10519278	WASHER	10519278 WASHER	$0.07 MSRP: ~~0.50~~ (86% off)	4	TO
	18	155903	ABS ESCLUSION SWITCH	155903 ABS ESCLUSION SWITCH Not for USA, CDN and AUS	$100.87	1	TO
	25	153074	INSTRUMENTAL BOARD WITH PILOT LIGHTS	153074 INSTRUMENTAL BOARD WITH PILOT LIGHTS PILOT LIGHTS / Valid till Ass. Nr. 21616 / Not for 456 GTA / Not for USA, CDN and GB	$1,833.28	1	TO
	26	153071	ELECTRONIC SPEEDOMETER	153071 ELECTRONIC SPEEDOMETER Valid for MOTRONIC 2.7 / Not for USA and GB	$703.59	1	TO
	27	153072	ELECTRONIC REVOLUTION COUNTER	153072 ELECTRONIC REVOLUTION COUNTER COUNTER / Valid for MOTRONIC 2.7	$577.67	1	TO
	28	161352	DASH BOARD INSTRUMENTS CONNECTION CABLES	161352 DASH BOARD INSTRUMENTS CONNECTION CABLES CONNECTION CABLES / Valid till Ass. Nr. 21616 / Not for 456 GTA	$845.53	1	TO
	29	63488400	FUEL LEVEL INDICATOR CONTROL STATION	63488400 FUEL LEVEL INDICATOR CONTROL STATION CONTROL UNIT	$149.84	1	TO
	30	153073	INSTRUMENTS LIGHT ADJUSTING POTENTIOMETER	153073 INSTRUMENTS LIGHT ADJUSTING POTENTIOMETER POTENTIOMETER	$49.09 MSRP: ~~63.77~~ (23% off)	1	TO
	31	63994700	SENSOR SUPPORT WASHER	63994700 SENSOR SUPPORT WASHER	$5.95	1	TO
	32	63994600	WASHER	63994600 WASHER	$5.02	1	TO
	33	15915977	SCREW	15915977 SCREW	$0.33 MSRP: ~~0.60~~ (45% off)	2	TO
	34	63994500	SENSOR GRILLE IN	63994500 SENSOR GRILLE IN	$12.67	1	IN
