Name: FRONT BRAKE CALLIPERS
Rating: 4.1 (1 reviews)

모두 보기

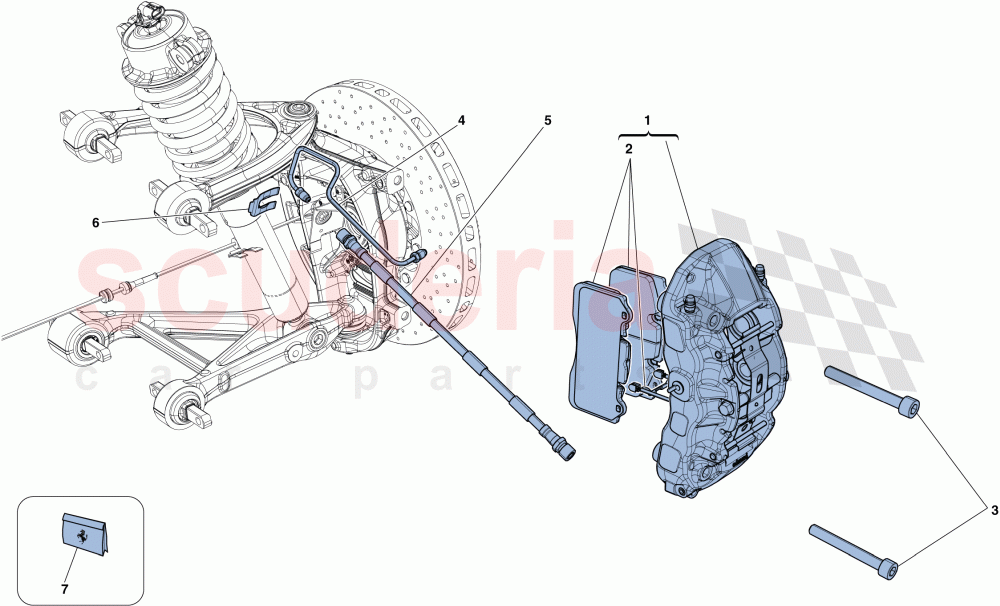

FRONT BRAKE CALLIPERS of Ferrari Ferrari California T

Ferrari California T - FRONT BRAKE CALLIPERS

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

사진	부품 번호	설명	가격 (개당)	재고
	302757	FRONT LH CALLIPER WITH PADS	$3,318.05	주문하기
	297300	FRONT LH CALLIPER WITH PADS	$3,318.05	주문하기
	297308	FRONT LH CALLIPER WITH PADS	$3,318.05	주문하기

...and 15 more part variants. See table on right for more details.

사진	부품 번호	설명	가격 (개당)	재고
	70003329	FRONT PAD SET WITH SPRING	$1,482.99	IN

사진	부품 번호	설명	가격 (개당)	재고
	195167	SCREW	$22.14	IN

사진	부품 번호	설명	가격 (개당)	재고
	274703	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	$62.56	주문하기
	274701	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	$62.56	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	977800	HOSE	$58.58	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	116374	CLIP	$3.53	IN

사진	부품 번호	설명	가격 (개당)	재고
	70004900	FRONT DUST GAITER KIT	$126.21	주문하기

다이어그램 탭하여 확대

#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키
1	302757	FRONT LH CALLIPER WITH PADS	302757 FRONT LH CALLIPER WITH PADS Blue	$3,318.05	1	TO
1	297300	FRONT LH CALLIPER WITH PADS	297300 FRONT LH CALLIPER WITH PADS Anodised Black	$3,318.05	1	TO
1	297308	FRONT LH CALLIPER WITH PADS	297308 FRONT LH CALLIPER WITH PADS Yellow	$3,318.05	1	TO
1	297310	FRONT LH CALLIPER WITH PADS	297310 FRONT LH CALLIPER WITH PADS Scuderia Red	$3,318.05	1	TO
1	297312	FRONT LH CALLIPER WITH PADS	297312 FRONT LH CALLIPER WITH PADS Dark grey	$3,318.05	1	TO
1	302755	FRONT LH CALLIPER WITH PADS	302755 FRONT LH CALLIPER WITH PADS Gold	$3,318.05	1	TO
1	297301	FRONT RH CALLIPER WITH PADS	297301 FRONT RH CALLIPER WITH PADS Anodised Black	$3,318.05	1	TO
1	297302	FRONT LH CALLIPER WITH PADS	297302 FRONT LH CALLIPER WITH PADS Black	$3,318.05	1	TO
1	297304	FRONT LH CALLIPER WITH PADS	297304 FRONT LH CALLIPER WITH PADS Red	$3,318.05	1	TO
1	297306	FRONT LH CALLIPER WITH PADS	297306 FRONT LH CALLIPER WITH PADS Silver	$3,318.05	1	TO
1	297309	FRONT RH CALLIPER WITH PADS	297309 FRONT RH CALLIPER WITH PADS Yellow	$3,318.05	1	TO
1	297311	FRONT RH CALLIPER WITH PADS	297311 FRONT RH CALLIPER WITH PADS Scuderia Red	$3,318.05	1	TO
1	297313	FRONT RH CALLIPER WITH PADS	297313 FRONT RH CALLIPER WITH PADS Dark grey	$3,318.05	1	TO
1	302756	FRONT RH CALLIPER WITH PADS	302756 FRONT RH CALLIPER WITH PADS Gold	$3,318.05	1	TO
1	302758	FRONT RH CALLIPER WITH PADS	302758 FRONT RH CALLIPER WITH PADS Blue	$3,318.05	1	TO
1	297303	FRONT RH CALLIPER WITH PADS	297303 FRONT RH CALLIPER WITH PADS Black	$3,318.05	1	TO
1	297305	FRONT RH CALLIPER WITH PADS	297305 FRONT RH CALLIPER WITH PADS Red	$3,318.05	1	TO
1	297307	FRONT RH CALLIPER WITH PADS	297307 FRONT RH CALLIPER WITH PADS Silver	$3,318.05	1	TO
2	70003329	FRONT PAD SET WITH SPRING IN	70003329 FRONT PAD SET WITH SPRING IN	$1,482.99 MSRP: ~~1,976.64~~ (25% off)	1	IN
3	195167	SCREW IN	195167 SCREW IN	$22.14	4	IN
4	274703	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	274703 COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	$62.56	1	TO
4	274701	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	274701 COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	$62.56	1	TO
5	977800	HOSE	977800 HOSE	$58.58	2	TO
6	116374	CLIP IN	116374 CLIP IN	$3.53	2	IN
7	70004900	FRONT DUST GAITER KIT	70004900 FRONT DUST GAITER KIT	$126.21	1	TO

Front Brake Callipers

Ferrari California T

Ferrari California T - FRONT BRAKE CALLIPERS

장바구니에 담기
