Name: REAR BRAKE CALLIPERS
Rating: 5.0 (1 reviews)

모두 보기

REAR BRAKE CALLIPERS of Ferrari Ferrari GTC4Lusso

Ferrari GTC4Lusso - REAR BRAKE CALLIPERS

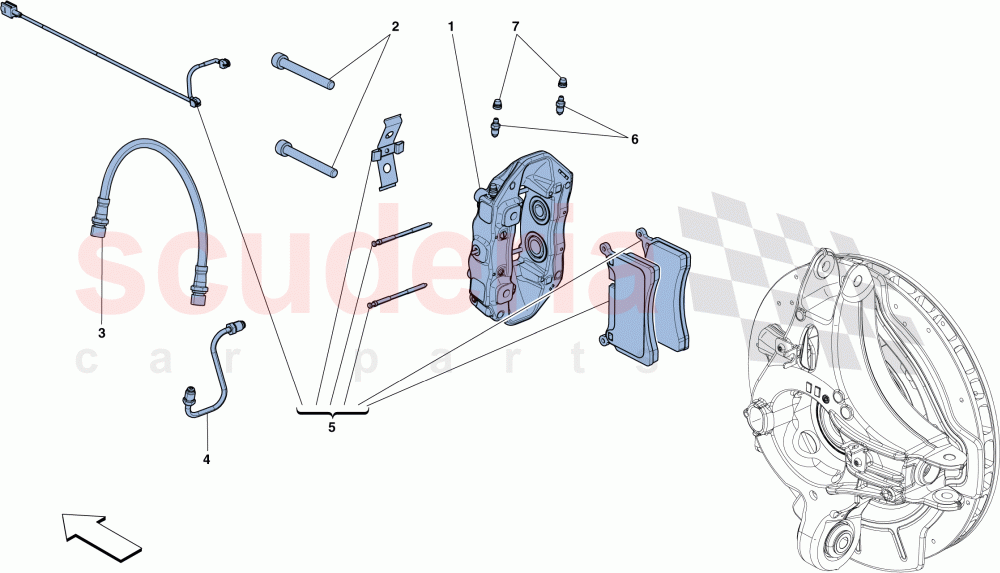

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

사진	부품 번호	설명	가격 (개당)	재고
	315591	REAR LH CALLIPER WITH PADS	$2,472.40	주문하기
	315593	REAR LH CALLIPER WITH PADS	$2,838.45	주문하기
	315587	REAR LH CALLIPER WITH PADS	$2,472.40	주문하기

...and 15 more part variants. See table on right for more details.

사진	부품 번호	설명	가격 (개당)	재고
	195167	SCREW	$22.14	IN

사진	부품 번호	설명	가격 (개당)	재고
	307382	BRAKE HOSE	$58.36	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	294292	BRAKE PIPE FROM LH CALLIPER TO FLEXIBLE HOSE	$33.18	주문하기
	294294	BRAKE PIPE FROM RH CALLIPER TO FLEXIBLE HOSE	$33.18	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	70002328	Rear Pad Set With Spring	$1,531.46	IN

사진	부품 번호	설명	가격 (개당)	재고
	215665	BLEED SCREW	$49.25	주문하기

사진	부품 번호	설명	가격 (개당)	재고
	215666	PROTECTIVE CAP	$39.51	주문하기

다이어그램 탭하여 확대

#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키
1	315591	REAR LH CALLIPER WITH PADS	315591 REAR LH CALLIPER WITH PADS Gold	$2,472.40	1	TO
1	315593	REAR LH CALLIPER WITH PADS	315593 REAR LH CALLIPER WITH PADS Blue	$2,838.45	1	TO
1	315587	REAR LH CALLIPER WITH PADS	315587 REAR LH CALLIPER WITH PADS Silver	$2,472.40	1	TO
1	315585	REAR LH CALLIPER WITH PADS	315585 REAR LH CALLIPER WITH PADS Yellow	$2,472.40	1	TO
1	315583	REAR LH CALLIPER WITH PADS	315583 REAR LH CALLIPER WITH PADS Scuderia Red	$2,472.40	1	TO
1	315581	REAR LH CALLIPER WITH PADS	315581 REAR LH CALLIPER WITH PADS Red	$2,354.55	1	TO
1	315592	REAR RH CALLIPER WITH PADS	315592 REAR RH CALLIPER WITH PADS Gold	$2,472.40	1	TO
1	315594	REAR RH CALLIPER WITH PADS	315594 REAR RH CALLIPER WITH PADS Blue	$2,838.45	1	TO
1	315577	REAR LH CALLIPER WITH PADS	315577 REAR LH CALLIPER WITH PADS Anodised black	$2,203.96	1	TO
1	315579	REAR LH CALLIPER WITH PADS	315579 REAR LH CALLIPER WITH PADS Black	$2,266.83	1	TO
1	315589	REAR LH CALLIPER WITH PADS	315589 REAR LH CALLIPER WITH PADS Dark grey	$2,838.45	1	TO
1	315586	REAR RH CALLIPER WITH PADS	315586 REAR RH CALLIPER WITH PADS Yellow	$2,472.40	1	TO
1	315584	REAR RH CALLIPER WITH PADS	315584 REAR RH CALLIPER WITH PADS Scuderia Red	$2,472.40	1	TO
1	315582	REAR RH CALLIPER WITH PADS	315582 REAR RH CALLIPER WITH PADS Red	$2,354.55	1	TO
1	315578	REAR RH CALLIPER WITH PADS	315578 REAR RH CALLIPER WITH PADS Anodised black	$2,203.96	1	TO
1	315580	REAR RH CALLIPER WITH PADS	315580 REAR RH CALLIPER WITH PADS Black	$2,266.83	1	TO
1	315590	REAR RH CALLIPER WITH PADS	315590 REAR RH CALLIPER WITH PADS Dark grey	$2,838.45	1	TO
1	315588	REAR RH CALLIPER WITH PADS	315588 REAR RH CALLIPER WITH PADS Silver	$2,472.40	1	TO
2	195167	SCREW IN	195167 SCREW M12 X 1.5 X 105 IN	$22.14	4	IN
3	307382	BRAKE HOSE	307382 BRAKE HOSE	$58.36	2	TO
4	294292	BRAKE PIPE FROM LH CALLIPER TO FLEXIBLE HOSE	294292 BRAKE PIPE FROM LH CALLIPER TO FLEXIBLE HOSE	$33.18 MSRP: ~~44.62~~ (25.6% off)	1	TO
4	294294	BRAKE PIPE FROM RH CALLIPER TO FLEXIBLE HOSE	294294 BRAKE PIPE FROM RH CALLIPER TO FLEXIBLE HOSE	$33.18	1	TO
5	70002328	Rear Pad Set With Spring IN	70002328 Rear Pad Set With Spring IN	$1,531.46	1	IN
6	215665	BLEED SCREW	215665 BLEED SCREW	$49.25	4	TO
7	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP	$39.51 MSRP: ~~44.54~~ (11.3% off)	4	TO

Rear Brake Callipers

Ferrari GTC4Lusso

Ferrari GTC4Lusso - REAR BRAKE CALLIPERS
