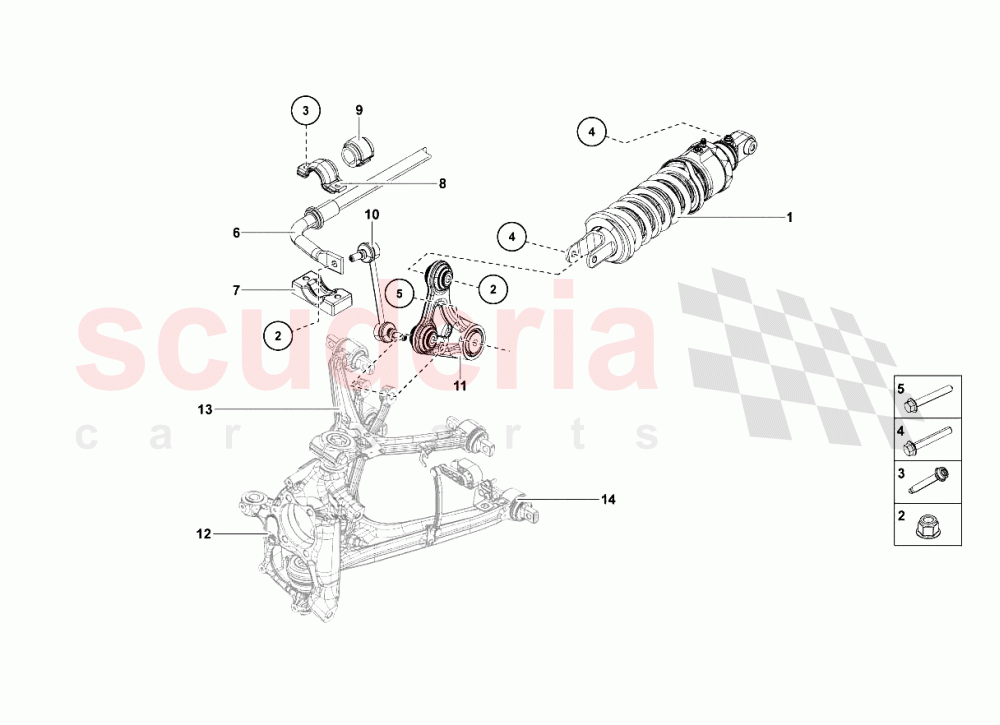

부품 분해도를 보고 원하는 부품을 찾으세요.:

부품 키

재고 있음

곧 도착

주문하기

문의하세요

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키
001	470412019K	SHOCK ABSORBER (LIFTING SYSTEM)	470412019K SHOCK ABSORBER (LIFTING SYSTEM)	$5,264.29	2	TO
001	470412019AA	SHOCK ABSORBER	470412019AA SHOCK ABSORBER	$13,232.32	2	TO
002	N10106402	Hexagon Collar Nut Self-locking (m12x1,5-m12x1,5)	N10106402 Hexagon Collar Nut Self-locking (m12x1,5-m12x1,5)	$3.22	4	TO
003	N10682501	Socket Head Bolt With Inner Multipoint Head (m8x50-m8x50)	N10682501 Socket Head Bolt With Inner Multipoint Head (m8x50-m8x50)	$3.61 MSRP: ~~7.07~~ (48.9% off)	4	TO
004	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT	$6.36	2	TO
005	N10628301	Hex Collared Bolt (m12x1,5x90)	N10628301 Hex Collared Bolt (m12x1,5x90)	$8.86	2	TO
006	470411309D	Anti-roll Bar (front)	470411309D Anti-roll Bar (front)	$369.84	1	TO
007	420411031A	Anti-roll Bar Bearing Bracket	420411031A Anti-roll Bar Bearing Bracket	$26.45	2	TO
008	4D0411336G	U-BOLT (LEFT)	4D0411336G U-BOLT (LEFT)	$5.44	2	TO
009	4D0411327J	RUBBER BUSH IN	4D0411327J RUBBER BUSH IN	$15.10	2	IN
010	470411318C	Coupling Rod (right)	470411318C Coupling Rod (right)	$108.86	1	TO
010	470411317C	Coupling Rod (left)	470411317C Coupling Rod (left)	$103.48	1	TO
011	470413127	Outrigger	470413127 Outrigger	$1,349.82	2	TO
