부품 찾기

모두 보기

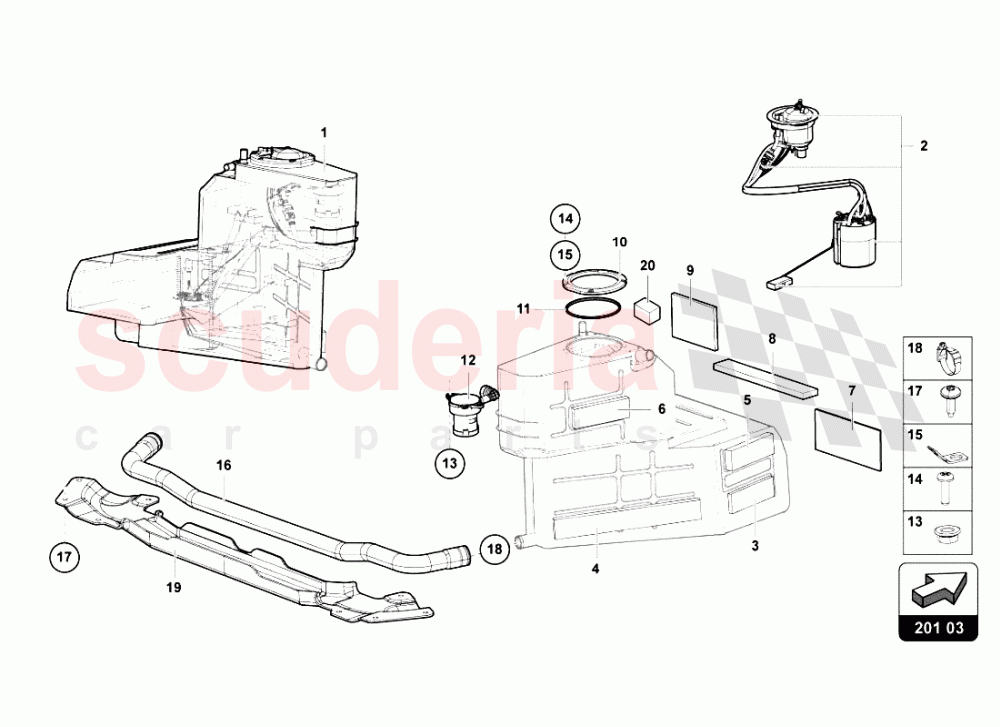

부품 분해도를 보고 원하는 부품을 찾으세요.:

부품 키

재고 있음

곧 도착

주문하기

문의하세요

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
001	470201022F	RH TANK	470201022F RH TANK	$4,051.36	1	TO
002	470906091C	Fuel Pump	470906091C Fuel Pump	$2,190.30	1	TO
003	470201615D	Protection	470201615D Protection	$62.83	1	TO
004	470201615E	Protection	470201615E Protection	$140.90	1	TO
005	470201615C	Protection	470201615C Protection	$17.02	1	TO
006	470201615G	Protection	470201615G Protection	$13.75	1	TO
007	470201615B	Protection	470201615B Protection	$75.66	1	TO
008	470201615A	Protection	470201615A Protection	$115.35	1	TO
009	470201615	PROTECTION	470201615 PROTECTION	-	1	PE	문의하기
010	470201099	Locating Flange	470201099 Locating Flange	$359.98	1	TO
011	470201209	Seal	470201209 Seal	$56.11	1	TO
012	470201521A	CHECK VALVE	470201521A CHECK VALVE	$220.92	1	TO
013	N10017304	HEXAGON COLLAR NUT IN	N10017304 HEXAGON COLLAR NUT IN	$3.16	2	IN
014	N10430104	Hexagon Socket Flat Head Bolt (m5x16)	N10430104 Hexagon Socket Flat Head Bolt (m5x16)	$1.50 MSRP: ~~7.29~~ (79.4% off)	5	TO
015	400201211	EARTHING STRAP	400201211 EARTHING STRAP	$1.00 MSRP: ~~7.23~~ (86.2% off)	1	TO
016	470201787D	Connecting Pipe	470201787D Connecting Pipe	$468.65	1	TO
017	N90900401	HEX SOCKET OVAL HEAD COLLARED IN	N90900401 HEX SOCKET OVAL HEAD COLLARED IN	$2.13	8	IN
018	N91104001	SPRING BAND CLAMP	N91104001 SPRING BAND CLAMP	$6.59	2	TO
019	470201259	Protection	470201259 Protection	$388.21	1	TO
020	470201615J	Protection	470201615J Protection	$12.64	1	TO
