Intake Manifold

Lamborghini Aventador LP720 Roadster

부품 찾기
모두 보기

Lamborghini Aventador LP720 Roadster - INTAKE MANIFOLD

부품 분해도를 보고 원하는 부품을 찾으세요.:
  • 다이어그램을 드래그하여 위치를 변경할 수 있습니다.
  • 다이어그램을 스크롤하거나 핀치하거나 and buttons
  • 부품 다이어그램에서 핫스팟 1을 클릭하여 표에서 부품을 찾을 수 있습니다.
부품 키
IN
재고 있음
AS
곧 도착
TO
주문하기
PE
문의하세요

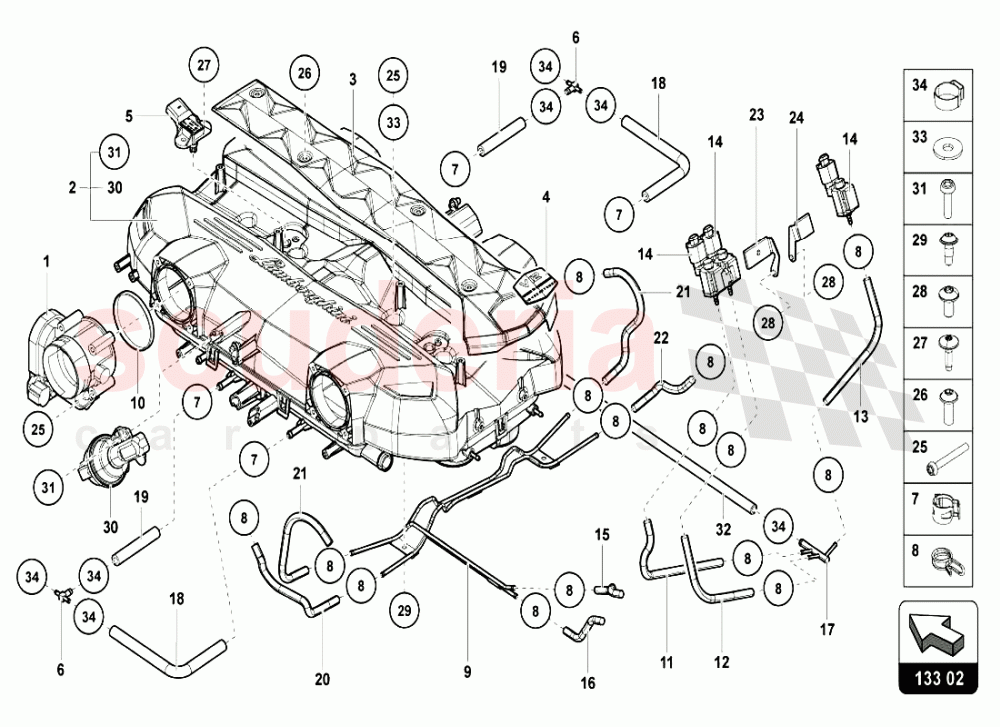

INTAKE MANIFOLD of Lamborghini Lamborghini Aventador LP720 Roadster 다이어그램 탭하여 확대
# 부품 세부 정보 가격
(각)		 수량
다이어그램		 키 에 추가
장바구니
001 7C133062C
MOTOR-DRIVEN THROTTLE BODY
IN 		$1,137.48 4
IN
002 7M133433M
INTAKE MANIFOLD UPPER PART 		$2,519.76 1
TO
003 7M103927K
COVER (CARBON FIBER) 		$2,999.71 1
TO
003 7M103927L
COVER (STANDARD) 		$261.17 1
TO
004 7M103115K
ORNAMENT 		$51.54 1
TO
005 6B906051
PRESSURE SENSOR
IN 		$118.52 2
IN
006 410133381B
CONNECTOR 		$32.48 2
TO
007 N90686701
SPRING BAND CLAMP
IN 		$3.28 (53.9% off) 10
IN
008 400127217
CLAMP
IN 		$0.69 (90.6% off) 18
IN
009 7M133085C
VACUUM PIPE 		$254.09 1
TO
010 7M129268
GASKET 		$28.43 4
TO

7M133727B

VACUUM HOSE

from $13.14

012 470131209
PRESSURE PIPE 		$17.44 1
TO
013 470131201
CONNECTING HOSE 		$15.25 1
TO
014 37906283C
SOLENOID VALVE 		$130.22 3
TO
015 7M131846C
INTAKE HOSE 		$6.42 1
TO
016 7M131847C
INTAKE HOSE 		$6.42 1
TO
017 470131585
CONNECTION PIECE 		$144.68 1
TO
018 7M131850B
VACUUM HOSE 		$19.42 2
TO
019 7M131208A
VACUUM HOSE 		$61.76 2
TO
020 7M133605A
PIPE (BLUE) 		$17.15 1
TO
022 7M133605B
VACUUM HOSE 		$8.40 1
TO
023 7M906287E
SUPPORT 		$28.24 1
TO
024 7M906303
SUPPORT 		$24.99 1
TO
025 N10470704
ROUND HD. SCREW
IN 		$1.01 (86% off) 16
IN
026 N10721401
Oval Hd. Self-tapp Fitt. Screw 		$0.40 (94.5% off) 4
TO
027 N91136801
HEXAGON SOCKET HEAD PANEL BOLT
IN 		$0.58 4
IN
028 N90638102
ROUND HD. SCREW
IN 		$2.43 (66.5% off) 2
IN
029 N90925202
Hexagon Socket Head Collared Bolt, Thread Forming (6x16) 		$0.58 (92.1% off) 2
TO
032 470131175
PIPE 		$46.24 1
TO
033 N01166623
Washer
IN 		$3.04 4
IN
034 N10196901
CLAMP 		$1.08 (85.1% off) 7
TO
