Doors (Valid For June 1992 Version)

Lamborghini Diablo (1990-1998)

부품 찾기
모두 보기

Lamborghini Diablo (1990-1998) - Doors (Valid for June 1992 Version)

부품 분해도를 보고 원하는 부품을 찾으세요.:
  • 다이어그램을 드래그하여 위치를 변경할 수 있습니다.
  • 다이어그램을 스크롤하거나 핀치하거나 and buttons
  • 부품 다이어그램에서 핫스팟 1을 클릭하여 표에서 부품을 찾을 수 있습니다.
부품 키
IN
재고 있음
AS
곧 도착
TO
주문하기
PE
문의하세요

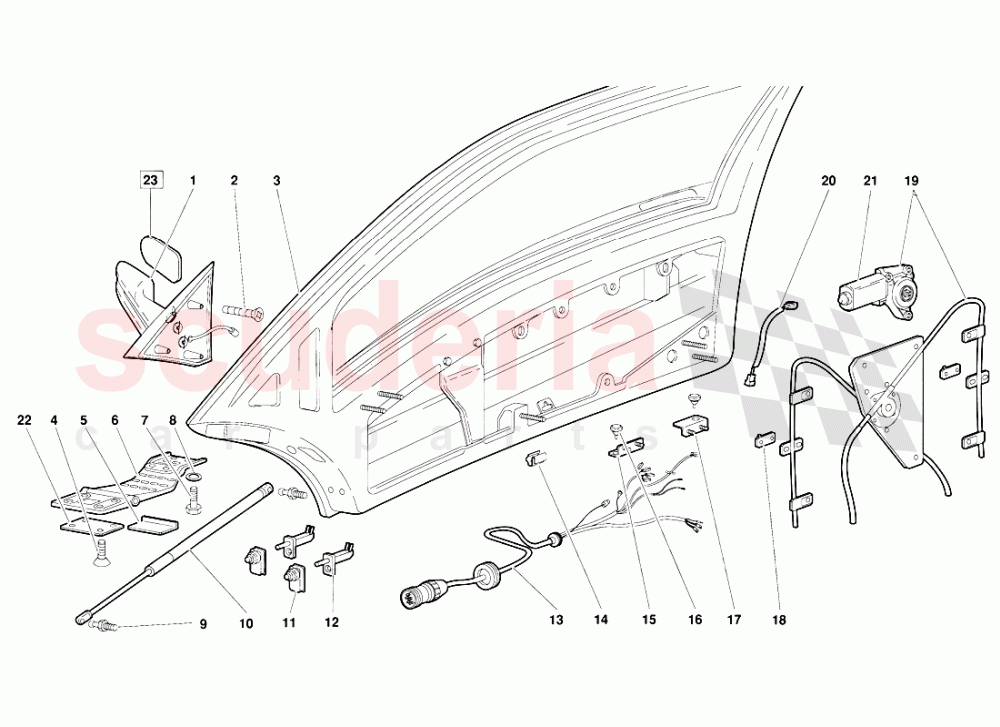

Doors (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998) 다이어그램 탭하여 확대
# 부품 세부 정보 가격
(각)		 수량
다이어그램		 키 에 추가
장바구니
001 9490401
LEFT REAR VIEW MIR.
(Valid for June 1992 version) RETROVISORE SINISTRO COMPLETO 		- 1
PE
문의하기
001 9490400
RIGHT REAR VIEW MIR.
(Valid for June 1992 version) RETROVISORE DESTRO COMPLETO 		- 1
PE
문의하기
002 8700329
SCREW
(Valid for June 1992 version) VITE 		$0.14 (98.1% off) 6
TO
003 9421006
RIGHT DOOR
(Valid for June 1992 version) PORTA DESTRA 		$11,062.75 1
TO
003 9421007
LEFT DOOR
(Valid for June 1992 version) PORTA SINISTRA 		$16,859.10 1
TO
004 8700849
SCREW
(Valid for June 1992 version) VITE 		$6.86 8
TO
005 9421616
GLASS LIFTING KNOB
(Valid for June 1992 version) PROFILATO 		$14.83 2
TO
006 410831401
LH HINGE
(Valid for June 1992 version) CERNIERA SINISTRA 		$1,142.00 1
TO
006 9421359
RIGHT HINGE
(Valid for June 1992 version) CERNIERA DESTRA 		- 1
PE
문의하기
007 8101008
SCREW
(Valid for June 1992 version) VITE 		$15.83 8
TO
008 8411005
WASHER
(Valid for June 1992 version) RONDELLA 		$0.08 8
TO
009 9459305
BALL PIN
(Valid for June 1992 version) PERNO
IN 		$3.59 4
IN
010 9421031
DOOR STRUT
(Valid for June 1992 version) MARTINETTO 		$127.70 2
TO
011 893947565A
BOOT 		$14.97 4
TO
012 5931743
SWITCH
(Valid for June 1992 version) INTERRUTTORE 		$36.50 4
TO
013 6130205
CABLE HARNESS
(Valid for June 1992 version) CABLAGGIO PORTA SINISTRA 		$287.34 1
TO
013 6130204
CABLE HARNESS
(Valid for June 1992 version) CABLAGGIO PORTA DESTRA 		$209.79 1
TO
014 8830302
CLAMP
(Valid for June 1992 version) FERMAGLIO 		$4.43 10
TO
015 9421407
LEFT DOOR PLATE
(Valid for June 1992 version) PIASTRINA FINE CORSA CRISTALLO 		$9.47 (2.4% off) 2
TO
016 9421408
RUBBER BUMPER
(Valid for June 1992 version) PARACOLPI COMMA 		$22.96 4
TO
017 9421406
RIGHT DOOR PLATE
(Valid for June 1992 version) PIASTRINA FINE CORSA CRISTALLO 		$47.77 (5.4% off) 2
TO
018 9421608
BRACKET
(Valid for June 1992 version) PIASTRINA ALZACRISTALLO 		$134.85 4
TO
019 9421600
RIGHT KIT WIND. REGUL
(Valid for June 1992 version) KIT ALZACRISTALLO DESTRO 		$691.68 1
TO
019 9421601
LEFT KIT WINDOW REGUL.
(Valid for June 1992 version) KIT ALZACRISTALLO SINISTRO 		$2,280.32 1
TO
020 9421606
ELECT CABLE
(Valid for June 1992 version) CAVI MOTORING ALZACRISTALLO 		$24.91 (5.1% off) 2
TO
021 9421605
LEFT ELECT MOTOR
(Valid for June 1992 version) MOTORING ELETTRICO PER PORTA SX 		$483.43 (2.1% off) 1
TO
021 9421604
RIGHT ELECT MOTOR
(Valid for June 1992 version) MOTORING ELETTRICO PER PORTA DX 		$483.43 (2.1% off) 1
TO
022 4132053
SHIM
(Valid for June 1992 version) SPESSORE 1.2MM 		- 1
PE
문의하기
022 4132051
SHIM
(Valid for June 1992 version) SPESSORE0.8MM 		- 1
PE
문의하기
022 4132052
SHIM
(Valid for June 1992 version) SPESSORE 1 MM 		- 1
PE
문의하기
022 4132054
SHIM
(Valid for June 1992 version) SPESSORE 1.5 MM 		- 1
PE
문의하기
023 9490412
RIGHT MIRROR
(Valid for June 1992 version) SPECCHIO DESTRO 		$190.02 1
TO
023 9490413
LEFT MIRROR
(Valid for June 1992 version) SPECCHIO SINISTRO 		$70.36 (2% off) 1
TO
