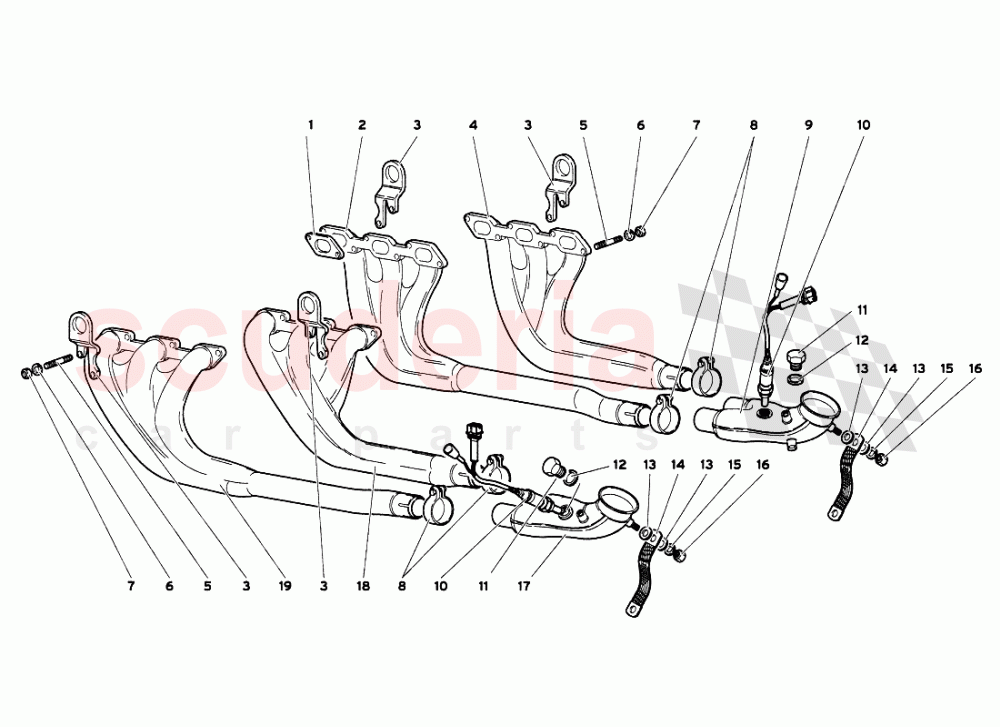

Exhaust System (My 2000) 1 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

Lamborghini Diablo VT 6.0 (2000-2001) - Exhaust System (My 2000) 1

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
001	7M253039	GASKET IN	7M253039 GASKET Alternative use : 111532 IN	$41.44	12	IN
002	44007625	RH FRONT EXHAUST MANIFOLD	44007625 RH FRONT EXHAUST MANIFOLD (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$913.44 MSRP: ~~931.00~~ (1.9% off)	1	TO
003	4432438	HOOK	4432438 HOOK (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$35.95 MSRP: ~~38.05~~ (5.5% off)	4	TO
004	44007624	RH REAR EXHAUST MANIFOLD	44007624 RH REAR EXHAUST MANIFOLD (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$913.44 MSRP: ~~931.00~~ (1.9% off)	1	TO
005	WHT003028	THREADED PIN	WHT003028 THREADED PIN (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$22.06	24	TO
006	8410817	WASHER	8410817 WASHER (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$4.86	24	TO
007	8240808	NUT	8240808 NUT (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$1.77 MSRP: ~~7.11~~ (75.1% off)	24	TO
008	8835002	STRAP	8835002 STRAP (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$7.31	4	TO
009	44001238	EXHAUST MANIFOLD	44001238 EXHAUST MANIFOLD (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$630.67 MSRP: ~~643.00~~ (1.9% off)	1	TO
010	R1470226	OXIGEN SENSOR	R1470226 OXIGEN SENSOR	$325.50 MSRP: ~~353.00~~ (7.8% off)	2	TO
011	8931808	PLUG	8931808 PLUG (Valid for ARABIA - 2000) (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$10.71	2	TO
012	N91122801	WASHER 18,5X24X1,5 IN	N91122801 WASHER 18,5X24X1,5 (Valid for ARABIA - 2000) (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000) IN	$3.82 MSRP: ~~7.18~~ (46.8% off)	2	IN
013	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5 (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$2.67	4	TO
014	1604328	GROUND CABLE	1604328 GROUND CABLE (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	-	2	PE	문의하기
015	N0152785	WASHER	N0152785 WASHER (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$0.72	2	TO
016	N01100845	NUT M8X1,25X6,5 IN	N01100845 NUT M8X1,25X6,5 (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000) IN	$3.28	2	IN
017	44001236	EXHAUST MANIFOLD	44001236 EXHAUST MANIFOLD (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$630.67 MSRP: ~~643.00~~ (1.9% off)	1	TO
018	44007622	REAR LH EXHAUST MANIFOLD	44007622 REAR LH EXHAUST MANIFOLD (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$913.44 MSRP: ~~931.00~~ (1.9% off)	1	TO
019	44007623	FRONT LH EXHAUST MANIFOLD	44007623 FRONT LH EXHAUST MANIFOLD (Exhaust system installed up to engine No. 2411 for Diablo 6.0 MY 2000)	$913.44 MSRP: ~~931.00~~ (1.9% off)	1	TO
