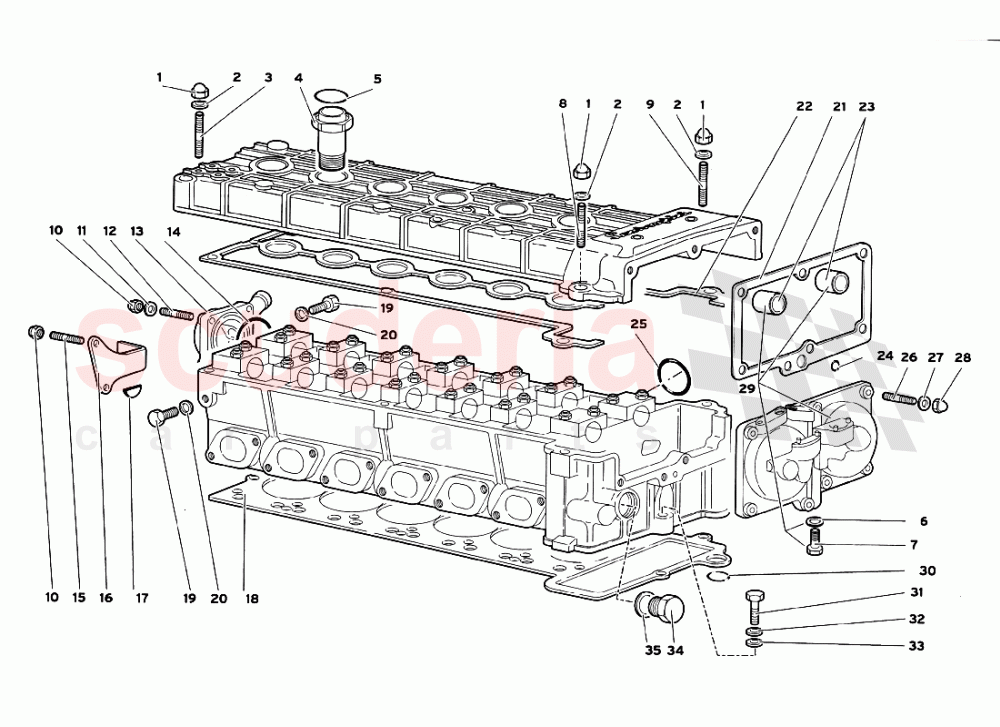

Accessories for Right Cylinder Head of Lamborghini Lamborghini Diablo GT (1999-2000)

Lamborghini Diablo GT (1999-2000) - Accessories for Right Cylinder Head

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	8200605		NUT	from $2.98
001 NUT $2.98 3 TO 010 NUT $2.98 8 TO
	002	8400606	WASHER	8400606 WASHER RONDELLA	$0.08	3	TO
	003	8300649	STUD BOLT	8300649 STUD BOLT PRIGIONIERO	$9.34 MSRP: ~~9.85~~ (5.2% off)	1	TO
	004	11004007	UNION	11004007 UNION BOCCHETTONE	$183.52	6	TO
	005	8602304	SEAL RING IN	8602304 SEAL RING ANELLO TENUTA IN	$11.29	6	IN
	006	WHT003041	WASHER IN	WHT003041 WASHER (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) RONDELLA IN	$0.92 MSRP: ~~7.31~~ (87.4% off)	1	IN
	007	8100631	SCREW	8100631 SCREW VITE	$0.11 MSRP: ~~7.37~~ (98.5% off)	1	TO
	008	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	$11.64 MSRP: ~~12.30~~ (5.4% off)	1	TO
	009	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	$14.15 MSRP: ~~15.00~~ (5.7% off)	1	TO
	011	8410602	WASHER IN	8410602 WASHER RONDELLA IN	$46.69	6	IN
	012	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	$8.47	4	TO
	013	1133383	VENT PIPE	1133383 VENT PIPE COPERCHIO - SFIATO	$172.01 MSRP: ~~176.00~~ (2.3% off)	1	TO
	014	8606205	Seal IN	8606205 Seal (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) ANELLO TENUTA IN	$5.54	1	IN
	015	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.83 MSRP: ~~5.10~~ (5.3% off)	2	TO
	016	11005230	SUPPORT	11005230 SUPPORT FERMAGUAINA	$53.97	1	TO
	017	11003411	COVER	11003411 COVER (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) COPERCHIO	-	1	PE	문의하기
	018	11000987	GASKET IN	11000987 GASKET (Also Included In The Engine Gasket Kit) GUARNIZIONE IN	$389.19	1	IN
	019	8100839	SCREW	8100839 SCREW VITE	$0.42 MSRP: ~~7.31~~ (94.3% off)	3	TO
	020	8400818	WASHER	8400818 WASHER RONDELLA	-	3	PE	문의하기
	021	11003889	GASKET	11003889 GASKET (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) GUARNIZIONE	$32.01	1	TO
	022	7M103484A	GASKET IN	7M103484A GASKET (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) GUARNIZIONE IN	$161.11	1	IN
	023	11000038	BUSHING	11000038 BUSHING BOCCOLA	$55.26	2	TO
	024	8600905	SEAL RING	8600905 SEAL RING (Also Included In The Engine Gasket Kit) ANELLO TENUTA	$9.34 MSRP: ~~9.85~~ (5.2% off)	1	TO
	025	8604703	SEAL RING	8604703 SEAL RING (Also Included In The Engine Gaskets Kit And Cover Gaskets Kit) ANELLO TENUTA	$10.56	6	TO
	026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$22.06	7	TO
	027	8410810	WASHER	8410810 WASHER RONDELLA	$0.40	7	TO
	028	8200816	NUT	8200816 NUT DADO	$5.10	7	TO
	029	11006603	COVER	11006603 COVER COPERCHIO COMPLETO	-	1	PE	문의하기
	030	8601203	SEAL	8601203 SEAL (Also Included In The Engine Gasket Kit) ANELLO TENUTA	$0.90	1	TO
	031	8100807	SCREW	8100807 SCREW VITE	$0.84 MSRP: ~~7.27~~ (88.4% off)	1	TO
	032	N0152785	WASHER	N0152785 WASHER RONDELLA	$0.72	1	TO
	033	N0122094	WASHER IN	N0122094 WASHER RONDELLA IN	$2.58 MSRP: ~~7.15~~ (63.9% off)	1	IN
	034	7M103035	PLUG	7M103035 PLUG	$62.34	1	TO
	035	8402609	WASHER	8402609 WASHER (Also Included In The Engine Gasket Kit) RONDELLA	-	1	PE	문의하기
