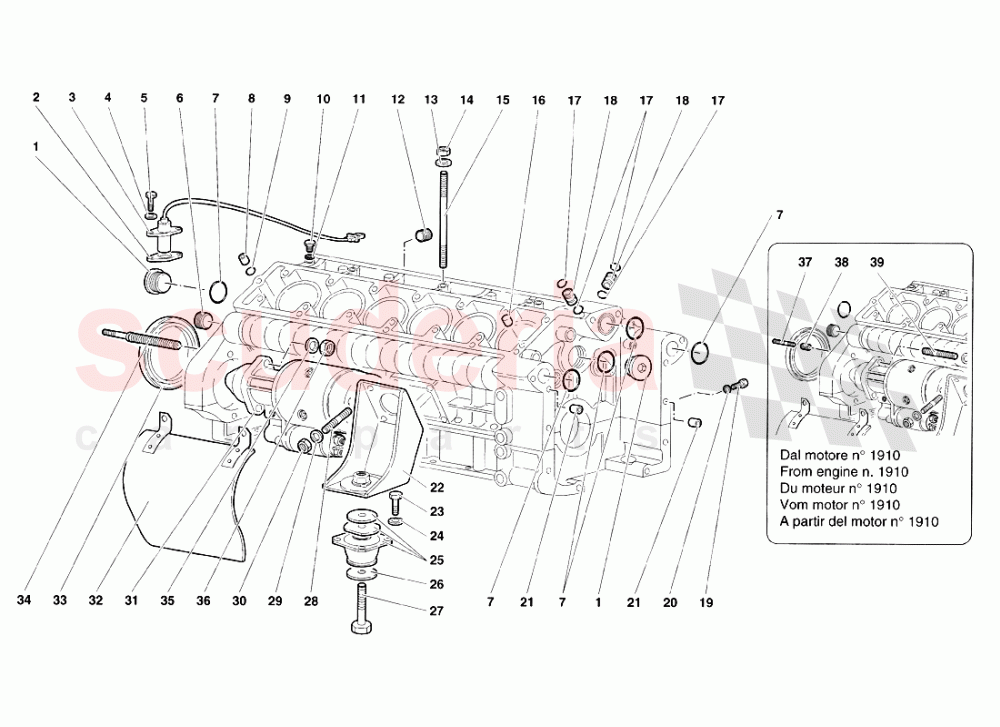

Crankase of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

Lamborghini Diablo VT Roadster (1998-2000) - Crankase

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	001	1830023	PLUG	1830023 PLUG TAPPO	-	2	PE	문의하기
	002	7M103899	0.2 mm ADJUSTMENT SHIM	7M103899 0.2 mm ADJUSTMENT SHIM SPESSORE Dl REGISTRO 0,2 MM	$5.44	1	TO
	002	1628602	SPACER	1628602 SPACER SPESSORE Dl REGISTRO 0,4 MM	-	1	PE	문의하기
	7M905381		FLYWHEEL TIMING SENSOR	from $691.68
003 FLYWHEEL TIMING SENSOR $691.68 1 TO 003 FLYWHEEL TIMING SENSOR $691.68 1 TO
	004	8410502	WASHER	8410502 WASHER RONDELLA	$0.08 MSRP: ~~7.38~~ (98.9% off)	2	TO
	005	N01020717	SCREW M5X12 IN	N01020717 SCREW M5X12 VITE IN	$1.19 MSRP: ~~7.31~~ (83.7% off)	2	IN
	006	8933503	PLUG	8933503 PLUG TAPPO	-	2	PE	문의하기
	007	8603503	SEAL RING	8603503 SEAL RING ANELLO TENUTA	$5.38	5	TO
	008	1832161	DOWEL	1832161 DOWEL GRAND	$381.82	2	TO
	009	WHT003059	SEAL RING	WHT003059 SEAL RING ANELLO TENUTA	$153.88	2	TO
	010	8101402	PLUG	8101402 PLUG TAPPO	$28.61 MSRP: ~~30.25~~ (5.4% off)	1	TO
	011	8401425	WASHER	8401425 WASHER RONDELLA	-	1	PE	문의하기
	012	8931209	PLUG	8931209 PLUG TAPPO	-	1	PE	문의하기
	013	8400801	WASHER	8400801 WASHER RONDELLA	$0.66	2	TO
	014	8200809	NUT	8200809 NUT DADO	$1.98	3	TO
	015	8300891	STUD	8300891 STUD PRIGIONIERO	$14.86 MSRP: ~~15.65~~ (5% off)	3	TO
	016	8850821	DOWEL	8850821 DOWEL GRANO	-	2	PE	문의하기
	017	WHT003057	SEAL RING IN	WHT003057 SEAL RING ANELLO TENUTA IN	$2.22 MSRP: ~~7.29~~ (69.5% off)	4	IN
	018	1833995	DOWEL	1833995 DOWEL GRANO	$35.44	2	TO
	019	8100620	Bolt	8100620 Bolt VITE	$5.75 MSRP: ~~6.00~~ (4.2% off)	1	TO
	020	WHT003041	WASHER IN	WHT003041 WASHER RONDELLA IN	$0.92 MSRP: ~~7.31~~ (87.4% off)	1	IN
	021	8851304	DOWEL	8851304 DOWEL GRANO	$62.29 MSRP: ~~65.90~~ (5.5% off)	2	TO
	022	1835941	SUPPORT - SUPPORTO	1835941 SUPPORT - SUPPORTO O	$307.53 MSRP: ~~315.00~~ (2.4% off)	2	TO
	023	8101031	SCREW	8101031 SCREW VITE	$0.93 MSRP: ~~7.24~~ (87.2% off)	8	TO
	024	8411014	WASHER	8411014 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	8	TO
	025	400199703A	Flexible Support IN	400199703A Flexible Support SUPPORTO ELASTICO IN	$441.04	2	IN
	026	N91089301	WASHER	N91089301 WASHER RONDELLA	$34.81	2	TO
	027	4131471	SCREW	4131471 SCREW VITE	$33.30 MSRP: ~~35.25~~ (5.5% off)	2	TO
	028	8300814	STUD BOLT	8300814 STUD BOLT PRIGIONIERO	$6.52 MSRP: ~~6.85~~ (4.8% off)	8	TO
	029	N0152785	WASHER	N0152785 WASHER RONDELLA	$0.72	8	TO
	030	N01100845	NUT M8X1,25X6,5 IN	N01100845 NUT M8X1,25X6,5 DADO IN	$3.28	8	IN
	031	7M911023	STARTER	7M911023 STARTER	$4,700.71	1	TO
	032	1635959	SHIELD	1635959 SHIELD PROTEZIONE	$1,295.22	1	TO
	033	7M103089	SEAL RING	7M103089 SEAL RING	$231.66	1	TO
	034	8301240	STUD	8301240 STUD PRIGIONIERO	$41.96	2	TO
	035	8411213	WASHER	8411213 WASHER RONDELLA	$2.03 MSRP: ~~2.10~~ (3.3% off)	2	TO
	036	1832869	NUT	1832869 NUT DADO	-	2	PE	문의하기
	037	WHT003028	THREADED PIN	WHT003028 THREADED PIN (Valid from engine number 1910) PRIGIONIERO	$22.06	2	TO
	038	8210873	BUSHING	8210873 BUSHING (Valid from engine number 1910) BOCCOLA	-	2	PE	문의하기
	039	8301249	STUD BOLT	8301249 STUD BOLT (Valid from engine number 1910) PRIGIONIERO	$15.13 MSRP: ~~15.90~~ (4.8% off)	2	TO
