Thermostat and Water Pump of Lamborghini Lamborghini Diablo SE30 (1993-1995)

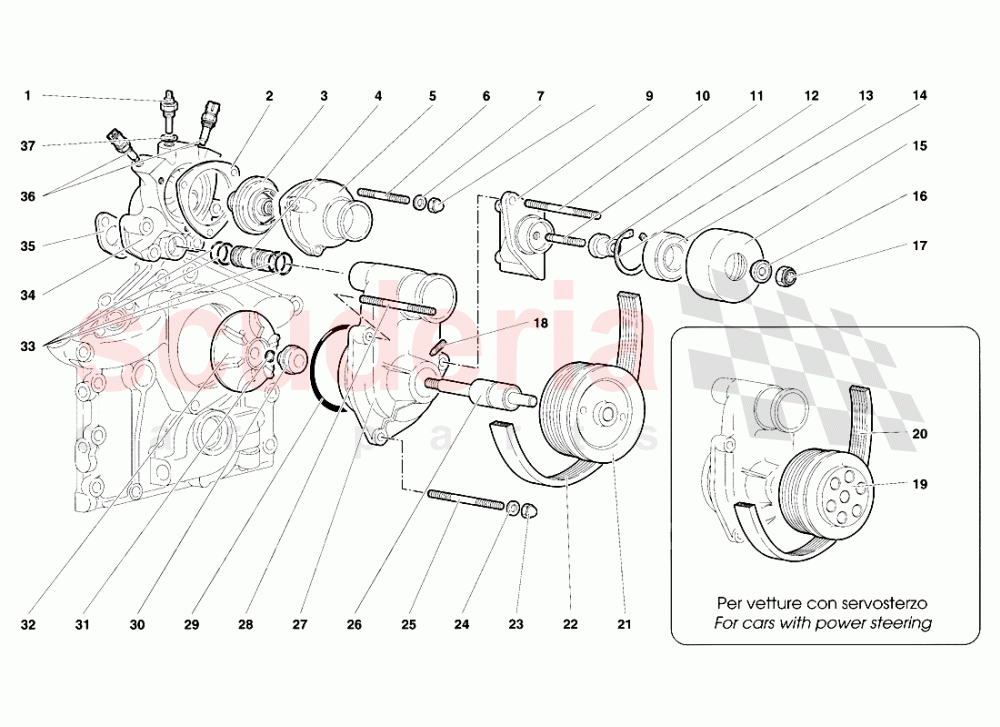

Lamborghini Diablo SE30 (1993-1995) - Thermostat and Water Pump

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	001	1724221	THERMOCOUPLE	1724221 THERMOCOUPLE TERMOCOPPIA	$140.48	1	TO
	002	1726745	GASKET	1726745 GASKET GUARNIZIONE	$7.29	1	TO
	003	1726644	THERMOSTAT	1726644 THERMOSTAT TERMOSTATO	$505.58	1	TO
	004	1726729	PIPE IN	1726729 PIPE TUBO IN	$153.84	1	IN
	005	1726731	COVER	1726731 COVER COPERCHIO CORPO TERMOSTATO	$587.68	1	TO
	006	8300615	STUD	8300615 STUD PRIGIONIERO	$19.97 MSRP: ~~21.05~~ (5.1% off)	3	TO
	007	8400606	WASHER	8400606 WASHER RONDELLA	$0.08	3	TO
	008	8200605	NUT	8200605 NUT DADO	$2.98	3	TO
	009	1731878	BRACKET	1731878 BRACKET STAFFA SUPP.GALOP.CINGHIA	$457.36	1	TO
	010	8300803	STUD BOLT	8300803 STUD BOLT PRIGIONIERO L=30	$13.67	1	TO
	011	8301004	STUD	8301004 STUD PRIGIONIERO	$29.83	1	TO
	012	1626942	PIN	1626942 PIN PERNO SU CORPO TEND.CINGH	$43.55	1	TO
	013	8575201	RETAINING RING IN	8575201 RETAINING RING ANELLO RITEGNO IN	$2.09 MSRP: ~~7.20~~ (71% off)	1	IN
	014	8502501	BEARING	8502501 BEARING CUSCINETTO	$54.03	1	TO
	015	1228675	BELT STRETCHER	1228675 BELT STRETCHER TENDICINGHIA	$371.37	1	TO
	016	1626949	WASHER	1626949 WASHER RONDELLA FISS.CUSC.PERNO CORP	$31.61	1	TO
	017	8201008	NUT IN	8201008 NUT DADO IN	$1.37 MSRP: ~~7.24~~ (81.1% off)	1	IN
	018	8700650	SCREW	8700650 SCREW VITE	$3.06	1	TO
	019	1731500	PULLEY (until car 12042)	1731500 PULLEY (until car 12042) PULEGGIA (fino alia vettura 12042)	$471.69	1	TO
	019	1733986	PULLEY	1733986 PULLEY PULEGGIA (dalla vettura 12043)	$1,037.24	1	TO
	1731857		TRANS BELT	from $103.72
020 TRANS BELT $103.72 1 TO 022 TRANS BELT $103.72 1 TO
	020	1736517	TRANS BELT	1736517 TRANS BELT CINGHIA (dalla vettura 12043)	$320.78	1	TO
	021	1734756	PULLEY	1734756 PULLEY PULEGGIA	-	1	PE	문의하기
	023	8200809	NUT	8200809 NUT DADO	$1.98	3	TO
	024	N0122094	WASHER IN	N0122094 WASHER RONDELLA IN	$2.58 MSRP: ~~7.15~~ (63.9% off)	2	IN
	025	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO L=25	$22.06	1	TO
	026	1727739	SMALL SHAFT	1727739 SMALL SHAFT ALBERINO	$463.67	1	TO
	027	1735031	WATER PUMP CASE	1735031 WATER PUMP CASE CORPO POMPA ACQUA	-	1	PE	문의하기
	028	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO L=45	$6.01 MSRP: ~~6.30~~ (4.6% off)	1	TO
	029	WHT003018	SEAL RING	WHT003018 SEAL RING ANELLO TENUTA	$31.86	1	TO
	030	1734675	SEAL	1734675 SEAL TENUTA FRONTALE	$46.13	1	TO
	031	1734248	SHIM	1734248 SHIM SPESSORE Dl REGISTRO 2,8 mm	$36.28	1	TO
	031	1734245	SHIM	1734245 SHIM SPESSORE Dl REGISTRO 2,2 mm	$36.28	1	TO
	031	1734239	SHIM	1734239 SHIM SPESSORE Dl REGISTRO 1.0 mm	$36.28	1	TO
	031	1734241	SHIM	1734241 SHIM SPESSORE Dl REGISTRO 1,4 mm	$54.97	1	TO
	031	1734240	SHIM	1734240 SHIM SPESSORE Dl REGISTRO 1,2 mm	$36.28	1	TO
	031	1734243	SHIM	1734243 SHIM SPESSORE Dl REGISTRO 1,8 mm	$36.28	1	TO
	031	1734242	SHIM	1734242 SHIM SPESSORE Dl REGISTRO 1,6 mm	$36.28	1	TO
	031	1734244	SHIM	1734244 SHIM SPESSORE Dl REGISTRO 2,0 mm	$36.28	1	TO
	031	1734246	SHIM	1734246 SHIM SPESSORE Dl REGISTRO 2,4 mm	$36.28	1	TO
	031	1734247	SHIM	1734247 SHIM SPESSORE Dl REGISTRO 2,6 mm	$36.28	1	TO
	032	1734252	IMPELLER	1734252 IMPELLER GIRANTE POMPA ACQUA	-	1	PE	문의하기
	033	8601801	SEAL	8601801 SEAL ANELLO TENUTA	$13.90	4	TO
	034	1726730	THERMOSTAT BODY	1726730 THERMOSTAT BODY CORPO TERMOSTATO	$443.03	1	TO
	035	1721922	GASKET	1721922 GASKET GUARNIZIONE	$11.50	2	TO
	036	7L919501A	Water Temperature Sensor IN	7L919501A Water Temperature Sensor SENSORE TEMPERATURA ACQUA IN	$363.09	2	IN
	037	8401425	WASHER	8401425 WASHER RONDELLA	-	1	PE	문의하기
