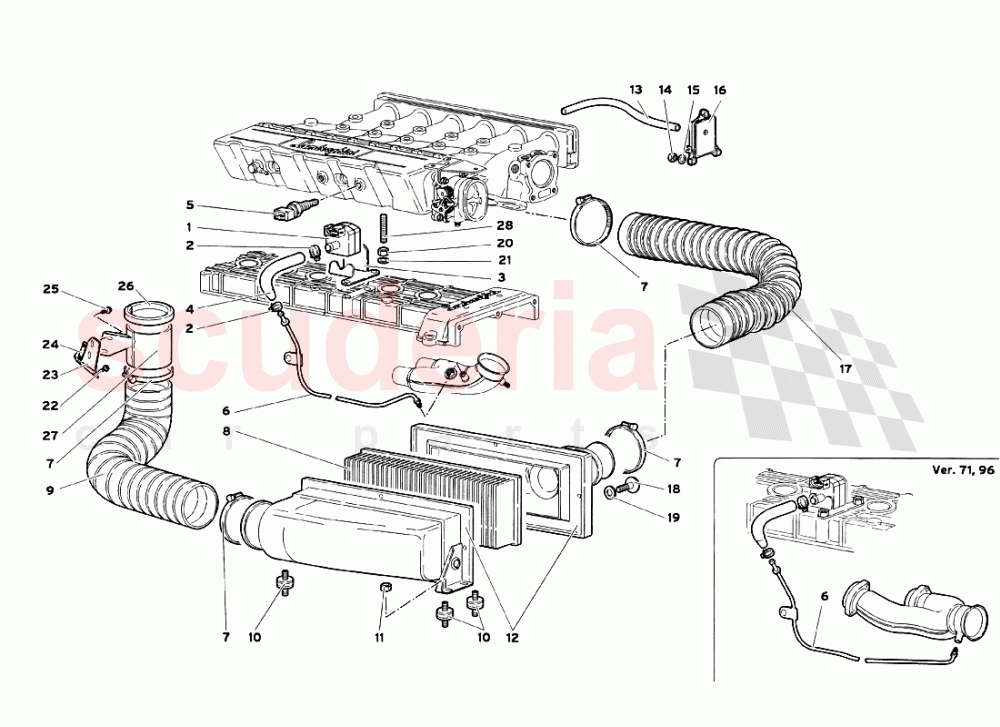

Air Filters of Lamborghini Lamborghini Diablo SV (1999)

Lamborghini Diablo SV (1999) - Air Filters

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	001	20001200	SENSOR - SENSORE	20001200 SENSOR - SENSORE	$721.90 MSRP: ~~737.00~~ (2% off)	2	TO
	002	8830901	CLAMP	8830901 CLAMP FASCETTA	$6.41	4	TO
	003	20001197	LEFT SUPPORT	20001197 LEFT SUPPORT SUPPORTOSX	$89.52 MSRP: ~~94.70~~ (5.5% off)	1	TO
	003	20001196	RIGHT SUPPORT	20001196 RIGHT SUPPORT SUPPORTO DX	$89.52 MSRP: ~~94.70~~ (5.5% off)	1	TO
	004	20001201	PIPE	20001201 PIPE TUBO	-	2	PE	문의하기
	005	7M919529	Air Temperature Sensor IN	7M919529 Air Temperature Sensor IN	$297.72	2	IN
	20001298		RIGHT PIPE	from $68.30 MSRP: ~~72.10~~ (5.3% off)
006 RIGHT PIPE $68.30 MSRP: ~~72.10~~ (5.3% off) 1 TO 006 RIGHT PIPE $68.30 MSRP: ~~72.10~~ (5.3% off) 1 TO
	20001299		LEFT PIPE	from $220.89 MSRP: ~~232.50~~ (5% off)
006 LEFT PIPE $220.89 MSRP: ~~232.50~~ (5% off) 1 TO 006 LEFT PIPE $220.89 MSRP: ~~232.50~~ (5% off) 1 TO
	006	20001199	LEFT PIPE	20001199 LEFT PIPE TUBO SX	$176.35	1	TO
	006	20001198	RIGHT PIPE	20001198 RIGHT PIPE TUBO DX	$284.31	1	TO
	007	8838701	STRAP	8838701 STRAP FASCETTA	$9.03	8	TO
	7M133843		FILTERING CARTRDIGE	from $28.31
008 Filtering Cartrdige IN $28.31 2 IN 008 Filtering Cartrdige IN $28.31 2 IN
	009	1337438	PIPE	1337438 PIPE TUBO	$387.68	2	TO
	010	9411508	ELASTIC SUPPORT	9411508 ELASTIC SUPPORT SUPPORTO ELASTICO	$31.33	6	TO
	011	N01508213	HEXAGON COLLAR NUT IN	N01508213 HEXAGON COLLAR NUT DADO IN	$0.37	6	IN
	012	13001215	RIGHT CASE	13001215 RIGHT CASE SCATOLA FILTRO ARIA DX	$878.27 MSRP: ~~895.00~~ (1.9% off)	1	TO
	012	13001216	LEFT CASE	13001216 LEFT CASE SCATOLA FILTRO ARIA SX	$916.04 MSRP: ~~933.00~~ (1.8% off)	1	TO
	013	1330454	PIPE	1330454 PIPE TUBO	$139.43 MSRP: ~~147.50~~ (5.5% off)	2	TO
	N01118312		HEXAGON NUT, SELF-LOCKING	from $2.59
014 HEXAGON NUT, SELF-LOCKING IN $2.59 6 IN 020 HEXAGON NUT, SELF-LOCKING IN $2.59 4 IN
	015	WHT002961	WASHER IN	WHT002961 WASHER RONDELLA IN	$0.64	6	IN
	016	7M919529A	PRESSURE SENSOR	7M919529A PRESSURE SENSOR SENSORE PRESSIONE	$458.88	2	TO
	017	1331286	RIGHT FLEX. HOSE	1331286 RIGHT FLEX. HOSE TUBO DX	$113.24 MSRP: ~~115.50~~ (2% off)	1	TO
	017	1333774	LEFT FLEX. HOSE 도착	1333774 LEFT FLEX. HOSE TUBO SX 도착	$281.48	1	AS
	018	8700691	SCREW	8700691 SCREW VITE	$2.99 MSRP: ~~3.10~~ (3.5% off)	8	TO
	019	N91115501	Washer 6.2X22X1 IN	N91115501 Washer 6.2X22X1 RONDELLA IN	$1.88 MSRP: ~~7.33~~ (74.4% off)	8	IN
	021	8400606	WASHER	8400606 WASHER RONDELLA	$0.08	4	TO
	N10718801		HEX COLLARED BOLT	from $1.67
022 HEX COLLARED BOLT $1.67 4 TO 025 HEX COLLARED BOLT $1.67 4 TO
	023	9453169	LEFT BRACKET	9453169 LEFT BRACKET STAFFA SX	$58.86	1	TO
	023	9453168	RIGHT BRACKET	9453168 RIGHT BRACKET STAFFA DX	$58.86	1	TO
	024	9453172	BRACKET	9453172 BRACKET STAFFA	$8.81	2	TO
	026	9453162	GASKET	9453162 GASKET GUARNIZIONE	$31.28	2	TO
	027	9453171	LEFT SUPPORT	9453171 LEFT SUPPORT SUPPORTO SX	$262.56	1	TO
	027	9453170	RIGHT SUPPORT	9453170 RIGHT SUPPORT SUPPORTO DX	$262.56	1	TO
	028	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.83 MSRP: ~~5.10~~ (5.3% off)	4	TO
