Frame Elements of Lamborghini Lamborghini Diablo SV (1999)

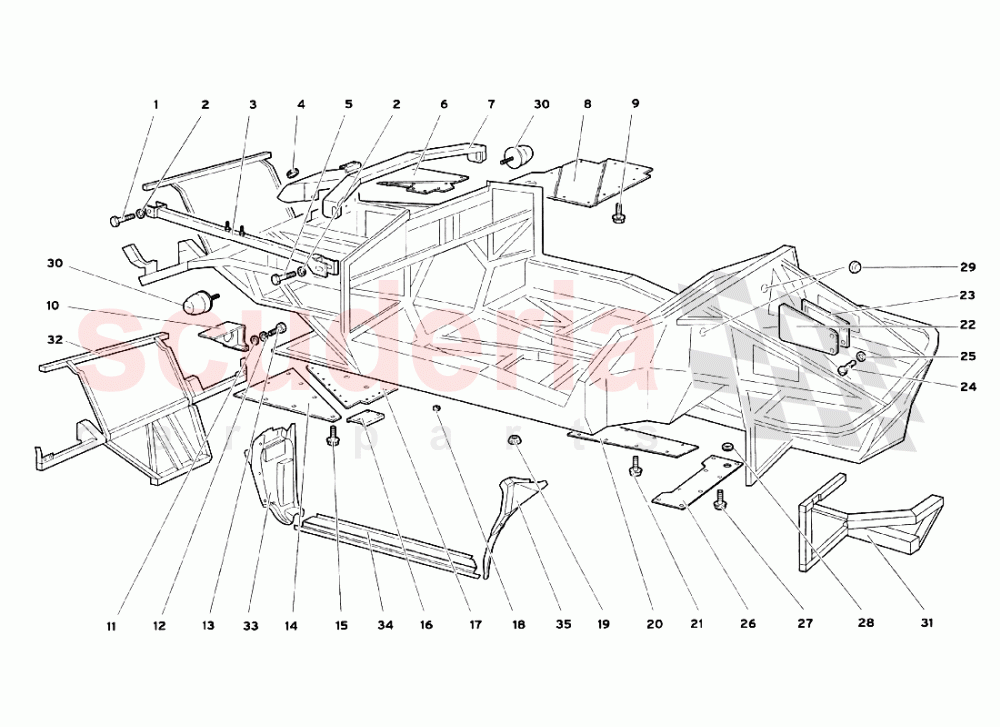

Lamborghini Diablo SV (1999) - Frame Elements

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	001	N0147519	SCREW M8X50	N0147519 SCREW M8X50 VITE	$12.70	2	TO
	002	8400820	WASHER	8400820 WASHER RONDELLA	$18.11	4	TO
	003	4133595	LEFT CROSSRAIL	4133595 LEFT CROSSRAIL TRAVERSA SX	$407.85 MSRP: ~~430.00~~ (5.2% off)	1	TO
	003	4133596	RIGHT CROSSRAIL	4133596 RIGHT CROSSRAIL TRAVERSA DX	$407.85 MSRP: ~~430.00~~ (5.2% off)	1	TO
	004	8611606	GASKET	8611606 GASKET ANELLO GOMMA	$1.71 MSRP: ~~7.04~~ (75.7% off)	2	TO
	005	8700846	SCREW	8700846 SCREW VITE	$2.21	2	TO
	006	9411522	RIGTH SUPPORT	9411522 RIGTH SUPPORT SUPPORTO DX	$615.04 MSRP: ~~651.00~~ (5.5% off)	1	TO
	006	9411523	LEFT SUPPORT	9411523 LEFT SUPPORT SUPPORTO SX	$615.04 MSRP: ~~651.00~~ (5.5% off)	1	TO
	007	4131512	CROSSRAIL	4131512 CROSSRAIL TRAVERSA	$407.85 MSRP: ~~430.00~~ (5.2% off)	1	TO
	008	4135417	PANEL	4135417 PANEL PANNELLO	$562.94	1	TO
	N10718801		HEX COLLARED BOLT	from $1.67
009 HEX COLLARED BOLT $1.67 11 TO 015 HEX COLLARED BOLT $1.67 8 TO 021 HEX COLLARED BOLT $1.67 8 TO 027 HEX COLLARED BOLT $1.67 8 TO
	010	4137167	SUPPORT - SUPPORTO SERBATOIO BENZINA	4137167 SUPPORT - SUPPORTO SERBATOIO BENZINA O SERBATOIO BENZINA	-	1	PE	문의하기
	011	8400801	WASHER	8400801 WASHER RONDELLA	$0.66	2	TO
	012	8410820	WASHER	8410820 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	2	TO
	013	8100812	SCREW	8100812 SCREW VITE	$0.35 MSRP: ~~7.33~~ (95.2% off)	2	TO
	014	4135426	PANEL	4135426 PANEL PANNELLO	$97.30	1	TO
	016	4133887	REINFORCEMENT	4133887 REINFORCEMENT RINFORZO	$32.40	2	TO
	017	4135423	PANEL	4135423 PANEL PANNELLO	$247.60 MSRP: ~~261.00~~ (5.1% off)	1	TO
	018	4134333	PLUG	4134333 PLUG TAPPO	$0.66 MSRP: ~~7.26~~ (90.9% off)	4	TO
	019	4131483	PLUG	4131483 PLUG TAPPO	-	8	PE	문의하기
	020	4130445	PANEL	4130445 PANEL PANNELLO	$341.31	1	TO
	022	4130207	LEFT PANEL	4130207 LEFT PANEL PANNELLO ISPEZIONE ALZAFARI SX	$97.30	1	TO
	022	4130206	RIGHT PANEL	4130206 RIGHT PANEL PANNELLO ISPEZIONE ALZAFARI DX	$97.30	1	TO
	023	9490205	LEFT GASKET	9490205 LEFT GASKET GUARNIZIONE SX	-	1	PE	문의하기
	023	410805349	RH GASKET	410805349 RH GASKET GUARNIZIONE DX	$22.57	1	TO
	024	4131085	PIN	4131085 PIN PERNO AGGANCIO RAPIDO	-	4	PE	문의하기
	025	7014263	RUBBER WASHER	7014263 RUBBER WASHER RONDELLA	-	4	PE	문의하기
	026	4132486	PANEL	4132486 PANEL PANNELLO	$240.40 MSRP: ~~245.50~~ (2.1% off)	1	TO
	028	8612503	GASKET	8612503 GASKET ANELLO COMMA	$13.90 MSRP: ~~14.65~~ (5.1% off)	1	TO
	029	8931407	PLUG	8931407 PLUG TAPPO	$1.18 MSRP: ~~7.15~~ (83.5% off)	2	TO
	4137362		RUBBER PAD	from $733.61 MSRP: ~~775.00~~ (5.3% off)
030 RUBBER PAD $733.61 MSRP: ~~775.00~~ (5.3% off) 2 TO 030 RUBBER PAD $733.61 MSRP: ~~775.00~~ (5.3% off) 2 TO
	031	4137964	FRONT RH FRAME	4137964 FRONT RH FRAME TELAIETTO ANT. DX	$945.57	1	TO
	031	4137963	FRONT LH FRAME	4137963 FRONT LH FRAME TELAIETTO ANT. SX	$945.57	1	TO
	032	41004924	REAR FRAME	41004924 REAR FRAME TELAIETTO POSTERIORE	$9,774.94	1	TO
	033	9409133	REAR LH COVERING	9409133 REAR LH COVERING RIVESTIMENTO SX POSTERIORE	$682.79 MSRP: ~~695.00~~ (1.8% off)	1	TO
	033	9409132	REAR RH COVERING	9409132 REAR RH COVERING RIVESTIMENTO DX POSTERIORE	$617.63 MSRP: ~~631.00~~ (2.1% off)	1	TO
	034	9409135	MIDDLE LH COVERING	9409135 MIDDLE LH COVERING RIVESTIMENTO SX CENTRALE	$113.62 MSRP: ~~116.00~~ (2.1% off)	1	TO
	034	9409134	MIDDLE RH COVERING	9409134 MIDDLE RH COVERING RIVESTIMENTO DX CENTRALE	$113.62 MSRP: ~~116.00~~ (2.1% off)	1	TO
	035	9409137	FRONT LH COVERING	9409137 FRONT LH COVERING RIVESTIMENTO SX ANTERIORE	$512.09 MSRP: ~~522.00~~ (1.9% off)	1	TO
	035	9409136	FRONT RH COVERING	9409136 FRONT RH COVERING RIVESTIMENTO DX ANTERIORE	$512.09 MSRP: ~~522.00~~ (1.9% off)	1	TO
