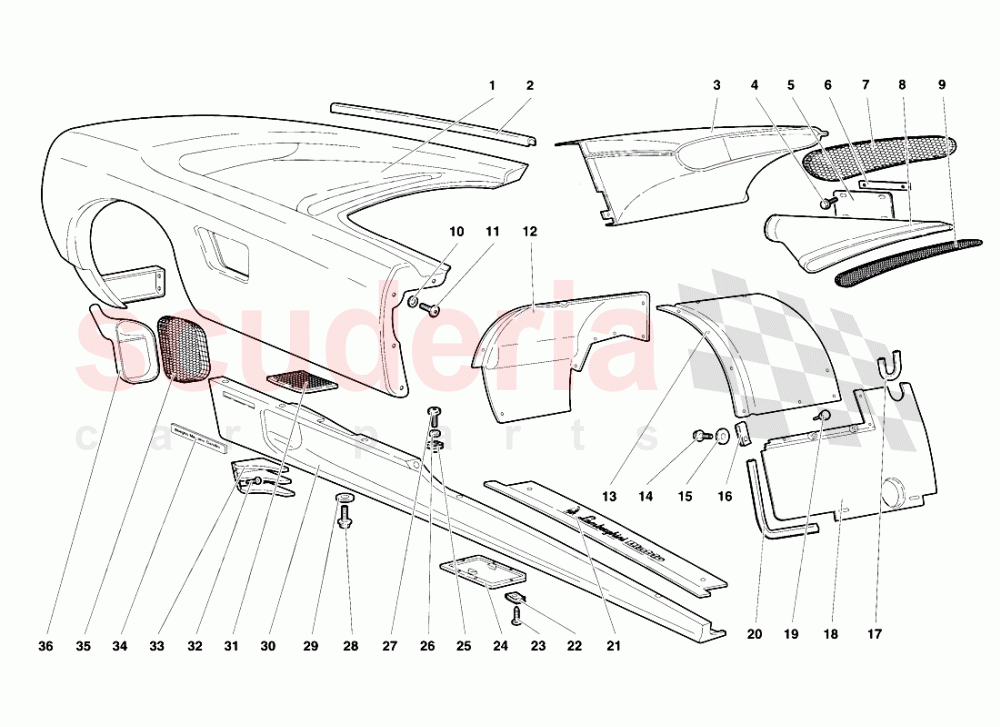

Body Elements - Right Flank of Lamborghini Lamborghini Diablo VT (1993-1998)

Lamborghini Diablo VT (1993-1998) - Body Elements - Right Flank

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	001	9410012	RH REAR FENDER	9410012 RH REAR FENDER	$9,824.87 MSRP: ~~10,005.00~~ (1.8% off)	1	TO
	002	9490113	GASKET	9490113 GASKET GUARNIZIONE	$27.00 MSRP: ~~32.55~~ (17.1% off)	1	TO
	003	9453100	CONVEYOR	9453100 CONVEYOR CONVOGLIATORE	-	1	PE	문의하기
	N10718801		HEX COLLARED BOLT	from $1.67
004 HEX COLLARED BOLT $1.67 4 TO 028 HEX COLLARED BOLT $1.67 9 TO
	005	9453136	SUPPORT - SUPPORTO	9453136 SUPPORT - SUPPORTO O	$11.72 MSRP: ~~12.05~~ (2.7% off)	1	TO
	006	9453137	BRACKET	9453137 BRACKET STAFFA	$9.06 MSRP: ~~9.30~~ (2.6% off)	1	TO
	007	9430124	NET	9430124 NET RETE	$522.96	1	TO
	008	9453139	CONVEYOR	9453139 CONVEYOR CONVOGLIATORE	$330.99 MSRP: ~~337.00~~ (1.8% off)	1	TO
	009	9430126	NET	9430126 NET RETE	$539.46	1	TO
	8400624		WASHER	from $4.73
010 WASHER $4.73 9 TO 026 WASHER $4.73 3 TO
	8700685		SCREW	from $0.74 MSRP: ~~7.25~~ (89.8% off)
011 SCREW $0.74 MSRP: ~~7.25~~ (89.8% off) 9 TO 027 SCREW $0.74 MSRP: ~~7.25~~ (89.8% off) 3 TO
	012	9411502	REAR WHEELBOX	9411502 REAR WHEELBOX PASSARUOTA POST.	$973.35	1	TO
	013	9411501	REAR WHEELBOX	9411501 REAR WHEELBOX PASSARUOTA POST.	$426.08 MSRP: ~~450.00~~ (5.3% off)	1	TO
	014	8700449	SCREW IN	8700449 SCREW VITE IN	$3.85 MSRP: ~~7.37~~ (47.8% off)	22	IN
	015	8400508	WASHER	8400508 WASHER RONDELLA	$7.08	22	TO
	016	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$15.18	22	TO
	017	9411513	GASKET	9411513 GASKET GUARNIZIONE	$180.15	1	TO
	018	9411500	PROTECTION	9411500 PROTECTION PARASASSI	-	1	PE	문의하기
	019	9421408	RUBBER BUMPER	9421408 RUBBER BUMPER PARACOLPI GOMMA	$22.96	2	TO
	020	9411511	GASKET	9411511 GASKET GUARNIZIONE	$108.70	1	TO
	021	9458307	DOORSILL MOULDING	9458307 DOORSILL MOULDING BATTICALCAGNO	$3,732.11	1	TO
	022	WHT003424	CLIP	WHT003424 CLIP MOLLETTA	$1.95 MSRP: ~~7.25~~ (73.1% off)	6	TO
	023	WHT003114	SCREW	WHT003114 SCREW VITE	$5.44	6	TO
	024	9410306	INSPECTION LID	9410306 INSPECTION LID SPORTELLO ISPEZIONE	$66.72 MSRP: ~~70.60~~ (5.5% off)	1	TO
	025	N90327506	SPEED NUT IN	N90327506 SPEED NUT MOLLETTA IN	$1.55	6	IN
	029	WHT002961	WASHER IN	WHT002961 WASHER RONDELLA IN	$0.64	3	IN
	030	9410304	SIDE PANEL	9410304 SIDE PANEL BRANCARDO	$4,758.25	1	TO
	031	9430143	NET	9430143 NET RETE	$77.01 MSRP: ~~78.60~~ (2% off)	1	TO
	032	N91049601	OVAL HEAD PANEL SCREW (COMBI)	N91049601 OVAL HEAD PANEL SCREW (COMBI) VITE	$1.19 MSRP: ~~7.31~~ (83.7% off)	8	TO
	033	9430005	GRILLE	9430005 GRILLE GRIGLIA	$407.85 MSRP: ~~430.00~~ (5.2% off)	1	TO
	035	9430139	NET	9430139 NET RETE	$274.30	1	TO
	036	9453140	CONVEYOR	9453140 CONVEYOR CONVOGLIATORE	$237.17	1	TO
