Lamborghini Gallardo (2008) - Doors 3

부품 분해도를 보고 원하는 부품을 찾으세요.:
  • 다이어그램을 드래그하여 위치를 변경할 수 있습니다.
  • 다이어그램을 스크롤하거나 핀치하거나 and buttons
  • 부품 다이어그램에서 핫스팟 1을 클릭하여 표에서 부품을 찾을 수 있습니다.
부품 키
IN
재고 있음
AS
곧 도착
TO
주문하기
PE
문의하세요

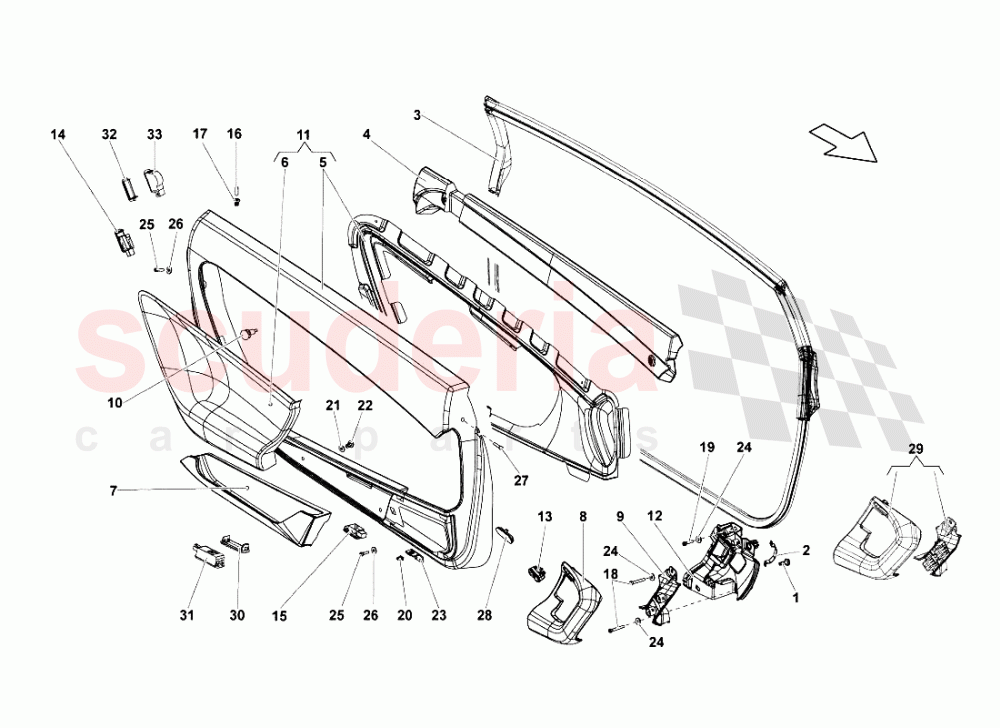

Doors 3 of Lamborghini Lamborghini Gallardo (2008) 다이어그램 탭하여 확대
# 부품 세부 정보 가격
(각)		 수량
다이어그램		 키 에 추가
장바구니
001 WHT000767
SCREW 		$0.27 (96.3% off) 4
TO
002 400035243
TWEETER SUPPORT BRACKET 		$11.29 2
TO
003 400831708
RIGHT DOOR WEATHERSTRIP, INNER 		$1,013.54 1
TO
003 400831707
LEFT DOOR WEATHERSTRIP, INNER
도착 		$1,066.19 1
AS
004 400837968C
DOOR CRASH PAD 		$69.31 1
TO
004 400837967C
DOOR CRASH PAD 		$69.31 1
TO
007 400867131B
POCKET (SUPPLY VIN) 		$2,286.83 1
TO
007 400867132C
RIGHT POCKET (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		$686.06 1
TO
007 400867132B
POCKET (SUPPLY VIN) 		$2,286.83 1
TO
007 400867131C
LEFT POCKET (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		$686.06 1
TO
008 400867172D
RH HANDLE UPPER PORTION (CARBON INTERIOR) 		$3,952.53 1
TO
008 400867171D
LH HANDLE UPPER PORTION (CARBON INTERIOR) 		$3,952.53 1
TO
009 400867195C
LH HANDLE CENTER PORTION (CARBON INTERIOR) 		$3,282.02 1
TO
009 400867196C
RH HANDLE CENTER PORTION (CARBON INTERIOR) 		$3,282.02 1
TO
010 400867299
FASTENER LYS FUSION, YELLOW
IN 		$19.93 4
IN
011 401867106G
RH DOOR PANEL ASSEMBLY (SUPPLY VIN) 		$8,201.49 1
TO
011 401867105G
LH DOOR PANEL ASSEMBLY (SUPPLY VIN) 		$8,201.49 1
TO
012 400868099CSK1
INNER HANDLE WITH GRID LH (BLACK LEATHER UPHOLSTERY) 		$4,651.29 1
TO
012 400868099J
INNER HANDLE WITH GRID LH 		$246.34 1
TO
012 400868100C
INNER HANDLE WITH GRID RH (LEATHER UPHOLSTERY - SUPPLY VIN) 		$4,651.29 1
TO
012 400868100CSK1
INNER HANDLE WITH GRID RH (BLACK LEATHER UPHOLSTERY) 		$4,651.29 1
TO
012 400868100F
INNER HANDLE WITH GRID RH (DECORATIVE INSERTS - SUPPLY VIN) 		$4,644.24 1
TO
012 400868100N
INNER HANDLE WITH GRID RH 		$246.34 1
TO
012 400868099C
INNER HANDLE WITH GRID LH (LEATHER UPHOLSTERY - SUPPLY VIN) 		$4,651.29 1
TO
012 400868099F
INNER HANDLE WITH GRID LH (DECORATIVE INSERTS - SUPPLY VIN) 		$4,651.29 1
TO
012 400868099D
INNER HANDLE WITH GRID LH (CARBON INTERIOR) 		$5,441.80 1
TO
012 400868100D
INNER HANDLE WITH GRID RH (CARBON INTERIOR) 		$5,441.80 1
TO
013 400962107B
DOOR LOCK/UNLOCK SWITCH (WITHOUT SERIGRAPHY) 		$37.19 2
TO
013 400962107A
DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY) 		$435.09 2
TO
014 6Y0947411
DOOR CLEARANCE LIGHT 		$28.03 2
TO
015 4B0947415A
LUGGAGE COMPARTMENT LAMP 		$21.27 2
TO
016 8N0919238
ANTITHEFT LED 		$42.78 1
TO
017 8Z0919424A4PK
SLEEVE DWA 		- 2
PE
문의하기
018 N10613801
SCREW M 5X55.0 		$1.43 (80.4% off) 4
TO
019 N10544301
SCREW M5X25 		$0.50 (93.2% off) 2
TO
020 N90526602
SPEED NUT
IN 		$1.95 (73.3% off) 2
IN
021 WHT002961
WASHER
IN 		$0.64 4
IN
022 N10586401
OVAL HEXAGON SOCKET HEAD BOLT 		$1.67 4
TO
023 400867159A
LH BRACKET 		$22.38 1
TO
023 400867160A
RH BRACKET 		$22.38 1
TO
024 N01154012
WASHER 		$0.18 (97.6% off) 6
TO
025 WHT003111
SCREW M5X16
IN 		$1.95 (73% off) 2
IN
026 WHT000778
Washer (30x36x1)
IN 		$1.09 2
IN
027 N10621601
HEX SOCKET OVAL HEAD COLLARED 		$3.06 2
TO
029 R1400552
RH PULL HANDLE (LEATHER UPHOLSTERY - SUPPLY VIN) 		$1,609.24 1
TO
029 R1400550
RH PULL HANDLE (STANDARD - WARNING! ALSO ORDER 0R1400549 )
IN 		$174.34 1
IN
029 R1400552SK1
RH PULL HANDLE (BLACK LEATHER UPHOLSTERY) 		$1,609.24 1
TO
029 R1400551SK1
LH PULL HANDLE (BLACK LEATHER UPHOLSTERY) 		$1,609.24 1
TO
029 R1400549
LH PULL HANDLE (STANDARD - WARNING! ALSO ORDER 0R1400550 )
IN 		$183.41 1
IN
029 R1400551
LH PULL HANDLE (LEATHER UPHOLSTERY - SUPPLY VIN) 		$1,609.24 1
TO
