부품 찾기

모두 보기

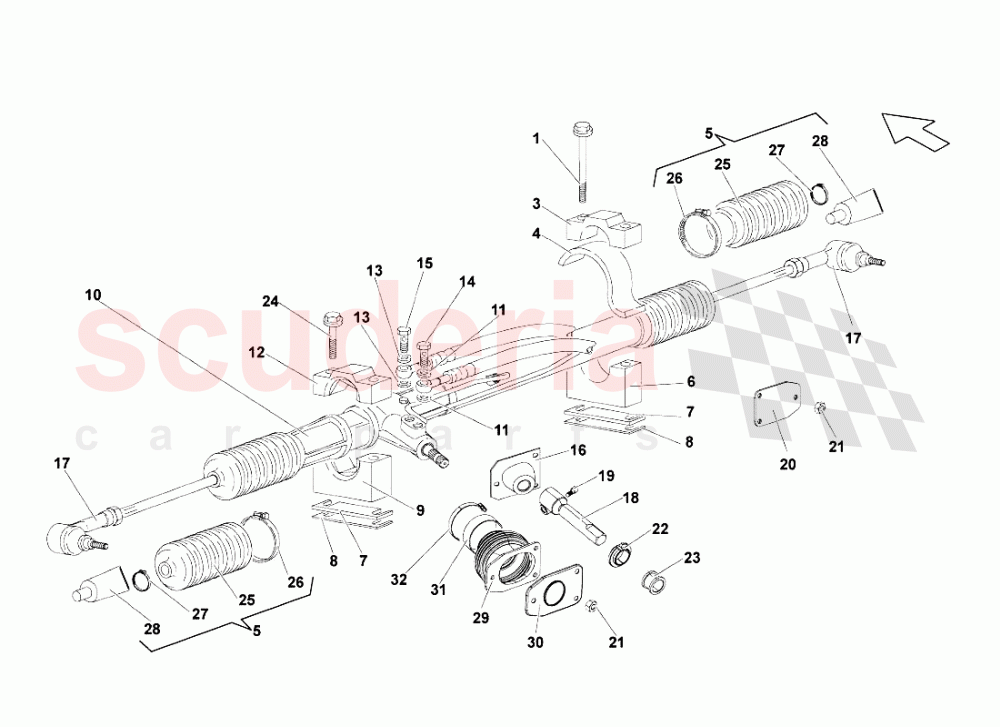

부품 분해도를 보고 원하는 부품을 찾으세요.:

부품 키

재고 있음

곧 도착

주문하기

문의하세요

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키
001	N10186106	SCREW BM10X90X45	N10186106 SCREW BM10X90X45	$8.02	4	TO
003	400422874C	RIGHT SUPPORT	400422874C RIGHT SUPPORT	$457.36	1	TO
004	400422850	RUBBER SHIM	400422850 RUBBER SHIM	$7.86	1	TO
005	400419831B	BOOT KIT IN	400419831B BOOT KIT IN	$145.83	2	IN
006	400422761D	RIGHT SUPPORT	400422761D RIGHT SUPPORT	$147.53	1	TO
009	400422761E	LEFT SUPPORT	400422761E LEFT SUPPORT	$335.98	1	TO
010	401422061F	Left Hand Drive Power Steering Rack IN	401422061F Left Hand Drive Power Steering Rack IN	$6,741.67	1	IN
011	N0138481	WASHER IN	N0138481 WASHER IN	$1.19 MSRP: ~~7.28~~ (83.7% off)	2	IN
012	400422874B	LEFT SUPPORT	400422874B LEFT SUPPORT	$309.14	1	TO
013	N0138492	WASHER IN	N0138492 WASHER IN	$4.19 MSRP: ~~7.21~~ (41.9% off)	2	IN
015	400422269A	SCREW WITH HOLE	400422269A SCREW WITH HOLE	$19.21	1	TO
016	400422326	GASKET	400422326 GASKET	$45.87	1	TO
018	400419753C	SLEEVE	400419753C SLEEVE	$347.26	1	TO
019	N10518405	Socket Head Bolt With Multi- Point Inner Drive, Self-lock. (m8x30-m8x30)	N10518405 Socket Head Bolt With Multi- Point Inner Drive, Self-lock. (m8x30-m8x30)	$4.44 MSRP: ~~7.10~~ (37.5% off)	1	TO
020	400419780	GASKET	400419780 GASKET	$43.99	1	TO
021	N01508213	HEXAGON COLLAR NUT IN	N01508213 HEXAGON COLLAR NUT IN	$0.37	6	IN
022	400419147	BUSHING	400419147 BUSHING	$44.55	1	TO
023	400419139	BUSHING	400419139 BUSHING	$39.88	1	TO
