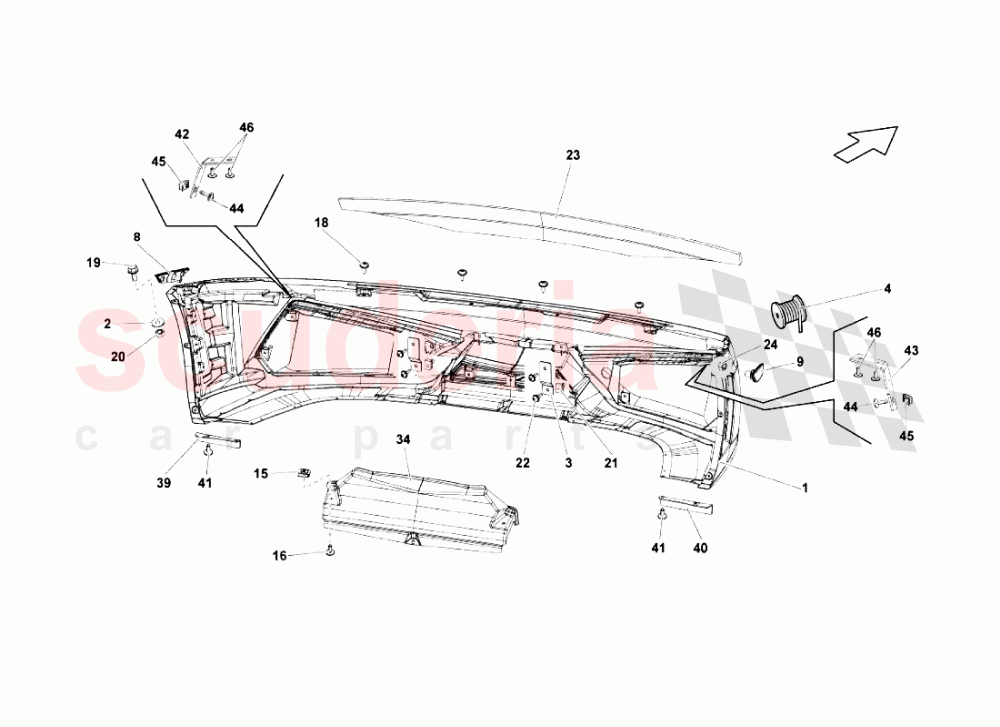

Front Bumpers of Lamborghini Lamborghini Gallardo LP570 4 SL

Lamborghini Gallardo LP570 4 SL - Front Bumpers

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	000	407807103N	FRONT BUMPER INSERT SUPPORT	407807103N FRONT BUMPER INSERT SUPPORT	-	1	PE	문의하기
	001	403807429	FRONT BUMPERS	403807429 FRONT BUMPERS	$4,751.86	1	TO

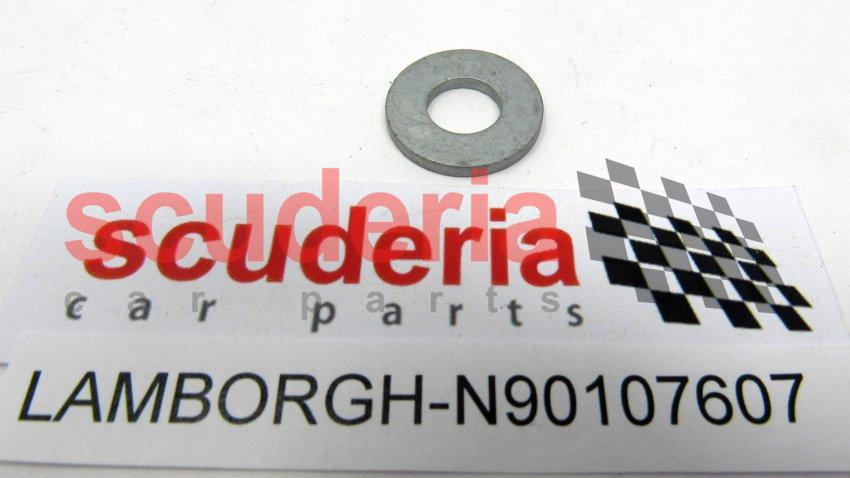

	002	N90107607	Washer 8.20X18.0X2.00 IN	N90107607 Washer 8.20X18.0X2.00 IN	$1.79 MSRP: ~~7.22~~ (75.2% off)	2	IN
	003	403807677	BRACKET	403807677 BRACKET	$22.81	2	TO
	004	63000321	TAPE (1 M)	63000321 TAPE (1 M)	$10.16 MSRP: ~~10.40~~ (2.3% off)	1	TO

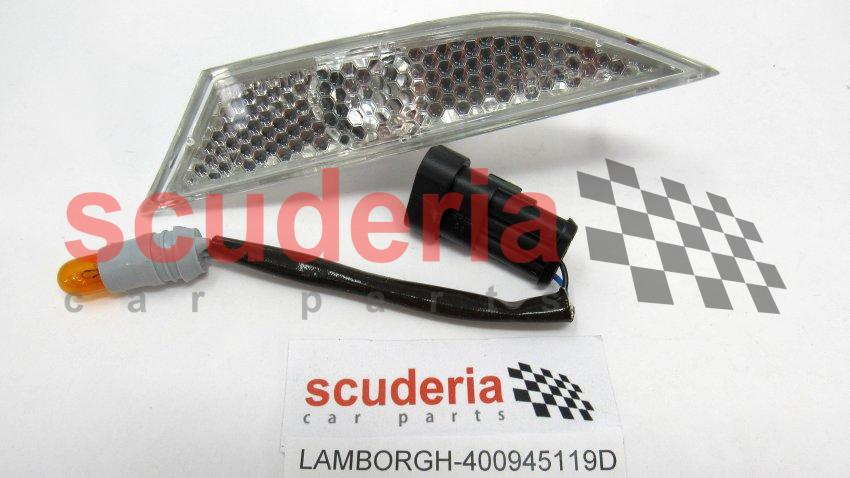

	008	400945119D	Front Left Side Market IN	400945119D Front Left Side Market IN	$276.90	1	IN
	008	400945119B	Front Left Side Marker IN	400945119B Front Left Side Marker orange colour IN	$233.72	1	IN

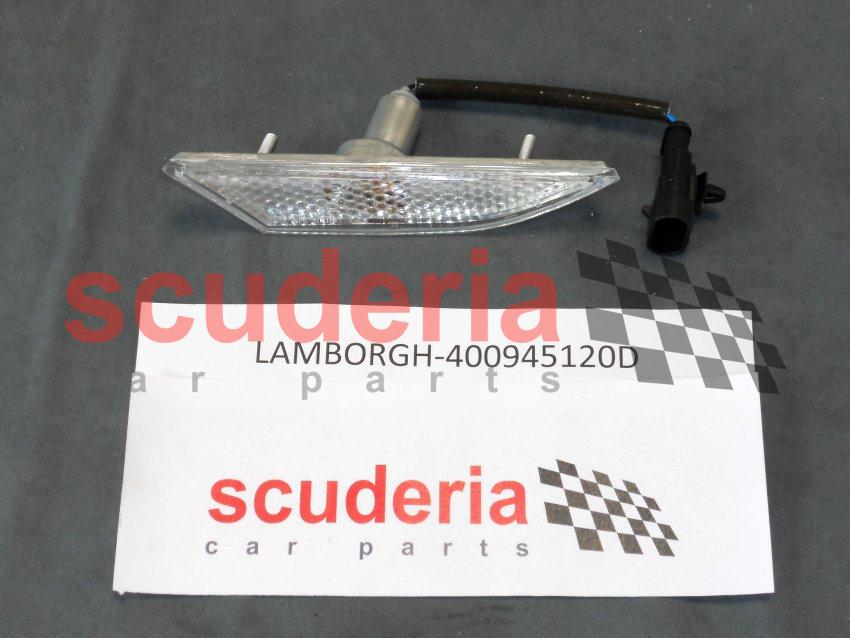

	009	400945120D	Front Right Side Marker IN	400945120D Front Right Side Marker IN	$291.28	1	IN

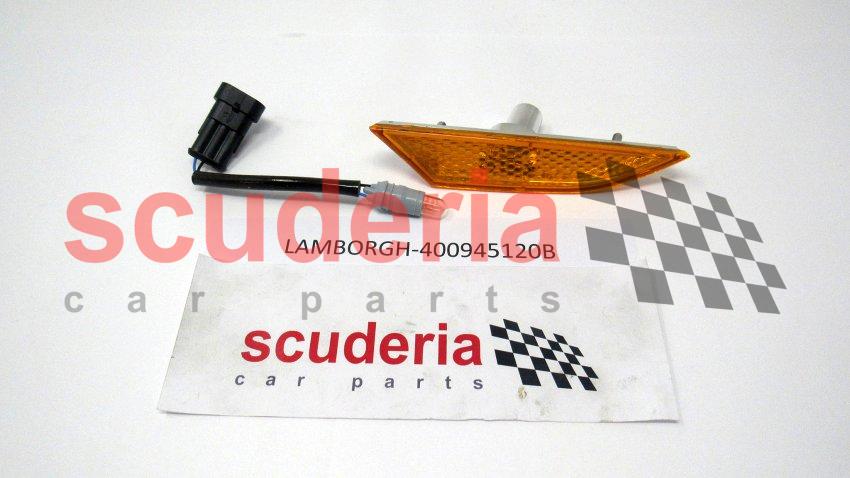

	009	400945120B	Front Right Side Marker IN	400945120B Front Right Side Marker orange colour IN	$233.72	1	IN
	N0154487		SPEED NUT	from $1.67
015 SPEED NUT IN $1.67 3 IN 021 SPEED NUT IN $1.67 2 IN
	016	N90986803	HEXAGON SOCKET HEAD PANEL BOLT IN	N90986803 HEXAGON SOCKET HEAD PANEL BOLT IN	$1.75	3	IN
	016	R9900005	Bumper Facelift Conversion Kit FL2 Style Package	R9900005 Bumper Facelift Conversion Kit FL2 Style Package Includes, Front & Rear Bumpers, Diffuser, Grills, Tail Pipes & Fixing Brackets.	$16,383.51	1	TO

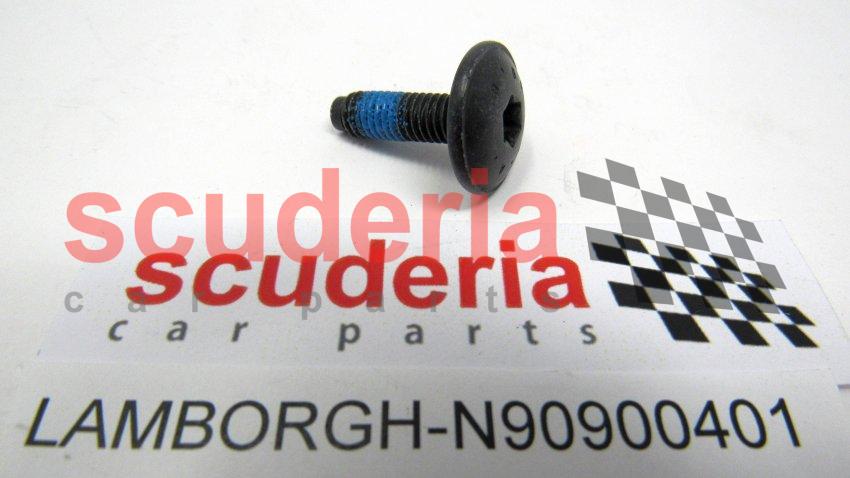

	N90900401		HEX SOCKET OVAL HEAD COLLARED	from $2.13
018 HEX SOCKET OVAL HEAD COLLARED IN $2.13 4 IN 041 HEX SOCKET OVAL HEAD COLLARED IN $2.13 4 IN
	019	N90847903	Screw M6X15 IN	N90847903 Screw M6X15 IN	$1.98	2	IN
	020	N01508213	HEXAGON COLLAR NUT IN	N01508213 HEXAGON COLLAR NUT IN	$0.37	2	IN
	022	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN	$2.85	4	IN
	023	403807674	PROTECTION	403807674 PROTECTION	$492.66	1	TO

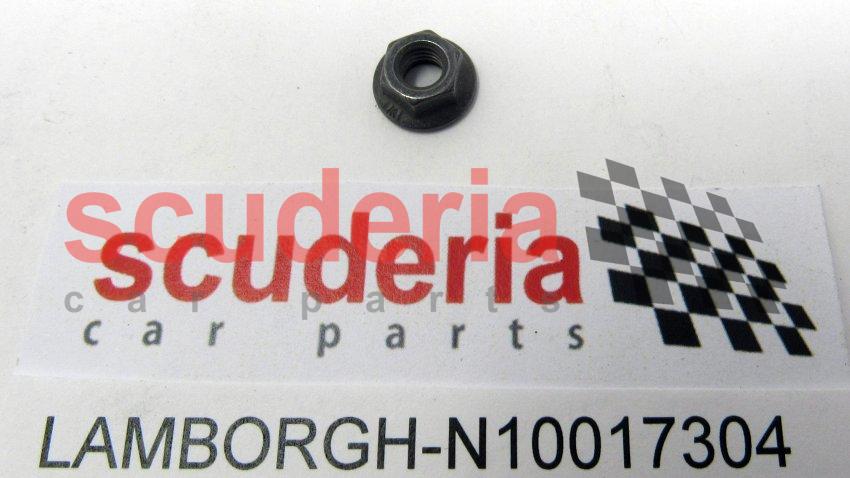

	024	N10017304	HEXAGON COLLAR NUT IN	N10017304 HEXAGON COLLAR NUT IN	$3.16	4	IN

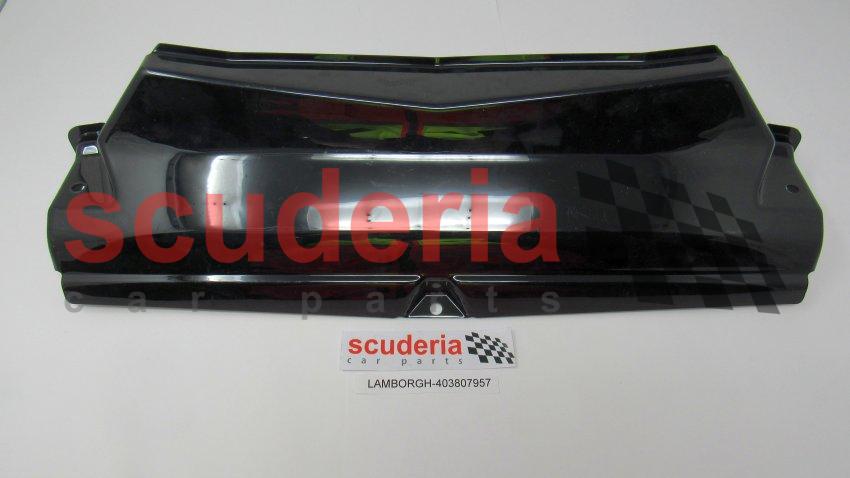

	034	403807957	Conveyor IN	403807957 Conveyor IN	$156.66	1	IN

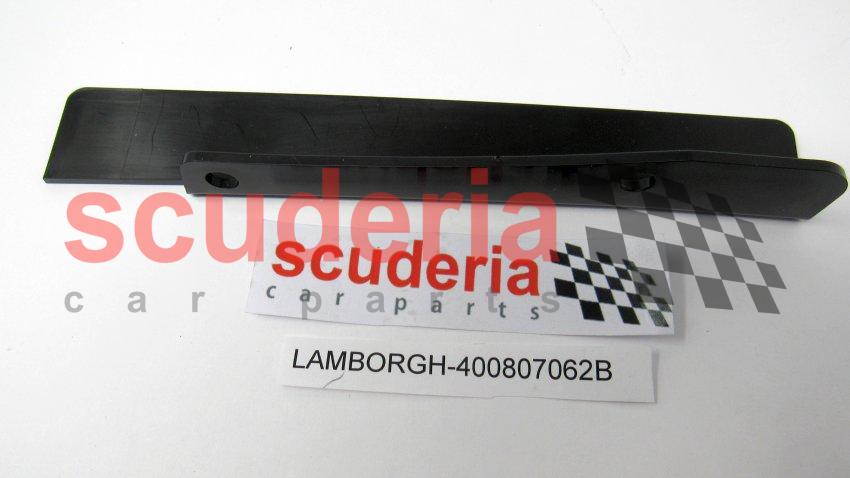

	039	400807062B	FRONT SPOILER IN	400807062B FRONT SPOILER IN	$36.47	1	IN

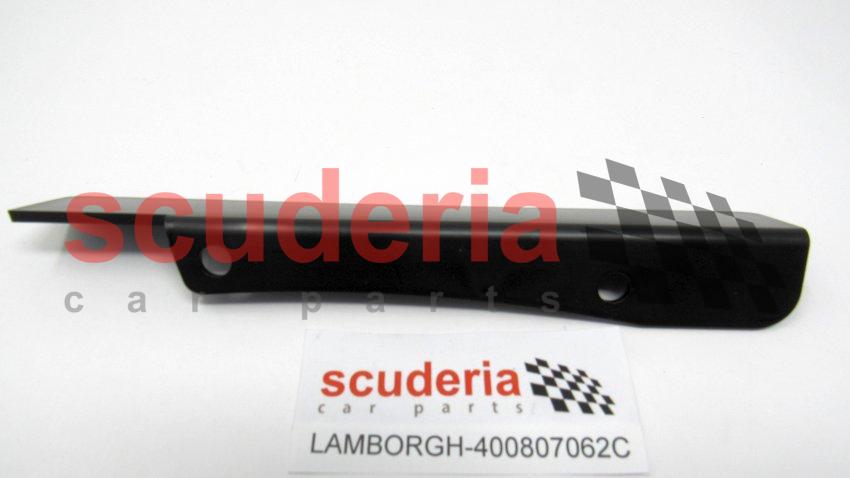

	040	400807062C	Right Spoiler IN	400807062C Right Spoiler IN	$76.46	1	IN
	042	403807193	LH BRACKET	403807193 LH BRACKET	$118.02	1	TO
	043	403807194	RH BRACKET	403807194 RH BRACKET	$37.63	1	TO

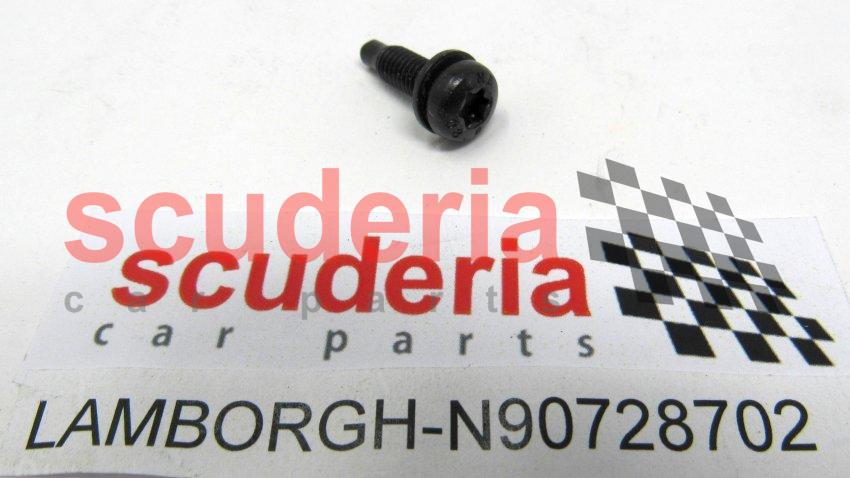

	044	N90728702	Screw M5X16 IN	N90728702 Screw M5X16 IN	$1.24 MSRP: ~~7.30~~ (83% off)	2	IN

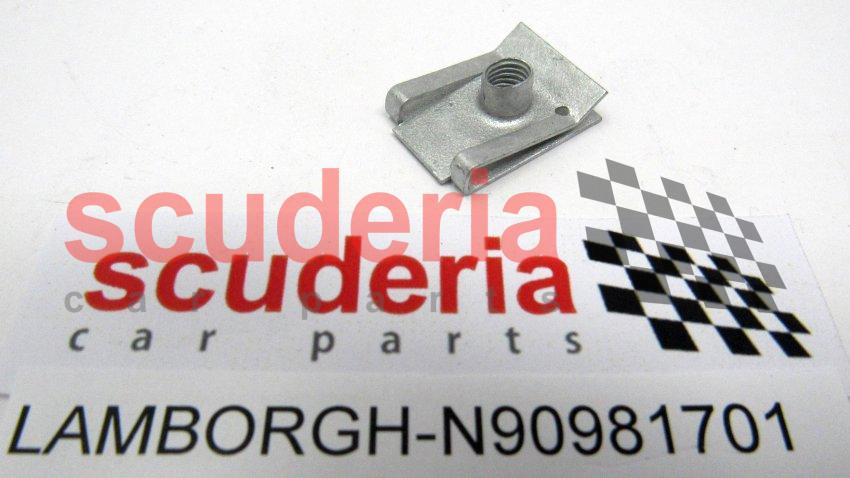

	045	N90981701	Speed Nut (m5x21x15.3-m5x21.0x15.3) IN	N90981701 Speed Nut (m5x21x15.3-m5x21.0x15.3) IN	$1.47 MSRP: ~~7.26~~ (79.8% off)	2	IN

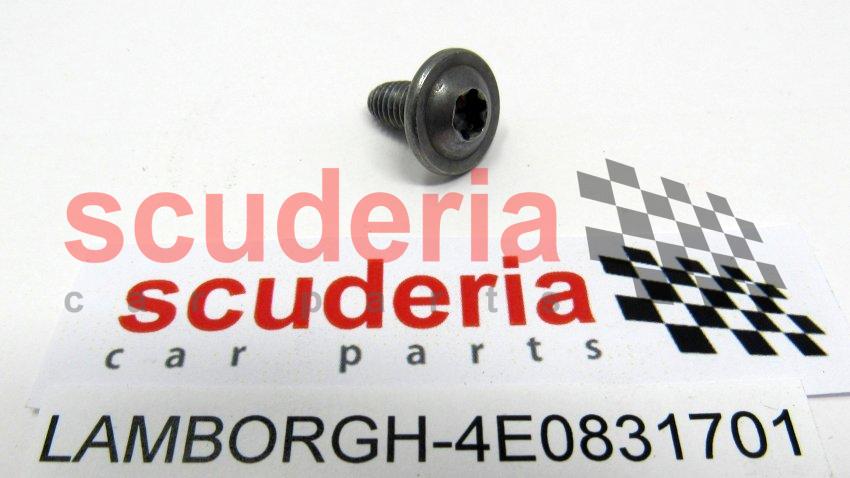

	046	4E0831701	Screw M6X13 IN	4E0831701 Screw M6X13 IN	$1.64	4	IN
