Left Head Timing System 2

Lamborghini Murcielago LP640

부품 찾기
모두 보기

Lamborghini Murcielago LP640 - Left Head Timing System 2

부품 분해도를 보고 원하는 부품을 찾으세요.:
  • 다이어그램을 드래그하여 위치를 변경할 수 있습니다.
  • 다이어그램을 스크롤하거나 핀치하거나 and buttons
  • 부품 다이어그램에서 핫스팟 1을 클릭하여 표에서 부품을 찾을 수 있습니다.
부품 키
IN
재고 있음
AS
곧 도착
TO
주문하기
PE
문의하세요

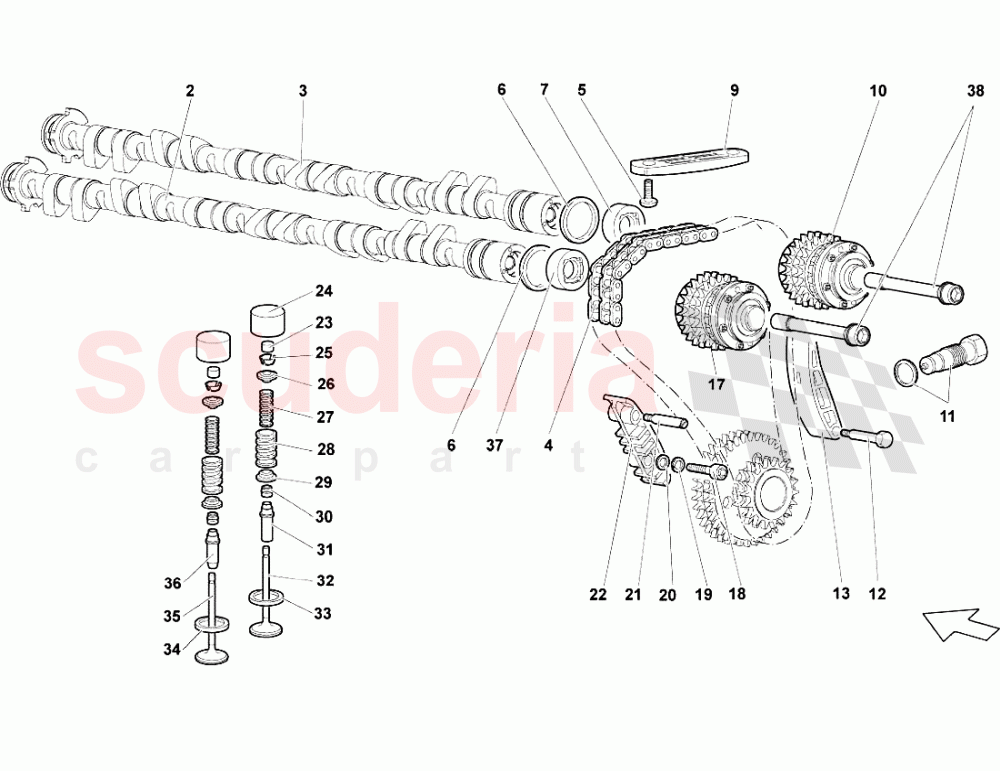

Left Head Timing System 2 of Lamborghini Lamborghini Murcielago LP640 다이어그램 탭하여 확대
# 부품 세부 정보 가격
(각)		 수량
다이어그램		 키 에 추가
장바구니
002 7M109303K
INTAKE CAMSHAFT 		$2,597.38 1
TO
003 7M109305H
EXHAUST CAMSHAFT 		$2,597.38 1
TO
004 7M109231
UPPER TIMING CHAIN 		$160.94 1
TO
005 N90638102
ROUND HD. SCREW
IN 		$2.43 (66.5% off) 1
IN
006 7M109349
SEAL RING 		$49.27 1
TO

7M109423A

SUPPORT

from $1,309.97

009 7M109513
SHOE 		$759.45 1
TO
010 7M109084D
EXHAUST PHASE TRANSFORMER 		$2,420.93 1
TO
011 7M109255
Chain Tightener
IN 		$570.25 1
IN
012 7M109225A
JOURNAL 		$51.38 1
TO
013 7M109508
Shoe
IN 		$246.50 1
IN
017 7M109083C
INTAKE PHASE TRANSFORMER 		$4,107.84 1
TO
018 WHT003071
SCREW 		$6.78 1
TO
019 WHT001397
WASHER 		$0.18 (97.6% off) 1
TO
020 WHT002962
WASHER 14X8.4X1.5
IN 		$0.58 (92.1% off) 1
IN
021 7M109224
JOURNAL 		$54.71 1
TO
022 7M109469
SHOE
IN 		$51.83 1
IN
023 7M109320CA
ADJUSTMENT SHIM (1,85 		$54.07 24
TO
023 7M109320BS
ADJUSTMENT SHIM (1,75 		$54.07 24
TO
023 7M109320BT
ADJUSTMENT SHIM (1,80 		$54.07 24
TO
023 7M109320BR
ADJUSTMENT SHIM (1,70 		$54.07 24
TO
023 7M109320BP
ADJUSTMENT SHIM (1,60 		$54.07 24
TO
023 7M109320CB
ADJUSTMENT SHIM (1,90 		$54.07 24
TO
023 7M109320BQ
ADJUSTMENT SHIM (1,65 		$54.07 24
TO
023 7M109320CN
ADJUSTMENT SHIM (2,45 		$54.07 24
TO
023 7M109320CC
ADJUSTMENT SHIM (1,95 		$54.07 24
TO
023 7M109320CM
ADJUSTMENT SHIM (2,40 		$54.07 24
TO
023 7M109320CP
ADJUSTMENT SHIM (2,50 		$54.07 24
TO
023 7M109320CQ
ADJUSTMENT SHIM (2,55 		$54.07 24
TO
023 7M109320CF
ADJUSTMENT SHIM (2,10 		$52.52 24
TO
023 7M109320CJ
ADJUSTMENT SHIM (2,25 		$52.52 24
TO
023 7M109320CG
ADJUSTMENT SHIM (2,15 		$52.52 24
TO
023 7M109320CE
ADJUSTMENT SHIM (2,05 		$649.37 24
TO
023 7M109320CD
ADJUSTMENT SHIM (2,00 		$54.07 24
TO
023 7M109320CK
ADJUSTMENT SHIM (2,30 		$52.52 24
TO
023 7M109320CL
ADJUSTMENT SHIM (2,35 		$649.37 24
TO
023 7M109320CH
ADJUSTMENT SHIM (2,20 		$52.52 24
TO
024 7M109309A
VALVE CONTROL TAPPET 		$436.22 24
TO
025 36109651B
VALVE COTTER 		$0.31 (95.8% off) 48
TO
026 7M109641A
TAPPET UPPER PLATE 		$48.22 24
TO
027 7M109633B
INNER SPRING 		$12.14 24
TO
028 7M109623B
OUTER SPRING 		$13.41 24
TO
029 7M109642B
TAPPET LOWER PLATE 		$35.00 24
TO
030 57109675
SEAL RING
IN 		$19.21 24
IN
031 7M103416C
EXHAUST VALVE GUIDE 		$155.99 12
TO
032 7M109611A
EXHAUST VALVE 		$119.31 12
TO
033 7M103441A
EXHAUST VALVE SEAT 		$43.83 12
TO
034 7M103431A
INTAKE VALVE SEAT 		$41.59 12
TO
035 7M109601B
INTAKE VALVE 		$96.57 12
TO
036 7M103416B
INTAKE VALVE GUIDE 		$57.74 12
TO
038 7M109177C
SCREW 		$61.94 2
TO
