Doors 2

Lamborghini Murcielago LP640 Roadster

부품 찾기
모두 보기

Lamborghini Murcielago LP640 Roadster - Doors 2

부품 분해도를 보고 원하는 부품을 찾으세요.:
  • 다이어그램을 드래그하여 위치를 변경할 수 있습니다.
  • 다이어그램을 스크롤하거나 핀치하거나 and buttons
  • 부품 다이어그램에서 핫스팟 1을 클릭하여 표에서 부품을 찾을 수 있습니다.
부품 키
IN
재고 있음
AS
곧 도착
TO
주문하기
PE
문의하세요

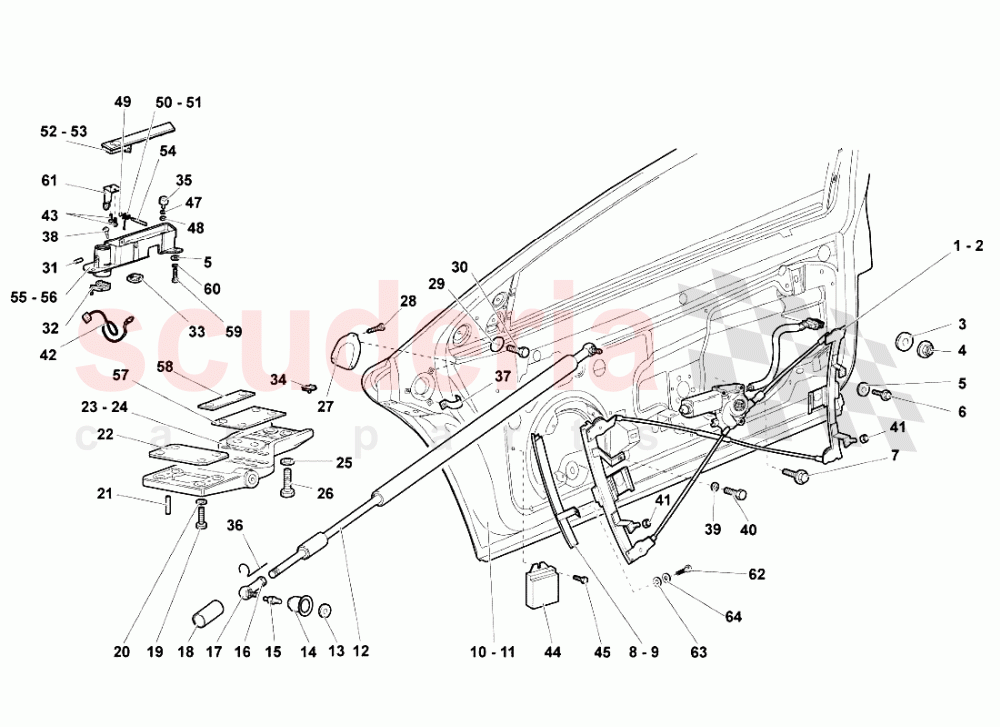

Doors 2 of Lamborghini Lamborghini Murcielago LP640 Roadster 다이어그램 탭하여 확대
# 부품 세부 정보 가격
(각)		 수량
다이어그램		 키 에 추가
장바구니
001 417837397A
LH POWER WINDOW ASSEMBLY 		$1,510.44 1
TO
002 417837398A
RIGHT DOOR POWER WINDOW ASSEMBLY 		$1,510.44 1
TO
003 WHT002961
WASHER
IN 		$0.64 3
IN

N01508213

HEXAGON COLLAR NUT

from $0.37

WHT003040

WASHER 5.3X1.5X15 (FOR BECKER RADIO SYSTEM)

from $7.41

006 N01020717
SCREW M5X12
IN 		$1.19 (83.7% off) 4
IN
007 N91049601
OVAL HEAD PANEL SCREW (COMBI) 		$1.19 (83.7% off) 6
TO
010 417831051
LEFT DOOR FRAME ASSEMBLY 		$10,989.48 1
TO
011 417831052
RIGHT DOOR FRAME ASSEMBLY
(RHD model) 		$10,989.48 1
TO
012 410837987
Door Gas Cylinder
IN 		$130.08 2
IN
013 WHT000771
WASHER
IN 		$2.03 1
IN
014 410837749
RUBBER CAP 		$12.78 2
TO
015 410837646A
JOURNAL 		$9.10 1
TO
016 N01100845
NUT M8X1,25X6,5
IN 		$3.28 1
IN
017 410837262
JACK HEAD 		$8.90 1
TO
018 410837801A
SHEATH
IN 		$2.85 (59.5% off) 1
IN
019 N10208905
SCREW M10X30 		$2.91 4
TO
020 WHT002955
WASHER 		$1.11 (84.6% off) 4
TO
021 N10738601
PIN 		$0.37 2
TO
022 410837983A
1.0 MM SHIM 		$19.92 1
TO
022 410837983B
1.2 MM SHIM 		$16.33 1
TO
022 410837983C
1.5 MM SHIM 		$19.50 1
TO
022 410837983
0.8 MM SHIM 		$17.98 1
TO
023 410831401
LH HINGE 		$1,142.00 1
TO
024 410831402
RH HINGE 		$1,142.00 1
TO
025 N90179103
WASHER 18X8,4X2,5 		$2.67 4
TO
026 N10208906
SCREW M10X30.0 		$4.04 4
TO
027 410867251
ORNAMENT 		$94.43 1
TO
028 N90455205
SCREW M4X10
IN 		$1.24 (82.9% off) 3
IN
031 WHT003370
SCREW 		$0.34 (95.4% off) 2
TO
032 410837061
BOTTOM RING NUT, LH 		$129.85 1
TO
033 410837063
LH UPPER RING NUT 		$184.21 1
TO
034 410972672
SUPPORT 		$0.95 (86.9% off) 2
TO
035 410837549
RUBBER SUPPORT 		$242.11 2
TO
036 410837171
RING
IN 		$0.42 (94.3% off) 2
IN
037 410868630A
SUPPORT 		$57.53 2
TO
038 410837529
RUBBER CAP 		$5.44 2
TO
040 N10718801
HEX COLLARED BOLT 		$1.67 2
TO
042 417971121A
WIRING HARNESS 		$134.54 1
TO
043 WHT003308
SCREW M4X8 (STANDARD) 		$0.87 (88.1% off) 4
TO
044 417959875A
POWER WINDOW CONTROL UNIT 		$643.71 2
TO
045 N90986803
HEXAGON SOCKET HEAD PANEL BOLT
IN 		$1.75 6
IN
047 N10612001
WASHER 		$0.82 2
TO
048 WHT003112
NUT M5 		$0.69 2
TO
049 410863191
RING 		$0.84 (88.4% off) 2
TO
050 410837724
RH SPRING 		$60.36 1
TO
051 410837723
LH SPRING 		$60.36 1
TO
052 410837208AVS
RH HANDLE 		$1,134.95 1
TO
053 410837207AVS
LH HANDLE 		$1,134.95 1
TO
054 410837041
JOURNAL 		$18.42 2
TO
055 410837163
LEFT HANDLE BODY 		$244.22 1
TO
056 410837164
RIGHT HANDLE BODY 		$244.22 1
TO
057 410837984
2.00 ADJUSTMENT SHIM 		$22.65 1
TO
058 410837944A
1.00 ADJUSTMENT SHIM 		$19.06 4
TO
059 WHT003111
SCREW M5X16
IN 		$1.95 (73% off) 3
IN
060 N91109201
WASHER 		$2.67 (54.4% off) 10
TO
061 410837226A
LEVER 		$673.36 2
TO
