Clutch (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

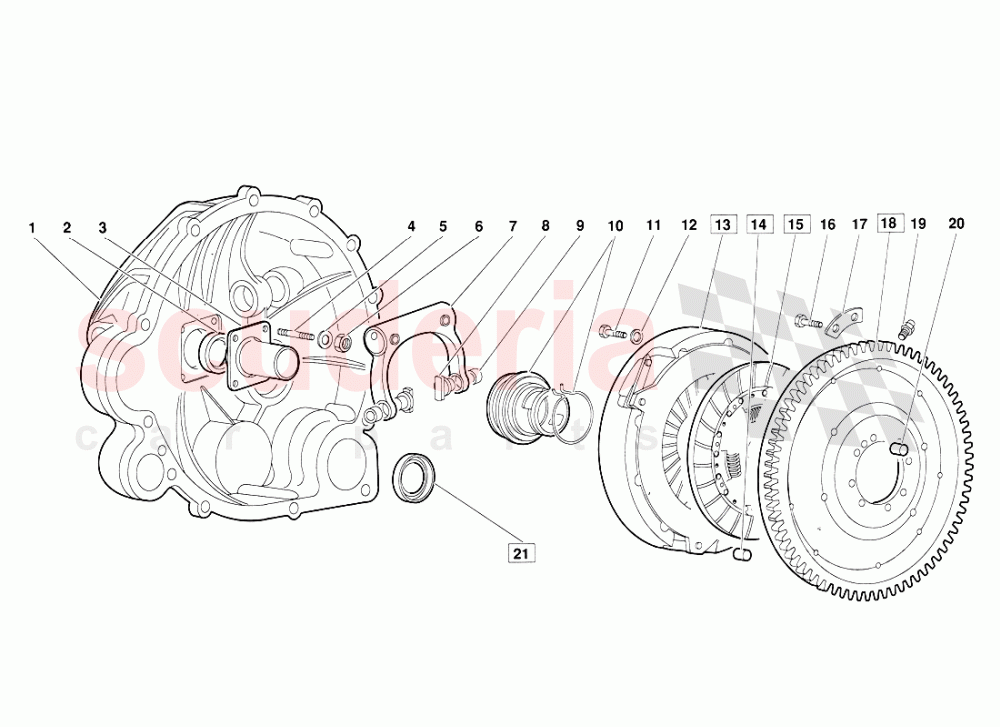

Lamborghini Diablo (1990-1998) - Clutch (Valid for June 1992 Version)

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
001	2424451	CLUTCH BELL HOUSING	2424451 CLUTCH BELL HOUSING (Valid for June 1992 version) CAMPANA FRIZIONE	-	1	PE	문의하기
002	8613206	SEAL	8613206 SEAL (Valid for June 1992 version) ANELLO TENUTA	$19.10 MSRP: ~~20.20~~ (5.4% off)	1	TO
003	2428864	SUPPORT - SUPPORTO REGGISPINTA	2428864 SUPPORT - SUPPORTO REGGISPINTA (Valid for June 1992 version) O REGGISPINTA	$1,830.77	1	TO
004	8300624	STUD	8300624 STUD (Valid for June 1992 version) PRIGIONIERO	$17.10	4	TO
005	8410603	WASHER	8410603 WASHER (Valid for June 1992 version) RONDELLA	$0.06 MSRP: ~~7.39~~ (99.2% off)	4	TO
006	N01100637	NUT M6	N01100637 NUT M6 (Valid for June 1992 version) DADO	$0.34 MSRP: ~~7.29~~ (95.3% off)	4	TO
007	2121341	FORK	2121341 FORK (Valid for June 1992 version) FORCELLA COMANDO FRIZIONE	$1,329.10	1	TO
008	2128866	PAWL	2128866 PAWL (Valid for June 1992 version) NOTTOLINO	$449.55	2	TO
009	8801206	BUSHING	8801206 BUSHING (Valid for June 1992 version) BOCCOLA	$4.77	2	TO
010	2129353	SLEEVE T/OBEARING	2129353 SLEEVE T/OBEARING (Sachs)	$1,381.22	1	TO
011	8100851	SCREW	8100851 SCREW (Valid for June 1992 version) VITE	$0.66	9	TO
012	WHT001514	WASHER IN	WHT001514 WASHER (Valid for June 1992 version) RONDELLA IN	$56.92 MSRP: ~~64.00~~ (11.1% off)	9	IN

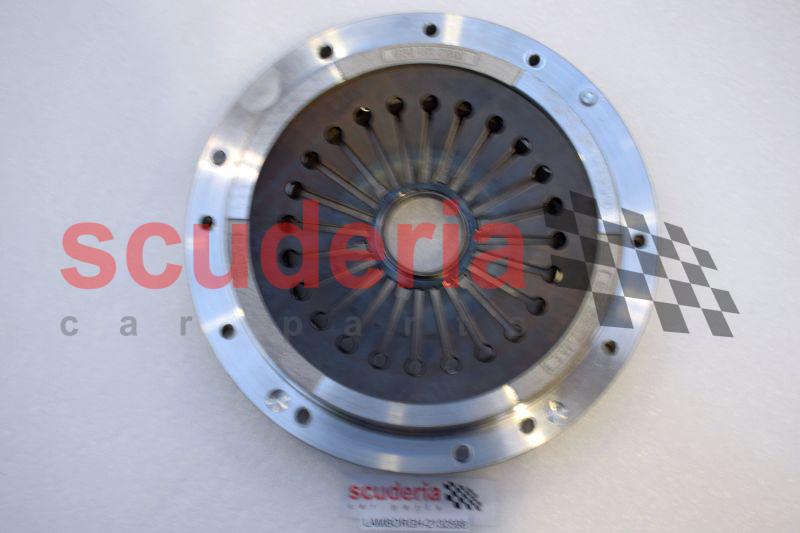

013	2132598	PRESSURE PLATE IN	2132598 PRESSURE PLATE (Sachs) IN	$1,420.29	1	IN
014	2132713	DOWEL	2132713 DOWEL (Valid for June 1992 version) GRAND (dallal 2682)	$24.25	3	TO
015	2132599	CLUTCH DRIVEN	2132599 CLUTCH DRIVEN (Sachs)	$3,244.56	1	TO
016	WHT002951	Screw M8X1,25X23 (Manual) IN	WHT002951 Screw M8X1,25X23 (Manual) (Valid for June 1992 version) VITE IN	$20.95	8	IN
017	410141179	Plate IN	410141179 Plate IN	$65.93	4	IN
018	2131489	FLYWHEEL	2131489 FLYWHEEL (Valid for June 1992 version) VOLANO CON PIOLI (fino alia 12681)	-	1	PE	문의하기
018	2132714	FLYWHEEL WITH PINS	2132714 FLYWHEEL WITH PINS (Valid for June 1992 version) VOLANO CON PIOLI (dalla 12682) (Particolare intercambiabile)	$1,772.13	1	TO
019	7M105357	PIN	7M105357 PIN	$51.68	6	TO
020	8850806	DOWEL	8850806 DOWEL (Valid for June 1992 version) GRANO	-	1	PE	문의하기
021	8613005	SEAL	8613005 SEAL (Valid for June 1992 version) ANELLO TENUTA (errata corrige)	$62.63	1	TO
