Right Cylinder Head of Lamborghini Lamborghini Diablo SV (1995-1997)

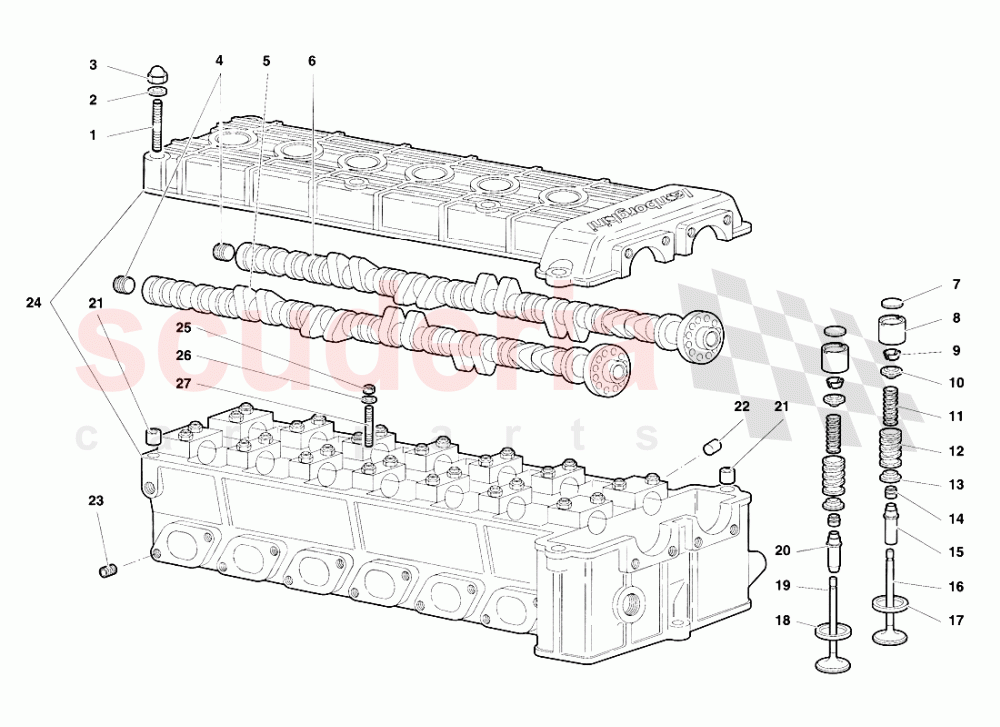

Lamborghini Diablo SV (1995-1997) - Right Cylinder Head

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	001	8300650	STUD BOLT	8300650 STUD BOLT PRIGIONIERO	$11.87 MSRP: ~~12.55~~ (5.4% off)	1	TO
	8410602		WASHER	from $46.69
002 WASHER IN $46.69 1 IN 026 WASHER IN $46.69 28 IN
	003	8200605	NUT	8200605 NUT DADO	$2.98	1	TO
	004	8931409	PLUG	8931409 PLUG TAPPO	$12.19 MSRP: ~~12.85~~ (5.1% off)	2	TO
	005	1232709	CAMSHAFT IN	1232709 CAMSHAFT ASSE A CAMME SCARICO TESTA DX IN	$16,873.62	1	IN
	006	1232708	CAMSHAFT	1232708 CAMSHAFT ASSE A CAMME ASP. TESTA DX	$1,628.80	1	TO
	007	1220901	SHIM	1220901 SHIM SPESSORE Dl REGISTRO 4.45 MM	-	24	PE	문의하기
	007	1220882	SHIM	1220882 SHIM SPESSORE Dl REGISTRO 3.50 MM	-	24	PE	문의하기
	007	1220900	SHIM	1220900 SHIM SPESSORE Dl REGISTRO 4.40 MM	-	24	PE	문의하기
	007	1220886	SHIM	1220886 SHIM SPESSORE Dl REGISTRO 3.70 MM	-	24	PE	문의하기
	007	1220887	SHIM	1220887 SHIM SPESSORE Dl REGISTRO 3.75 MM	-	24	PE	문의하기
	007	1220878	SHIM	1220878 SHIM SPESSORE Dl REGISTRO 3.30 MM	-	24	PE	문의하기
	007	1220893	SHIM	1220893 SHIM SPESSORE Dl REGISTRO 4.05 MM	-	24	PE	문의하기
	007	1220881	SHIM	1220881 SHIM SPESSORE Dl REGISTRO 3.45 MM	-	24	PE	문의하기
	007	1220905	SHIM	1220905 SHIM SPESSORE Dl REGISTRO 4.65 MM	-	24	PE	문의하기
	007	1220903	SHIM	1220903 SHIM SPESSORE Dl REGISTRO 4.55 MM	-	24	PE	문의하기
	007	1220904	SHIM	1220904 SHIM SPESSORE Dl REGISTRO 4.60 MM	-	24	PE	문의하기
	007	1220906	SHIM	1220906 SHIM SPESSORE Dl REGISTRO 4.70 MM	-	24	PE	문의하기
	007	1220884	SHIM	1220884 SHIM SPESSORE Dl REGISTRO 3.60 MM	-	24	PE	문의하기
	007	1220883	SHIM	1220883 SHIM SPESSORE Dl REGISTRO 3.55 MM	-	24	PE	문의하기
	007	1220892	Valve shims	1220892 Valve shims 4.00 MM	-	24	PE	문의하기
	007	7M109320N	3.90 MM ADJUSTMENT SHIM	7M109320N 3.90 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.90 MM	$55.19	24	TO
	007	1220885	SHIM	1220885 SHIM SPESSORE Dl REGISTRO 3.65 MM	-	24	PE	문의하기
	007	1220895	SHIM	1220895 SHIM SPESSORE Dl REGISTRO 4.15 MM	-	24	PE	문의하기
	007	7M109320S	4.10 MM ADJUSTMENT SHIM	7M109320S 4.10 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 4.10 MM	$55.19	24	TO
	007	1220902	SHIM	1220902 SHIM SPESSORE Dl REGISTRO 4.50 MM	-	24	PE	문의하기
	007	1220896	SHIM	1220896 SHIM SPESSORE Dl REGISTRO 4.20 MM	-	24	PE	문의하기
	007	1220879	SHIM	1220879 SHIM SPESSORE Dl REGISTRO 3.35 MM	-	24	PE	문의하기
	007	1220877	SHIM	1220877 SHIM SPESSORE Dl REGISTRO 3.25 MM	-	24	PE	문의하기
	007	1220897	SHIM	1220897 SHIM SPESSORE Dl REGISTRO 4.25 MM	-	24	PE	문의하기
	007	1220880	SHIM	1220880 SHIM SPESSORE Dl REGISTRO 3.40 MM	-	24	PE	문의하기
	007	1220891	SHIM	1220891 SHIM SPESSORE Dl REGISTRO 3.95 MM	-	24	PE	문의하기
	007	1220899	SHIM	1220899 SHIM SPESSORE Dl REGISTRO 4.35 MM	-	24	PE	문의하기
	007	1220898	SHIM	1220898 SHIM SPESSORE Dl REGISTRO 4.30 MM	-	24	PE	문의하기
	007	7M109320M	3.85 MM ADJUSTMENT SHIM	7M109320M 3.85 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.85 MM	$11.17	24	TO
	007	7M109320L	3.80 MM ADJUSTMENT SHIM	7M109320L 3.80 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.80 MM	$55.19	24	TO
	008	7M109309	VALVE CONTROL TAPPET	7M109309 VALVE CONTROL TAPPET PUNTERIA	$36.37	24	TO
	009	1220843	TAPPET LOCK CONE	1220843 TAPPET LOCK CONE (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) SEMICONO PUNTERIE (EATON)	$7.57	48	TO
	009	1235955	TAPPET LOCK CONE	1235955 TAPPET LOCK CONE (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) SEMICONO PUNTERIE (TRW)	-	48	PE	문의하기
	010	7M109641	TAPPET UPPER PLATE	7M109641 TAPPET UPPER PLATE	$18.92	24	TO
	011	7M109633A	INNER SPRING	7M109633A INNER SPRING MOLLA INTERNA	$6.13	24	TO
	012	7M109623A	OUTER SPRING	7M109623A OUTER SPRING MOLLA ESTERNA	$18.92	24	TO
	013	1220993	TAPPET PLATE	1220993 TAPPET PLATE PIATTELLO PUNTERIA INFERIORE	-	24	PE	문의하기
	014	7M109675	SEAL RING	7M109675 SEAL RING	$15.60	48	TO
	015	1229717	VALVE GUIDE	1229717 VALVE GUIDE GUIDA VALVOLA ASPIRAZIONE	$142.70	12	TO
	016	7M109601	INTAKE VALVE	7M109601 INTAKE VALVE (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) VALVOLA ASPIRAZIONE (TRW)	$71.87	12	TO
	016	1224996	VALVE	1224996 VALVE (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) VALVOLA ASPIRAZIONE (EATON)	$55.58	12	TO
	018	1225001	VALVE SEAT	1225001 VALVE SEAT SEDE VALVOLA SCARICO	-	12	PE	문의하기
	019	7M109611	EXHAUST VALVE	7M109611 EXHAUST VALVE (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.)VALVOLA SCARICO (TRW)	$103.21	12	TO
	019	1224997	EXHAUST VALVE	1224997 EXHAUST VALVE (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) VALVOLA SCARICO (EATON)	$549.89	12	TO
	020	1229718	VALVE GUIDE	1229718 VALVE GUIDE GUIDA VALVOLA SCARICO	$142.70	12	TO
	021	8800604	BUSHING	8800604 BUSHING BOCCOLA	-	2	PE	문의하기
	022	1122089	DOWEL	1122089 DOWEL GRAND PER COLLETTORE ASP.	$16.62 MSRP: ~~17.60~~ (5.6% off)	2	TO
	023	8840802	HELI-COIL	8840802 HELI-COIL	$3.14 MSRP: ~~3.25~~ (3.4% off)	24	TO
	024	463400350	CYLINDER HEAD	463400350 CYLINDER HEAD TESTA DESTRA LAVORATA	$10,867.32	1	TO
	025	N01100637	NUT M6	N01100637 NUT M6 DADO	$0.34 MSRP: ~~7.29~~ (95.3% off)	28	TO
	027	8300640	STUD	8300640 STUD PRIGIONIERO	$16.76	28	TO
