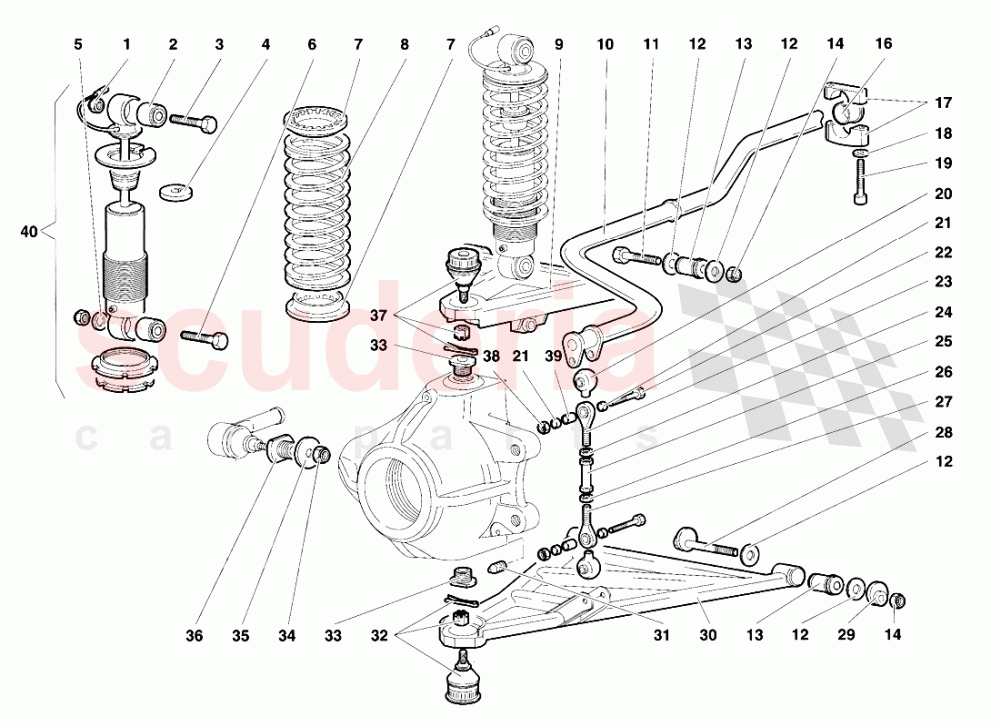

Front Suspension of Lamborghini Lamborghini Diablo VT (1993-1998)

Lamborghini Diablo VT (1993-1998) - Front Suspension

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	WHT003355		NUT M12X1,25	from $15.59
001 NUT M12X1,25 $15.59 4 TO 014 NUT M12X1,25 $15.59 8 TO
	002	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$611.82	4	TO
	003	8101259	SCREW	8101259 SCREW VITE	$15.31	2	TO
	004	5134315	SPACER	5134315 SPACER DISTANZIALE	$35.58 MSRP: ~~36.30~~ (2% off)	2	TO
	005	8401234	WASHER	8401234 WASHER RONDELLA	$1.69 MSRP: ~~7.11~~ (76.2% off)	12	TO
	006	5133229	SCREW	5133229 SCREW VITE	$7.52 MSRP: ~~7.70~~ (2.3% off)	2	TO
	007	410512385	RUBBER RING	410512385 RUBBER RING	$55.53	4	TO
	008	5133618	SPRING	5133618 SPRING MOLLA	$196.11 MSRP: ~~206.50~~ (5% off)	2	TO
	009	5133344	ARM	5133344 ARM BRACCIO SUPERIORE DX	$1,657.04	1	TO
	009	5133345	ARM	5133345 ARM BRACCIO SUPERIORE SX	$1,740.65	1	TO
	010	5134392	TORSION BAR	5134392 TORSION BAR BARRA TORSIONE	$931.66 MSRP: ~~950.00~~ (1.9% off)	1	TO
	011	8101269	SCREW	8101269 SCREW VITE	$5.25	4	TO
	012	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM DISTANZIALE 2 MM	$6.59	1	TO
	012	410407295D	WASHER	410407295D WASHER DISTANZIALE 3 MM	$29.38	1	TO
	012	5133488	SHIM	5133488 SHIM DISTANZIALE 1 ,5 MM	$3.37	1	TO
	012	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM DISTANZIALE 1 MM	$4.46	1	TO
	012	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM DISTANZIALE 2,5	$7.28	1	TO
	013	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	$52.30	8	TO
	016	5238302	BUSHING	5238302 BUSHING BOCCOLA	$146.00	2	TO
	017	5230258	RETAINER	5230258 RETAINER CAVALLOTTO	$307.53	2	TO
	018	8410602	WASHER IN	8410602 WASHER RONDELLA IN	$46.69	4	IN
	019	8700609	SCREW	8700609 SCREW VITE	$0.53 MSRP: ~~7.31~~ (92.7% off)	4	TO
	020	5109714	BOOT	5109714 BOOT CAPPUCCIO	$26.02	4	TO
	021	5227297	BUSHING	5227297 BUSHING BOCCOLA	$32.01	8	TO
	022	8100810	SCREW	8100810 SCREW VITE	-	4	PE	문의하기
	023	417801931A	BALL JOINT	417801931A BALL JOINT GIUNTO SFERICO	$254.09	2	TO
	024	8201014	NUT	8201014 NUT DADO	$6.07	2	TO
	025	6209770	TIE ROD	6209770 TIE ROD TIRANTE	-	2	PE	문의하기
	026	8201016	NUT	8201016 NUT DADO	$22.48	2	TO
	027	5227295	BALL JOINT	5227295 BALL JOINT GIUNTO SFERICO	$150.19	2	TO
	410407127A		BOLT	from $993.80
028 BOLT $993.80 4 TO 029 BOLT $993.80 4 TO
	030	5133039	ARM	5133039 ARM BRACCIO INFERIORE SX	$1,290.65	1	TO
	030	5133038	ARM	5133038 ARM BRACCIO INFERIORE DX	$1,290.65	1	TO
	031	8700606	SCREW	8700606 SCREW VITE	$0.60 MSRP: ~~7.27~~ (91.7% off)	4	TO
	032	410407361B	COUPLING	410407361B COUPLING TESTA A SNODO	$1,246.47	2	TO
	033	410407171C	BUSH	410407171C BUSH BUSSOLA	$664.87	4	TO
	034	8201003	NUT	8201003 NUT DADO	$3.53	2	TO
	035	WHT000919	WASHER	WHT000919 WASHER	$14.83	2	TO
	036	5129541	BUSHING	5129541 BUSHING BUSSOLA	$46.85	2	TO
	037	410407365	Coupling IN	410407365 Coupling TESTA A SNODO IN	$259.74	2	IN
	038	8200804	NUT M8	8200804 NUT M8 DADO	$1.98 MSRP: ~~7.28~~ (72.8% off)	4	TO
	039	5227298	BUSHING	5227298 BUSHING BOCCOLA	$17.39 MSRP: ~~17.80~~ (2.3% off)	4	TO
	040	5133165	SHOCK ABSORBER	5133165 SHOCK ABSORBER AMMORTIZZATORE ANTERIORE	-	2	PE	문의하기
