Rear Suspension of Lamborghini Lamborghini Diablo VT (1993-1998)

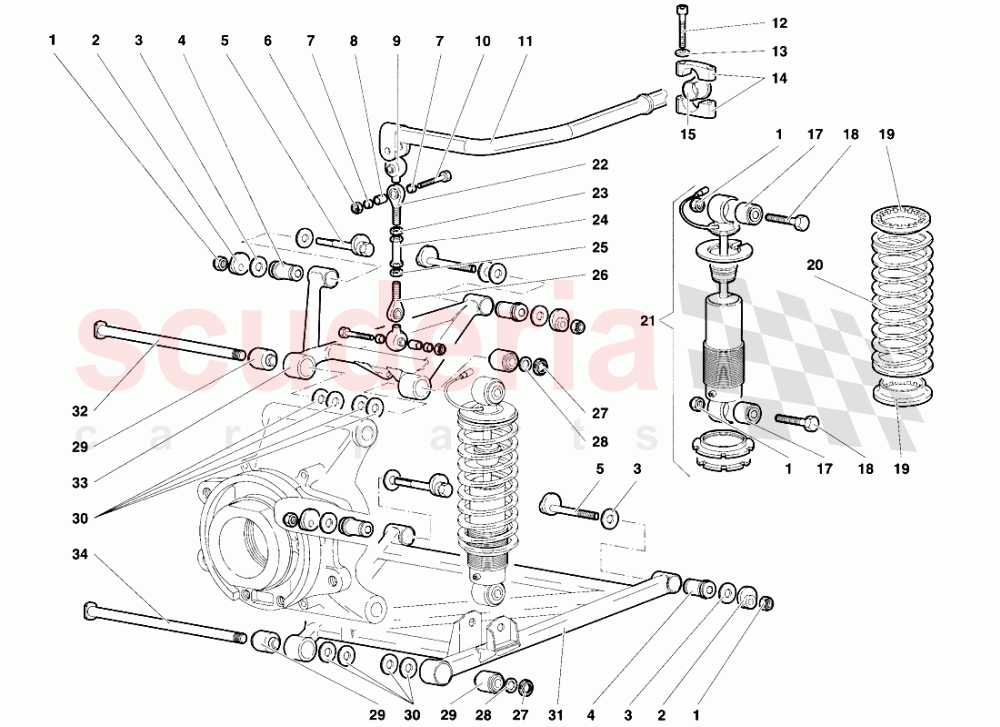

Lamborghini Diablo VT (1993-1998) - Rear Suspension

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키	에 추가 장바구니
	001	WHT003355	NUT M12X1,25	WHT003355 NUT M12X1,25 DADO	$15.59	8	TO
	001	8201226	NUT	8201226 NUT See also WHT003355	$1.43	1	TO
	410407127A		BOLT	from $993.80
002 BOLT $993.80 8 TO 005 BOLT $993.80 8 TO
	003	410407295D	WASHER	410407295D WASHER SPESSORE 3 MM	$29.38	1	TO
	003	5133488	SHIM	5133488 SHIM SPESSORE 1 ,5 MM	$3.37	1	TO
	003	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM SPESSORE1MM	$4.46	1	TO
	003	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM SPESSORE 2,5 MM	$7.28	1	TO
	003	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM SPESSORE2MM	$6.59	1	TO
	004	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	$52.30	8	TO
	006	8200804	NUT M8	8200804 NUT M8 DADO	$1.98 MSRP: ~~7.28~~ (72.8% off)	4	TO
	007	5227297	BUSHING	5227297 BUSHING BOCCOLA	$32.01	8	TO
	008	5227298	BUSHING	5227298 BUSHING BOCCOLA	$17.39 MSRP: ~~17.80~~ (2.3% off)	4	TO
	009	5109714	BOOT	5109714 BOOT CAPPUCCIO	$26.02	4	TO
	010	8100810	SCREW	8100810 SCREW VITE	-	4	PE	문의하기
	011	5234393	TORSION BAR	5234393 TORSION BAR BARRA TORSIONE	$493.85 MSRP: ~~505.00~~ (2.2% off)	1	TO
	012	8700609	SCREW	8700609 SCREW VITE	$0.53 MSRP: ~~7.31~~ (92.7% off)	4	TO
	013	8410602	WASHER IN	8410602 WASHER RONDELLA IN	$46.69	4	IN
	014	5230258	RETAINER	5230258 RETAINER CAVALLOTTO	$307.53	2	TO
	015	5238302	BUSHING	5238302 BUSHING BOCCOLA	$146.00	2	TO
	017	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$611.82	8	TO
	018	8101259	SCREW	8101259 SCREW VITE	$15.31	8	TO
	019	410512385	RUBBER RING	410512385 RUBBER RING	$55.53	8	TO
	020	5226157	SPRING	5226157 SPRING MOLLA	$376.57 MSRP: ~~398.00~~ (5.4% off)	4	TO
	021	5233166	SHOCK ABSORBER (lifting system)	5233166 SHOCK ABSORBER (lifting system) use part number 0R1320014 kit	-	4	PE	문의하기
	022	417801931A	BALL JOINT	417801931A BALL JOINT GIUNTO SFERICO	$254.09	2	TO
	023	8201016	NUT	8201016 NUT DADO	$22.48	2	TO
	024	5209770	TIE ROD	5209770 TIE ROD TIRANTE	$112.98 MSRP: ~~115.00~~ (1.8% off)	2	TO
	025	8201014	NUT	8201014 NUT DADO	$6.07	2	TO
	026	5227295	BALL JOINT	5227295 BALL JOINT GIUNTO SFERICO	$150.19	2	TO
	027	8251702	PLUG	8251702 PLUG GHIERA	$5.01	4	TO
	028	8401708	WASHER	8401708 WASHER RONDELLA	$2.40 MSRP: ~~2.55~~ (5.9% off)	4	TO
	029	5225207	RESILIENT BUSHING	5225207 RESILIENT BUSHING BOCCOLA ELASTICA	$448.46	8	TO
	030	8401710	WASHER	8401710 WASHER RONDELLA	$41.04	24	TO
	031	5225907	ARM	5225907 ARM BRACCIO INFERIORE SX	$1,953.47	1	TO
	031	5225906	ARM	5225906 ARM BRACCIO INFERIORE DX	$1,968.66	1	TO
	032	5225204	PIN	5225204 PIN PERNO	$90.83 MSRP: ~~92.50~~ (1.8% off)	2	TO
	033	5225908	RH UPPER SUSPENSION ARM	5225908 RH UPPER SUSPENSION ARM	$2,363.93	1	TO
	033	5225909	ARM	5225909 ARM BRACCIO SUPERIORE SX	$2,705.98	1	TO
	034	5225205	PIN	5225205 PIN PERNO	$90.83 MSRP: ~~92.50~~ (1.8% off)	2	TO
