Oil System 2 of Lamborghini Lamborghini Huracan LP640 Performante Coupe

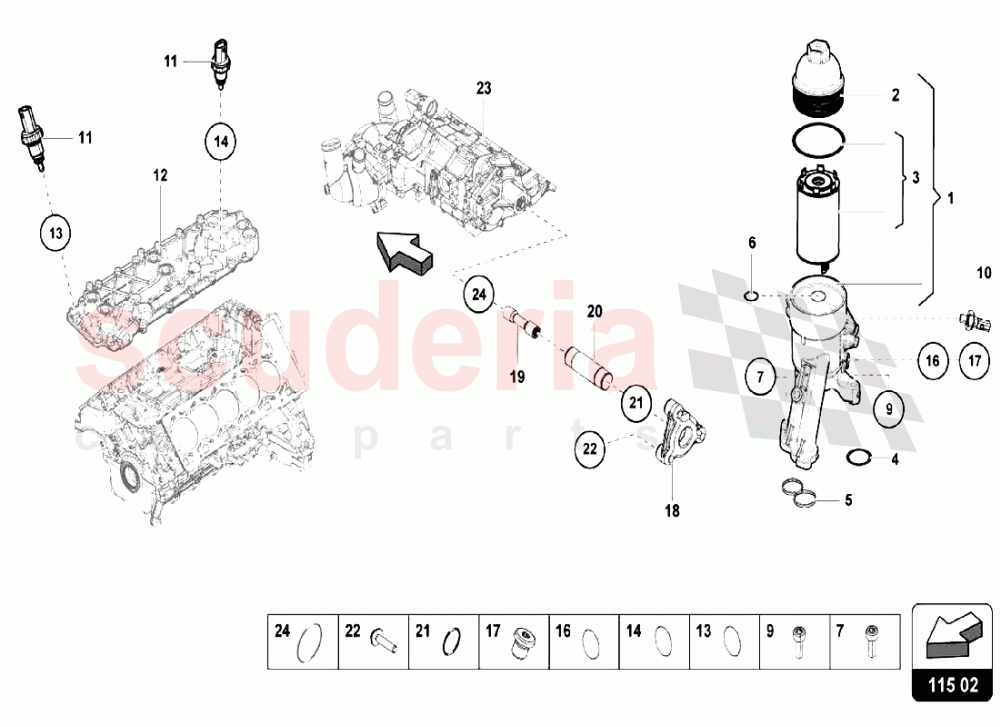

Lamborghini Huracan LP640 Performante Coupe - Oil System 2

부품 분해도를 보고 원하는 부품을 찾으세요.:

다이어그램을 드래그하여 위치를 변경할 수 있습니다.
다이어그램을 스크롤하거나 핀치하거나 and buttons

부품 다이어그램에서 핫스팟 클릭하여 표에서 부품을 찾을 수 있습니다.

부품 키

재고 있음

곧 도착

주문하기

문의하세요

다이어그램 탭하여 확대

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

	#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키
	001	7L115401F	Oil Filter Bracket	7L115401F Oil Filter Bracket	$508.19	1	TO
	002	79115433D	End Cap	79115433D End Cap	$97.43	1	TO
	003	79198405E	Filter Element With Gasket IN	79198405E Filter Element With Gasket IN	$89.70	1	IN
	004	N10538201	O-ring (19x3,55) IN	N10538201 O-ring (19x3,55) IN	$7.66	1	IN
	005	79103121BE	Seal IN	79103121BE Seal IN	$17.41	1	IN
	N0138063		SEAL RING (10X14)	from $4.19
006 Seal Ring (10x14) IN $4.19 1 IN 016 Seal Ring (10x14) IN $4.19 1 IN
	007	N10622101	Oval Hexagon Socket Head Bolt (m6x65)	N10622101 Oval Hexagon Socket Head Bolt (m6x65)	$1.50 MSRP: ~~7.21~~ (79.2% off)	2	TO
	009	N91124501	Hexagon Socket Head Bolt (m8x40)	N91124501 Hexagon Socket Head Bolt (m8x40)	$6.13	2	TO
	010	79919081	Oil Pressure Switch (1 Pin Black M10x1) IN	79919081 Oil Pressure Switch (1 Pin Black M10x1) IN	$24.86	1	IN
	011	59919523A	Temperature Sensor	59919523A Temperature Sensor	$68.32	2	TO
	013	WHT002287B	O-ring (for Water Temperature Sensor-black)	WHT002287B O-ring (for Water Temperature Sensor-black)	$4.59	1	TO
	014	WHT002287C	O-ring (for Oil Temperature Sensor-5,6x2)	WHT002287C O-ring (for Oil Temperature Sensor-5,6x2)	$5.02	1	TO
	017	N91119401	Sealing Plug (m10x1x10) IN	N91119401 Sealing Plug (m10x1x10) IN	$5.72	2	IN
	018	7L103707B	Cover IN	7L103707B Cover IN	$84.21	1	IN
	019	7L115138H	Coupling IN	7L115138H Coupling IN	$188.59	1	IN
	020	7L115467B	Pipe 도착	7L115467B Pipe 도착	$26.74	1	AS
	021	WHT008700	O-RING IN	WHT008700 O-RING IN	$3.90	1	IN
	022	N10704501	Oval Hexagon Socket Head Bolt (m6x35) IN	N10704501 Oval Hexagon Socket Head Bolt (m6x35) IN	$1.92 MSRP: ~~7.25~~ (73.5% off)	1	IN
