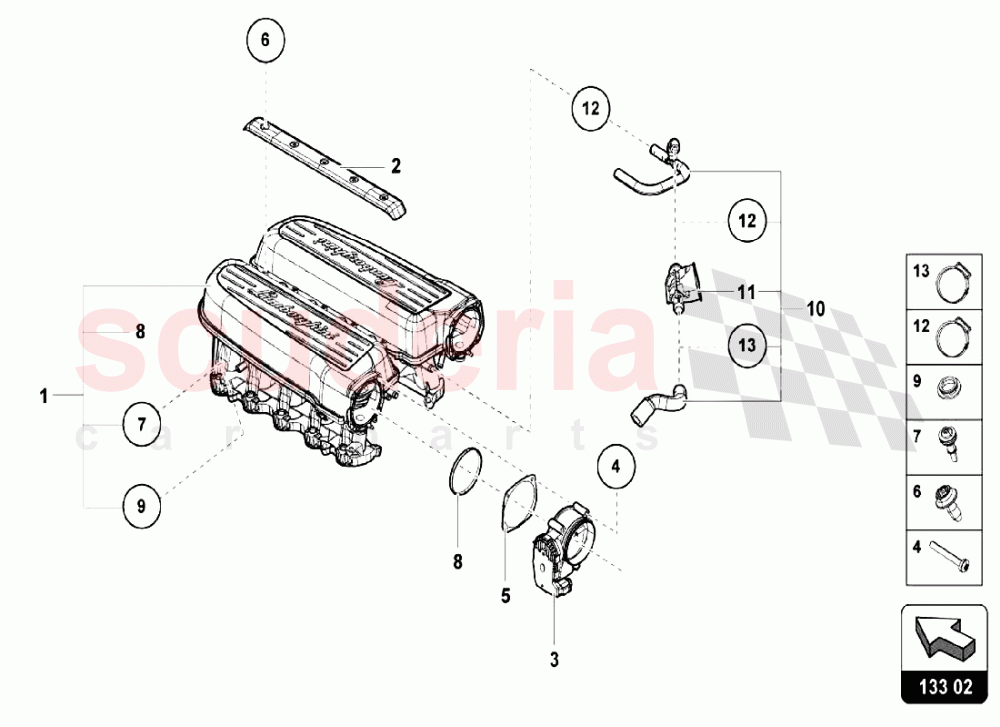

부품 분해도를 보고 원하는 부품을 찾으세요.:

부품 키

재고 있음

곧 도착

주문하기

문의하세요

0 부품 ($0.00)

경고: 항목에 대해 동일한 부품의 여러 이형 상품을 선택할 수 있습니다:

#	부품 번호	부품 설명	부품 세부 정보	가격 (각)	수량 다이어그램	키
001	7L133185AH	Intake Manifold	7L133185AH Intake Manifold	$1,828.05	1	TO
002	7L133920B	Cover For Intake Manifold	7L133920B Cover For Intake Manifold	$402.44	1	TO
003	7L133062G	Throttle Valve Adapter	7L133062G Throttle Valve Adapter	$841.32	2	TO
004	N10405702	Hexagon Socket Head Bolt (m6x45) IN	N10405702 Hexagon Socket Head Bolt (m6x45) IN	$3.69	8	IN
005	7L133920D	Seal	7L133920D Seal	$9.47	2	TO
006	WHT003265	Flat Head Multi-point Socket Bolt	WHT003265 Flat Head Multi-point Socket Bolt	$7.28	5	TO
007	7L133588	Hexagon Socket Fillister Head Screw With Spacer Sleeve (upper) IN	7L133588 Hexagon Socket Fillister Head Screw With Spacer Sleeve (upper) IN	$33.33	12	IN
008	7L133073F	Seal IN	7L133073F Seal IN	$28.00	2	IN
009	7L133588B	Damping Sleeve IN	7L133588B Damping Sleeve IN	$9.50	12	IN
010	420133750	Suction Jet Pump With Hose	420133750 Suction Jet Pump With Hose	$159.51	1	TO
011	79133753	Suction Jet Pump	79133753 Suction Jet Pump	$29.51	1	TO
012	N10201801	Clamp (21x7x0,6)	N10201801 Clamp (21x7x0,6)	$1.71 MSRP: ~~7.14~~ (76.1% off)	5	TO
013	N10255501	Ear Crimp Hose Clamp (17,5x7x0,6)	N10255501 Ear Crimp Hose Clamp (17,5x7x0,6)	$2.40 MSRP: ~~7.03~~ (65.9% off)	1	TO
